Cluster
PSZ2G215.61+22.61
Emission Measure Profiles

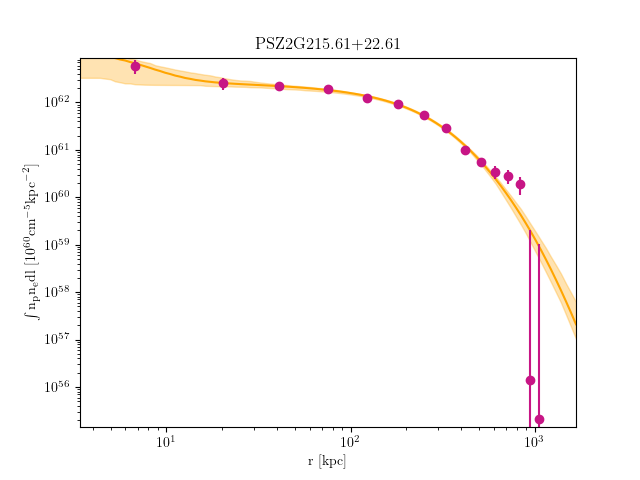

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G215.61+22.61_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.081312279566196 | 3.707495315 | 0.3968830809 | 2.7737989550001824e-05 | 2.0003126230001313e-05 | 3.712480660000244e-05 |
| 7.081312279566196 | 14.074081580444945 | 3.707495315 | 0.3968830809 | 3.587230750000188e-05 | 2.6625847750001397e-05 | 4.6782252000002456e-05 |
| 14.074081580444945 | 28.49902598826314 | 3.707495315 | 0.3968830809 | 0.00012638905160000395 | 0.0001087207136000034 | 0.00014572646260000455 |
| 28.49902598826314 | 49.806790144181974 | 3.717687943 | 0.3834780512 | 0.00030264712060001345 | 0.0002744561031000122 | 0.00033250752110001476 |
| 49.806790144181974 | 77.44801868936268 | 4.055210317 | 0.2560097577 | 0.0004109842627000215 | 0.0003777155194000197 | 0.0004459380819000233 |
| 77.44801868936268 | 110.87335626496635 | 4.148518288 | 0.164392037 | 0.0005463273934000175 | 0.0005064540852000162 | 0.000587932130900019 |
| 110.87335626496635 | 149.5334475121543 | 4.104764738 | 0.08607843588 | 0.0005216692446538657 | 0.0004774677729816204 | 0.000568011258082309 |
| 149.5334475121543 | 192.8789370720876 | 3.977254549 | 0.01415342481 | 0.000412641987824059 | 0.00036969382193266027 | 0.00045789088243341206 |
| 192.8789370720876 | 240.36046958592746 | 3.795028926 | 1 | 0.00019328598533396125 | 0.00016388829940811614 | 0.00022449732499345062 |
| 240.36046958592746 | 291.4286896948353 | 3.579039755 | 1 | 0.00014158475568473044 | 0.0001142549395649575 | 0.00017076005709357788 |
| 291.4286896948353 | 345.53424203997196 | 3.347685104 | 1 | 0.00011294456419163679 | 8.238834599317432e-05 | 0.0001456087754503691 |
| 345.53424203997196 | 402.12777126249875 | 3.115095285 | 1 | 0.00011103159771488112 | 7.809236745348642e-05 | 0.00014616617204607534 |
| 402.12777126249875 | 460.6599220035769 | 2.909429444 | 1 | 8.92335678843548e-05 | 5.5333740816760584e-05 | 0.00012539821498614177 |
| 460.6599220035769 | 520.581338904368 | 2.909429444 | 1 | 7.77314174142114e-09 | 0.0 | 2.267997286602453e-05 |
| 520.581338904368 | 581.3426666060324 | 2.909429444 | 1 | 1.3355238396415037e-09 | 0.0 | 1.3090014753522563e-05 |
Temperature Profiles

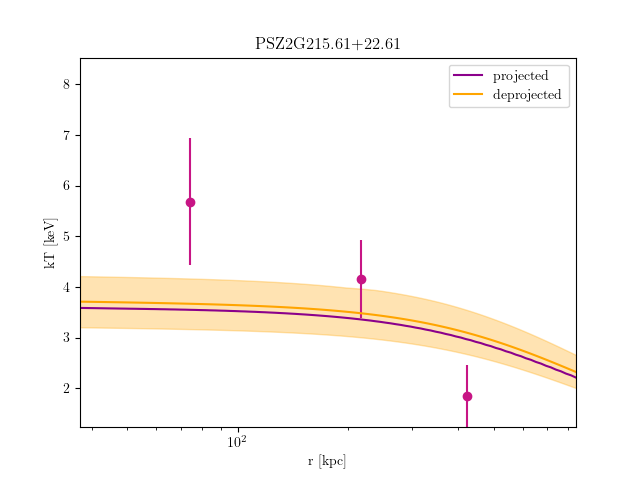

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G215.61+22.61_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 77.4480186893608 | 5.685596001 | 4.705411608 | 6.982674682 | 0.4737910646 | 0.2458831906 | 0.7691814618 | 0.0007725480239 | 0.0007029820244 | 0.000846489355 |
| 77.4480186893608 | 149.53344751215064 | 4.158630672 | 3.709731989 | 4.800632695 | 1.240901283e-06 | 0 | 0.0781887302 | 0.001124821547 | 0.001027064444 | 0.001213772655 |
| 149.53344751215064 | 291.4286896948282 | 1.842857591 | 1.594603233 | 2.186660005 | 1.458435582e-16 | 0 | 0.04490001474 | 0.001395919098 | 0.001187629009 | 0.001619717336 |
