Cluster
PSZ2G219.88+22.83
Emission Measure Profiles

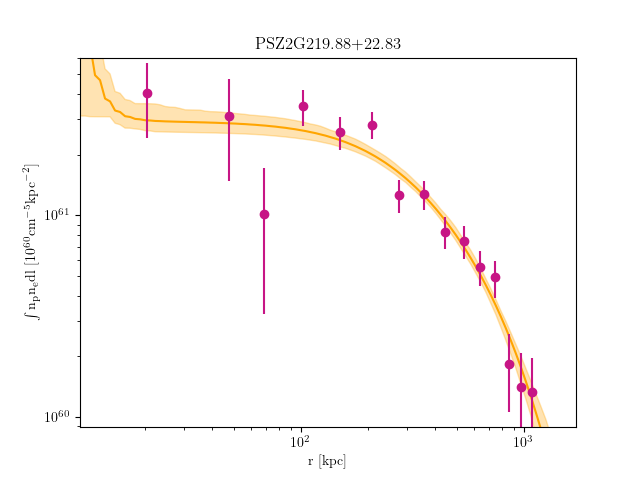

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G219.88+22.83_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 22.431914236792696 | 8.450848459 | 0.2810585758 | 2.0169179900001345e-05 | 1.304942129000087e-05 | 2.8859324580001923e-05 |
| 22.431914236792696 | 29.770901654671604 | 8.450848459 | 0.2810585758 | 1.1869481080000412e-05 | 6.5042387470002265e-06 | 1.875868223000065e-05 |
| 29.770901654671604 | 44.910037661815 | 8.450848459 | 0.2810585758 | 1.146083469000056e-05 | 4.5530075600002225e-06 | 2.007720825000098e-05 |
| 44.910037661815 | 67.27276783564872 | 8.450848459 | 0.2810585758 | 8.667152851000513e-05 | 7.158381228000424e-05 | 0.00010335880960000612 |
| 67.27276783564872 | 96.2825377535987 | 8.661400428 | 0.328052925 | 0.00012189850210000669 | 0.0001034884741000057 | 0.0001418271965000078 |
| 96.2825377535987 | 131.36279299309066 | 8.78080743 | 0.3244057198 | 0.00022317016040000867 | 0.00019710932530000766 | 0.00025086496160000975 |
| 131.36279299309066 | 171.9369791315506 | 8.685375627 | 0.3107268548 | 0.0001544894160000066 | 0.00012993947370000555 | 0.00018070802500000775 |
| 171.9369791315506 | 217.42854174640422 | 8.436713762 | 0.3016929424 | 0.00022362913942509794 | 0.00019434409497175967 | 0.0002545259100414794 |
| 217.42854174640422 | 267.26092641507745 | 8.078823274 | 0.2980794639 | 0.0001985078686723362 | 0.0001687079925078715 | 0.00022993636922416988 |
| 267.26092641507745 | 320.85757871499624 | 7.650957621 | 0.2981991508 | 0.00023348515754807768 | 0.00019792728444643036 | 0.00027086263880515544 |
| 320.85757871499624 | 377.64194422358634 | 7.188358606 | 0.296295605 | 0.000219522816781556 | 0.00018162624466511683 | 0.00025931105203226855 |
| 377.64194422358634 | 437.0374685182734 | 6.720442168 | 0.3005679994 | 0.00023658152132977628 | 0.00019385809395582008 | 0.0002813371499044375 |
| 437.0374685182734 | 498.4675971764837 | 6.268152263 | 0.3068555427 | 0.00010419659409408606 | 6.250266905212993e-05 | 0.0001481803589324289 |
| 498.4675971764837 | 561.355775775643 | 5.84470024 | 0.3112671191 | 9.316182021291415e-05 | 5.0240463119206796e-05 | 0.00013835855857532547 |
| 561.355775775643 | 625.1254498931767 | 5.456820241 | 0.3163789584 | 0.00010036335836604916 | 5.507060575996527e-05 | 0.00014797005607043427 |
Temperature Profiles

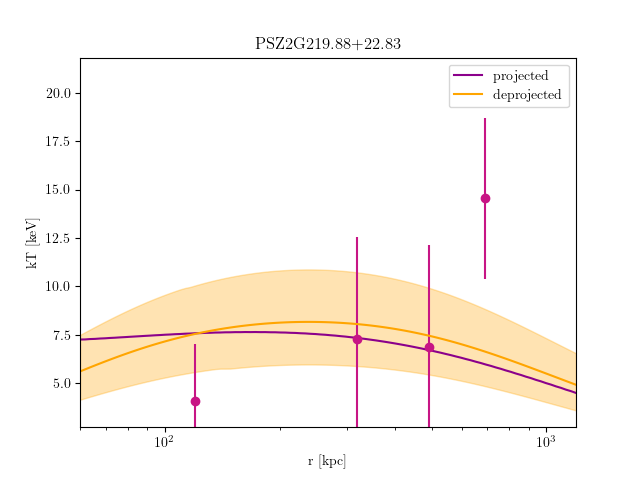

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G219.88+22.83_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 131.36279299308745 | 4.074349767 | 3.323114475 | 5.364859441 | 0.06961346072 | 0 | 0.3479054305 | 0.0006310513513 | 0.0005450571586 | 0.0007275796886 |
| 131.36279299308745 | 217.42854174639893 | 7.28062602 | 4.589650442 | 13.61640152 | 0.02351086898 | 0 | 0.5729997556 | 0.0004113815836 | 0.0003529789556 | 0.0004715179997 |
| 217.42854174639893 | 320.8575787149884 | 6.854917287 | 3.915260101 | 12.97813707 | 0.008417887094 | 0 | 0.7803573644 | 0.0004682403235 | 0.0003797663928 | 0.0005690833871 |
| 320.8575787149884 | 437.03746851826276 | 14.55323538 | 6.215712118 | 0 | 0.0007834491206 | 0 | 1.627253366 | 0.0004760973645 | 0.0003749706831 | 0.0005322606433 |
