Cluster
PSZ2G220.11+22.91
Emission Measure Profiles

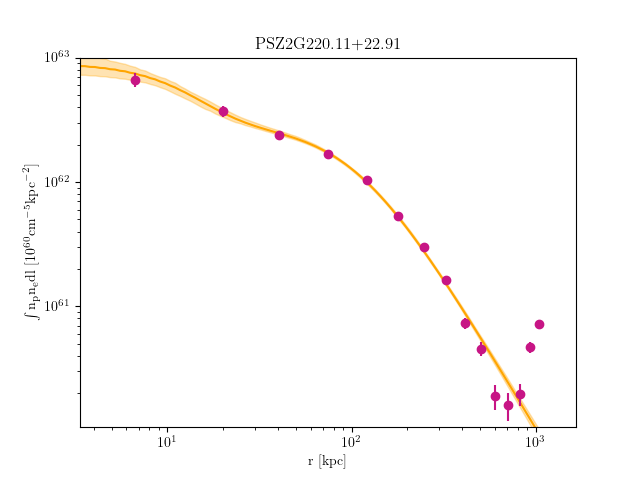

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G220.11+22.91_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.554924227272686 | 5.602409733 | 0.6749703661 | 3.702386655000117e-05 | 3.2810346050001045e-05 | 4.157510692000132e-05 |
| 7.554924227272686 | 15.01538354911097 | 5.602409733 | 0.6749703661 | 6.067440192000278e-05 | 5.523922714000253e-05 | 6.644706442000303e-05 |
| 15.01538354911097 | 30.40509631437874 | 5.602368612 | 0.601778642 | 0.00016134682350000556 | 0.00015220985220000524 | 0.00017082837580000587 |
| 30.40509631437874 | 53.13796520862066 | 5.547516358 | 0.4925201436 | 0.0003101127191000148 | 0.00029663009070001416 | 0.00032397605380001546 |
| 53.13796520862066 | 82.62789291738143 | 5.052644782 | 0.4023214914 | 0.0004009561382000109 | 0.00038503091260001044 | 0.0004172821051000113 |
| 82.62789291738143 | 118.28878212620558 | 3.843219773 | 0.3349882876 | 0.0003679913355000191 | 0.0003519858200000183 | 0.00038441737370002 |
| 118.28878212620558 | 159.53453552063792 | 3.126597651 | 0.2829675982 | 0.0003353600343676596 | 0.0003188537189185316 | 0.0003523296453407752 |
| 159.53453552063792 | 205.779055786223 | 2.800230956 | 0.2316802461 | 0.0002698386175728921 | 0.00025318961031016164 | 0.00028701845495755546 |
| 205.779055786223 | 256.4362456085055 | 2.570330291 | 0.1938498393 | 0.00016774064035307551 | 0.00015288305488833398 | 0.00018315636439632973 |
| 256.4362456085055 | 310.92000767303017 | 2.391913241 | 0.1517333432 | 0.00013708955354946298 | 0.00012113010733020309 | 0.00015370320284661672 |
| 310.92000767303017 | 368.6442446653415 | 2.22589009 | 0.1225934795 | 7.288155186615506e-05 | 5.6868423832490214e-05 | 8.963989915604267e-05 |
| 368.6442446653415 | 429.02285927098416 | 2.072225244 | 0.09850770141 | 7.508331685241221e-05 | 5.7098476888035105e-05 | 9.386808924245223e-05 |
| 429.02285927098416 | 491.469754175503 | 1.921034606 | 0.07589917993 | 0.00011069518907057664 | 8.978479402661042e-05 | 0.00013242427813196455 |
| 491.469754175503 | 555.3988320644427 | 1.780691895 | 0.05346697456 | 0.0003058363239626223 | 0.0002774094537702962 | 0.0003351315990263011 |
| 555.3988320644427 | 620.2239956233474 | 1.656176868 | 0.03225841102 | 0.0005318360241321631 | 0.0004945314001770179 | 0.0005701316403317438 |
Temperature Profiles

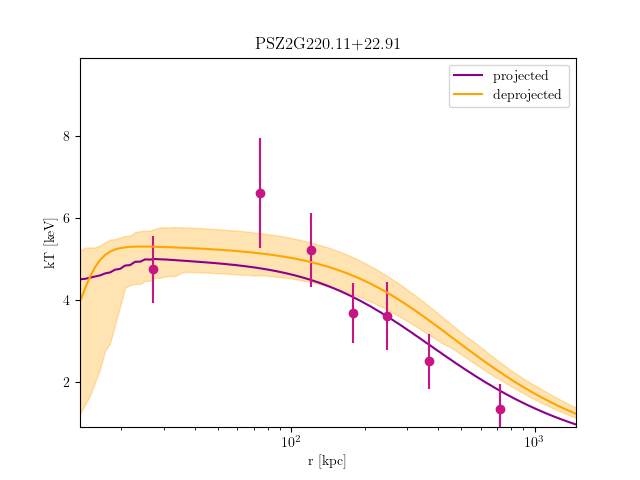

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G220.11+22.91_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 30.405096314377996 | 4.759392522 | 4.24672098 | 5.398324001 | 0.8238177049 | 0.5255473237 | 1.219078456 | 0.0002509518678 | 0.0002260955196 | 0.0002750680711 |
| 30.405096314377996 | 53.13796520861937 | 6.612901355 | 5.59497575 | 8.024644461 | 0.03391058386 | 0 | 0.2596937749 | 0.000340102668 | 0.0003173278242 | 0.0003587931453 |
| 53.13796520861937 | 82.62789291737941 | 5.229137177 | 4.594152477 | 6.008931527 | 0.4043407287 | 0.2126321539 | 0.6485873063 | 0.0003992461363 | 0.0003707329818 | 0.0004276634603 |
| 82.62789291737941 | 118.2887821262027 | 3.695865465 | 3.307281491 | 4.194081342 | 0.3905899302 | 0.1706411237 | 0.669803072 | 0.0003631733516 | 0.0003273459207 | 0.0003989537205 |
| 118.2887821262027 | 159.53453552063402 | 3.622118534 | 3.105690283 | 4.292311824 | 0.3373072232 | 0.1073105456 | 0.6490897559 | 0.0003204687723 | 0.0002842880767 | 0.0003596711982 |
| 159.53453552063402 | 256.43624560849923 | 2.507567116 | 2.183179589 | 2.897614635 | 0.2217367437 | 0.06798618507 | 0.4369587907 | 0.0004396191496 | 0.0003838381507 | 0.0005021989422 |
| 256.43624560849923 | 555.3988320644291 | 1.357107924 | 1.169405641 | 1.515749459 | 0.04202414684 | 0.0005078807082 | 0.1031606027 | 0.0008825899058 | 0.0007407269815 | 0.001101768473 |
