Cluster
PSZ2G224.38-24.95
Emission Measure Profiles

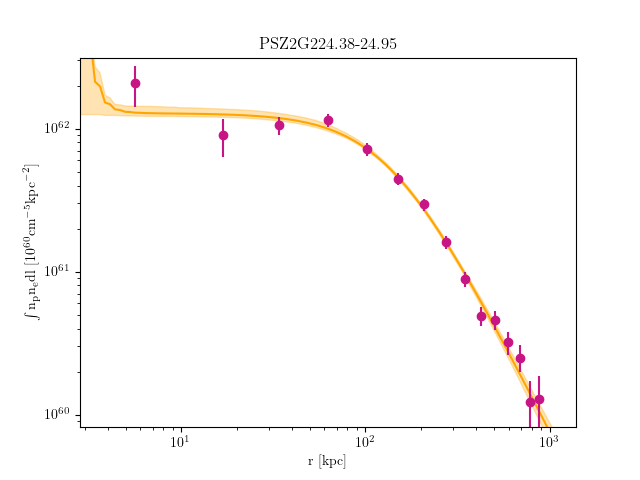

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G224.38-24.95_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 13.482262368623182 | 2.937868204 | 0.3288890759 | 4.558158724000224e-05 | 3.272343218000161e-05 | 6.132327223000302e-05 |
| 13.482262368623182 | 26.795945860558735 | 2.937868204 | 0.3288890759 | 5.784096504000367e-05 | 4.24952310300027e-05 | 7.612162519000483e-05 |
| 26.795945860558735 | 54.259906985419995 | 2.937868204 | 0.3288890759 | 0.00028169344910002216 | 0.00024625907980001943 | 0.0003201558990000252 |
| 54.259906985419995 | 94.82821628987014 | 2.945923563 | 0.3278616664 | 0.000829514224652126 | 0.0007602751127747259 | 0.0009025800251154037 |
| 94.82821628987014 | 147.45494432057245 | 3.213386357 | 0.274421199 | 0.0010930324261138856 | 0.0010095534223921463 | 0.0011805873004601378 |
| 147.45494432057245 | 211.0941616241899 | 3.287324891 | 0.2255072287 | 0.0012229264472150385 | 0.0011385597363948057 | 0.0013108702844838959 |
| 211.0941616241899 | 284.6999387473859 | 3.252625288 | 0.1862667908 | 0.0012933508097364836 | 0.0012049883671139947 | 0.0013852123430194306 |
| 284.6999387473859 | 367.2263462368234 | 3.151568158 | 0.1471786815 | 0.0010398757888952727 | 0.0009571957314587449 | 0.00112612594658488 |
| 367.2263462368234 | 457.6274546391657 | 3.007129247 | 0.1134762552 | 0.0007938806323010011 | 0.0007142309704058033 | 0.0008773700914733373 |
| 457.6274546391657 | 554.8573345010764 | 2.836091673 | 0.08679350408 | 0.0005763761866276174 | 0.0004995492625148697 | 0.0006574152408251415 |
| 554.8573345010764 | 657.8700563692179 | 2.652705646 | 0.06658443961 | 0.0006891829499702751 | 0.000599082178933611 | 0.0007839078435157175 |
| 657.8700563692179 | 765.6196907902537 | 2.46841401 | 0.04550799637 | 0.000589637061982695 | 0.0004936098910557884 | 0.0006909214486418832 |
| 765.6196907902537 | 877.0603083108471 | 2.291482922 | 0.03387793682 | 0.000550400928304006 | 0.0004417380931813919 | 0.0006651681610594612 |
| 877.0603083108471 | 991.1459794776617 | 2.126880705 | 0.01855469979 | 0.00031295804468066055 | 0.0001958071854129133 | 0.0004379992892139945 |
| 991.1459794776617 | 1106.8307748373595 | 1.976936052 | 0.005003154893 | 0.00037563057941104893 | 0.00021614156077753006 | 0.0005475221763939041 |
Temperature Profiles

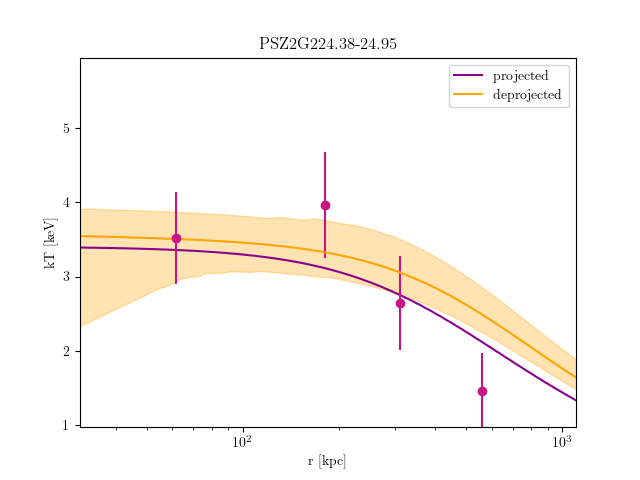

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G224.38-24.95_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 147.45494432056887 | 3.520657245 | 3.105733858 | 3.978875917 | 0.2645862426 | 0.09171484886 | 0.5000105775 | 0.002253022451 | 0.002031984009 | 0.00249566105 |
| 147.45494432056887 | 284.69993874737895 | 3.969147476 | 3.476222848 | 4.602146379 | 0.2858372056 | 0.09972773504 | 0.5314176878 | 0.002261417263 | 0.002048680153 | 0.002489589206 |
| 284.69993874737895 | 457.62745463915456 | 2.647217012 | 2.221152568 | 3.119875089 | 0.1191497093 | 0 | 0.4293522132 | 0.001979985352 | 0.001639433338 | 0.002360993579 |
| 457.62745463915456 | 877.0603083108257 | 1.452282648 | 1.244759347 | 1.762969956 | 4.316438313e-17 | 0 | 0.01785661334 | 0.003905122185 | 0.003271083316 | 0.004610586868 |
