Cluster
PSZ2G226.16-21.95
Emission Measure Profiles

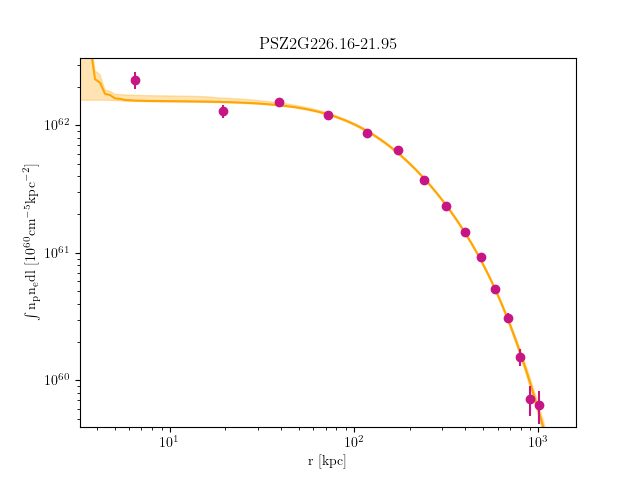

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G226.16-21.95_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 14.45124396185188 | 5.113150389 | 0.4314818932 | 5.840100077000293e-05 | 5.0078745580002506e-05 | 6.757798232000338e-05 |
| 14.45124396185188 | 28.721793140645875 | 5.113150389 | 0.4314818932 | 9.900123789000337e-05 | 8.8112962520003e-05 | 0.00011072414230000376 |
| 28.721793140645875 | 58.15961236732485 | 5.244416288 | 0.4156097287 | 0.00048184301990002057 | 0.00045747498340001954 | 0.0005070363528000216 |
| 58.15961236732485 | 101.64360035459796 | 5.376655586 | 0.4272743129 | 0.00102907911400005 | 0.0009939067217000484 | 0.0010650413870000519 |
| 101.64360035459796 | 158.0526558151744 | 5.539487219 | 0.4270372304 | 0.001584002148000073 | 0.0015393942830000712 | 0.0016294212810000752 |
| 158.0526558151744 | 226.2656774617631 | 5.731633899 | 0.4083657978 | 0.0020763860000001027 | 0.0020239709840001 | 0.0021296410320001055 |
| 226.2656774617631 | 305.1615640070734 | 5.931660873 | 0.3947691445 | 0.001927111266000084 | 0.0018767575210000818 | 0.0019782669940000865 |
| 305.1615640070734 | 393.61921416381426 | 5.93666722 | 0.3806410771 | 0.0017762326577289338 | 0.001725251947636856 | 0.0018280655975167843 |
| 393.61921416381426 | 490.5175266446949 | 5.645040183 | 0.3766075867 | 0.0015490914757449307 | 0.0014962992022612056 | 0.0016028638245355002 |
| 490.5175266446949 | 594.7354001624248 | 5.29062375 | 0.3751010577 | 0.001282744547310392 | 0.0012312013824746376 | 0.0013353319301536346 |
| 594.7354001624248 | 705.1517334297123 | 4.915501427 | 0.3735561908 | 0.0009281983843386018 | 0.000876322074933602 | 0.0009813601089577206 |
| 705.1517334297123 | 820.6454251592669 | 4.492233836 | 0.3704994683 | 0.0006720789115950361 | 0.0006157964029035893 | 0.0007301407835045317 |
| 820.6454251592669 | 940.0953740637981 | 4.173794225 | 0.368672977 | 0.00039599791196672803 | 0.0003397229115665528 | 0.0004544851780632688 |
| 940.0953740637981 | 1062.3804788560149 | 4.173794225 | 0.368672977 | 0.00021499239774333548 | 0.00015880103274794907 | 0.00027367094808027336 |
| 1062.3804788560149 | 1186.3796382486257 | 4.173794225 | 0.368672977 | 0.00022116241201675525 | 0.00015868332709438677 | 0.0002864802664011023 |
Temperature Profiles

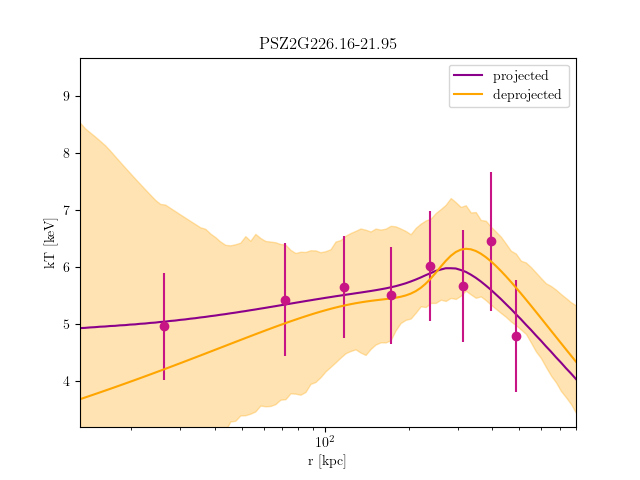

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G226.16-21.95_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 58.159612367323426 | 4.959796329 | 4.392204743 | 5.661731278 | 0.7247242327 | 0.4328664629 | 1.128000198 | 0.0005949867453 | 0.0005359383167 | 0.0006519763668 |
| 58.159612367323426 | 101.64360035459549 | 5.425411453 | 4.76680658 | 6.186346243 | 1.610073512e-09 | 0 | 0.1200963009 | 0.001151194937 | 0.001096341247 | 0.001195867868 |
| 101.64360035459549 | 158.05265581517057 | 5.649339524 | 5.099522234 | 6.264223769 | 0.3313627214 | 0.1887829678 | 0.5055713719 | 0.001619068914 | 0.001537566067 | 0.001699016891 |
| 158.05265581517057 | 226.26567746175758 | 5.503522252 | 5.034530534 | 6.029034995 | 0.4106860576 | 0.2752536032 | 0.5724348793 | 0.002081782541 | 0.001985474831 | 0.002177005955 |
| 226.26567746175758 | 305.161564007066 | 6.018727283 | 5.41974263 | 6.779451953 | 0.2289264324 | 0.09091689942 | 0.395898038 | 0.002001855189 | 0.001907284335 | 0.002093912407 |
| 305.161564007066 | 393.61921416380466 | 5.663981936 | 5.00516254 | 6.424632577 | 0.2092370511 | 0.06261307522 | 0.385281672 | 0.001858195904 | 0.001762005078 | 0.001952574811 |
| 393.61921416380466 | 490.51752664468296 | 6.446690618 | 5.585645577 | 7.580614145 | 0.4075704087 | 0.1670651904 | 0.7033022714 | 0.001529913594 | 0.00142599731 | 0.001630802606 |
| 490.51752664468296 | 594.7354001624102 | 4.786029161 | 4.168804437 | 5.558618301 | 0.7229589196 | 0.4126175348 | 1.140073146 | 0.00117730528 | 0.001059658387 | 0.001295626992 |
