Cluster
PSZ2G244.71+32.50
Emission Measure Profiles

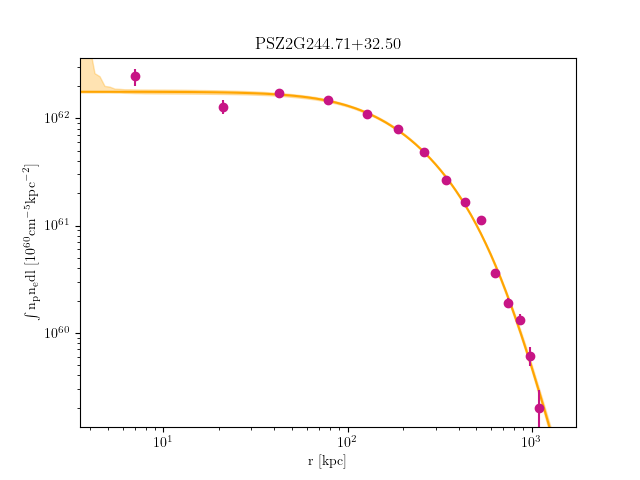

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G244.71+32.50_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 10.746180056744818 | 5.322342492 | 0.3879716936 | 3.1627910330001505e-05 | 2.6301193450001255e-05 | 3.759811485000179e-05 |
| 10.746180056744818 | 21.3579925338418 | 5.322342492 | 0.3879716936 | 4.8595641550002486e-05 | 4.1717696470002134e-05 | 5.613838922000287e-05 |
| 21.3579925338418 | 43.2484337112848 | 5.322342492 | 0.3879716936 | 0.0002739363327000128 | 0.00025820503460001205 | 0.00029027379400001354 |
| 43.2484337112848 | 75.58383443734688 | 5.573126117 | 0.3164236773 | 0.0006300063664000249 | 0.000606368486200024 | 0.0006542275464000258 |
| 75.58383443734688 | 117.53052556030116 | 5.642603906 | 0.2405480464 | 0.000987886485344897 | 0.0009577669344684032 | 0.0010186003963588387 |
| 117.53052556030116 | 168.25483792842056 | 5.385517292 | 0.1818232385 | 0.0012828169501155004 | 0.0012468981707002532 | 0.0013193753626214917 |
| 168.25483792842056 | 226.92310238997828 | 4.684777514 | 0.1332010927 | 0.001247044308757234 | 0.0012106649637211588 | 0.0012840780596486596 |
| 226.92310238997828 | 292.7016497932473 | 3.942080951 | 0.09181678457 | 0.0010206889302704844 | 0.0009851938748921996 | 0.001056905893066506 |
| 292.7016497932473 | 364.7568109865007 | 3.312887786 | 0.05626196816 | 0.0008690258186657998 | 0.0008324426464490412 | 0.000906458384903242 |
| 364.7568109865007 | 442.25491681801174 | 2.811722379 | 0.02319945227 | 0.0007783688626382796 | 0.0007394466118941868 | 0.0008182935869970579 |
| 442.25491681801174 | 524.3622981360531 | 2.421304778 | 1 | 0.000321211848701646 | 0.0002989071098984071 | 0.0003442149660336201 |
| 524.3622981360531 | 610.245285788898 | 2.107437436 | 1 | 0.00020727861748104313 | 0.00018771647131001106 | 0.00022753806952507147 |
| 610.245285788898 | 699.0702106248195 | 1.858332744 | 1 | 0.000172240761991658 | 0.00015311471567600174 | 0.00019213789705985331 |
| 699.0702106248195 | 790.0034034920913 | 1.657179754 | 1 | 9.216969592518052e-05 | 7.488701328016499e-05 | 0.0001103855245829687 |
| 790.0034034920913 | 882.2111952389852 | 1.492367658 | 1 | 3.392931921725817e-05 | 1.869257619401519e-05 | 5.028799762292871e-05 |
Temperature Profiles

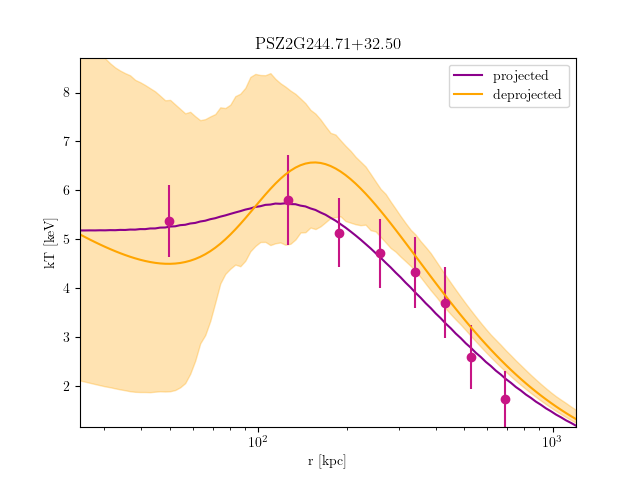

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G244.71+32.50_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 75.58383443734503 | 5.375734658 | 4.894806662 | 5.975754344 | 0.4505019344 | 0.280528065 | 0.6551965579 | 0.0009688540849 | 0.0009136244399 | 0.001023034869 |
| 75.58383443734503 | 117.53052556029829 | 5.809796239 | 5.153553357 | 6.694561289 | 0.07034989189 | 0 | 0.202716417 | 0.001024036356 | 0.0009770094588 | 0.001071856181 |
| 117.53052556029829 | 168.25483792841644 | 5.137106838 | 4.711774013 | 5.676254787 | 0.2723782085 | 0.1458959125 | 0.4226617342 | 0.00125887707 | 0.001197427863 | 0.001319739128 |
| 168.25483792841644 | 226.92310238997274 | 4.710051217 | 4.263537753 | 5.255703795 | 0.02504262407 | 0 | 0.1442040134 | 0.001286806553 | 0.001224135386 | 0.001343483675 |
| 226.92310238997274 | 292.70164979324016 | 4.327943101 | 3.889136066 | 4.926881313 | 0.1362347388 | 0 | 0.3111830241 | 0.0009841369018 | 0.0009184688326 | 0.001050445598 |
| 292.70164979324016 | 364.75681098649176 | 3.702483281 | 3.284157514 | 4.336708261 | 0.0002367091019 | 0 | 0.1732777076 | 0.0008643673517 | 0.0007867277824 | 0.000910738067 |
| 364.75681098649176 | 442.25491681800094 | 2.587883386 | 2.224906809 | 3.051394618 | 4.344466864e-16 | 0 | 0.03030556914 | 0.0008156664075 | 0.0007504895235 | 0.0008722792382 |
| 442.25491681800094 | 610.245285788883 | 1.734171445 | 1.492669978 | 2.009391339 | 2.919622099e-11 | 0 | 0.01627587324 | 0.001148024433 | 0.001038056984 | 0.001231574533 |
