Cluster
PSZ2G253.13+57.49
Emission Measure Profiles

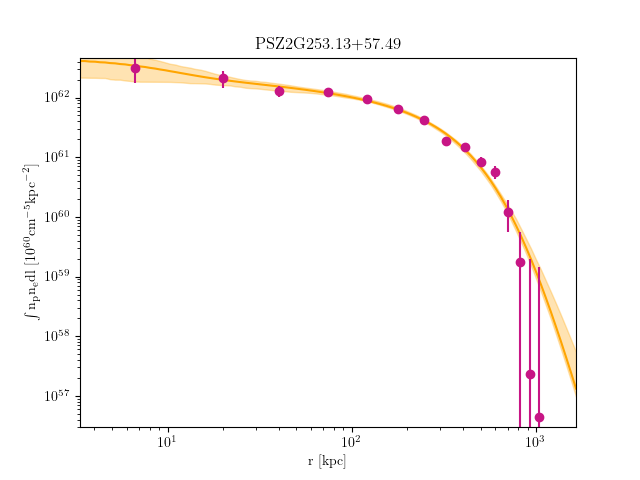

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G253.13+57.49_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.411186767997894 | 3.402068901 | 0.2904475263 | 1.701205127000069e-05 | 1.061450793000043e-05 | 2.5194243540001018e-05 |
| 7.411186767997894 | 14.729705888229274 | 3.402068901 | 0.2904475263 | 3.399748500000158e-05 | 2.4947092320001162e-05 | 4.482594077000209e-05 |
| 14.729705888229274 | 29.82661913025855 | 3.402068901 | 0.2904475263 | 8.674578276000445e-05 | 7.064449550000361e-05 | 0.00010493474390000537 |
| 29.82661913025855 | 52.1269800709343 | 3.411405047 | 0.2621253747 | 0.00022429286180001082 | 0.00019391019570000936 | 0.00025732391140001243 |
| 52.1269800709343 | 81.05584228710511 | 3.721196714 | 0.1786170445 | 0.0003685987587000083 | 0.00033071866340000743 | 0.0004088995713000092 |
| 81.05584228710511 | 116.03825935561946 | 3.807096766 | 0.1544152808 | 0.00044373432930002566 | 0.00040119095680002316 | 0.0004886769683000282 |
| 116.03825935561946 | 156.49928485332603 | 3.766923336 | 0.1197050014 | 0.00046696439226403803 | 0.00041924629280823563 | 0.0005174094626496002 |
| 156.49928485332603 | 201.8639723570733 | 3.649979893 | 0.08251395019 | 0.0003074728439778322 | 0.00026718265456030323 | 0.0003503304111759758 |
| 201.8639723570733 | 251.55737544370976 | 3.482633442 | 0.05719071702 | 0.000336902815461778 | 0.00029269054967235274 | 0.00038367715557563605 |
| 251.55737544370976 | 305.00454769008434 | 3.284547442 | 0.02631010626 | 0.0002498445986737317 | 0.00020725372943204476 | 0.0002950918866697889 |
| 305.00454769008434 | 361.63054267304517 | 3.072126459 | 0.002300829732 | 0.00021408894609158485 | 0.00016883617645470917 | 0.00026226523612462666 |
| 361.63054267304517 | 420.8604139694409 | 2.858731244 | 1 | 5.6729086769861416e-05 | 2.7716088313643474e-05 | 8.782073903683337e-05 |
| 420.8604139694409 | 482.11921515612033 | 2.653862964 | 1 | 9.668084136890983e-06 | 0.0 | 4.174366482583943e-05 |
| 482.11921515612033 | 544.831999809932 | 2.463142435 | 1 | 1.4856427359106675e-07 | 0.0 | 2.5177967860072977e-05 |
| 544.831999809932 | 608.4238215077241 | 2.289514914 | 1 | 3.274042488588681e-08 | 0.0 | 2.1042890195954304e-05 |
Temperature Profiles

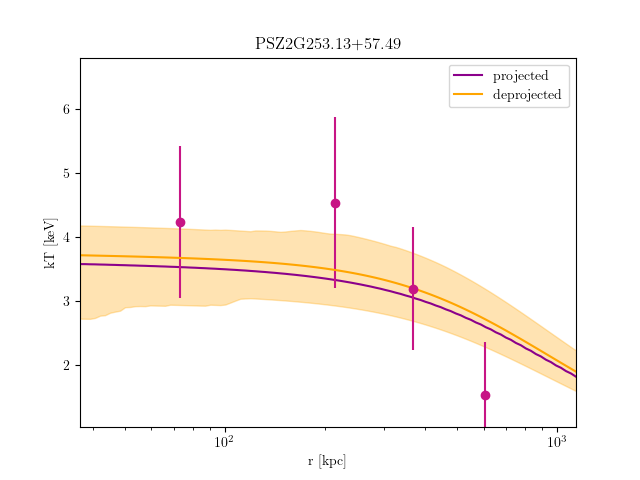

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G253.13+57.49_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 81.05584228710313 | 4.240418591 | 3.507360033 | 5.348523936 | 0.2781894557 | 0.04493980926 | 0.6236279558 | 0.0006781897777 | 0.0005946149983 | 0.0007713162615 |
| 81.05584228710313 | 156.4992848533222 | 4.54108923 | 3.633741534 | 5.829376172 | 0.1453389257 | 0 | 0.4543160448 | 0.0008585190869 | 0.0007587999344 | 0.000978185416 |
| 156.4992848533222 | 251.55737544370365 | 3.194824847 | 2.487988037 | 3.667292348 | 3.48487355e-10 | 0 | 0.08400669497 | 0.0006980213032 | 0.0006084438709 | 0.0008092933907 |
| 251.55737544370365 | 420.8604139694306 | 1.534758747 | 1.251805218 | 1.900227973 | 5.482978765e-12 | 0 | 0.05941789832 | 0.0009659209485 | 0.0007462849796 | 0.001239127134 |
