Cluster
PSZ2G256.53-65.70
Emission Measure Profiles

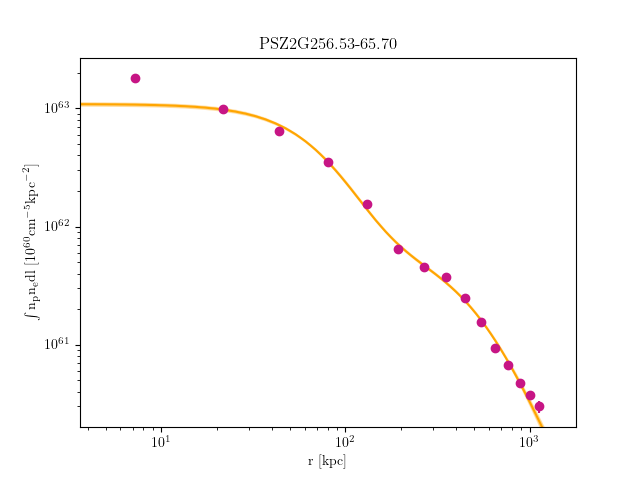

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G256.53-65.70_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.298288336011323 | 3.364140509 | 0.4415498786 | 0.00012604198300000778 | 0.00011799702190000727 | 0.0001344411620000083 |
| 8.298288336011323 | 16.492816925485563 | 3.68547865 | 0.4205343401 | 0.0002033059543000096 | 0.0001929894625000091 | 0.00021397896070001008 |
| 16.492816925485563 | 33.39679505852484 | 4.255474868 | 0.3830313091 | 0.0005569665230000296 | 0.0005397874027000287 | 0.0005745010759000306 |
| 33.39679505852484 | 58.3664565818228 | 4.843429546 | 0.3404696339 | 0.0008260017164699331 | 0.0008051336801692086 | 0.0008472187279854331 |
| 58.3664565818228 | 90.75803534207316 | 5.139154485 | 0.2969714075 | 0.000771004348923979 | 0.0007509225469251845 | 0.0007914242929688299 |
| 90.75803534207316 | 129.92776518596938 | 5.247680478 | 0.2621343991 | 0.0005682516573770463 | 0.0005505469586776948 | 0.0005862968054324181 |
| 129.92776518596938 | 175.2318799602053 | 6.379345343 | 0.2365929493 | 0.0006422679066784257 | 0.0006229876360948067 | 0.0006618944888520656 |
| 175.2318799602053 | 226.02661351147444 | 6.493925146 | 0.21777933 | 0.0007776193334352883 | 0.0007562493837275564 | 0.0007993319460591362 |
| 226.02661351147444 | 281.6681996864704 | 4.829655082 | 0.2018871772 | 0.0007144502640941664 | 0.0006918126390792971 | 0.0007374895334151696 |
| 281.6681996864704 | 341.51287233188714 | 3.473959449 | 0.1901789565 | 0.0005915176477014697 | 0.0005679836909512462 | 0.0006155436554781878 |
| 341.51287233188714 | 404.9168652944179 | 2.503748256 | 0.1802241377 | 0.0004507588993306806 | 0.00042799427336436967 | 0.00047407095586523987 |
| 404.9168652944179 | 471.2364124207564 | 1.833251904 | 0.1699152964 | 0.0004024550919281308 | 0.00037766979462138314 | 0.00042790169390034203 |
| 471.2364124207564 | 539.8277475575965 | 1.368253879 | 0.1628047 | 0.0003329725034283457 | 0.0003080828000869655 | 0.0003585869813888626 |
| 539.8277475575965 | 610.0471045516318 | 1.048966982 | 0.1549106367 | 0.0003084521365326873 | 0.0002822951595923716 | 0.0003354185150390387 |
| 610.0471045516318 | 681.2507172495557 | 0.8285596546 | 0.1483012649 | 0.00028143607587963307 | 0.00025046627139749 | 0.0003134972164862898 |
Temperature Profiles

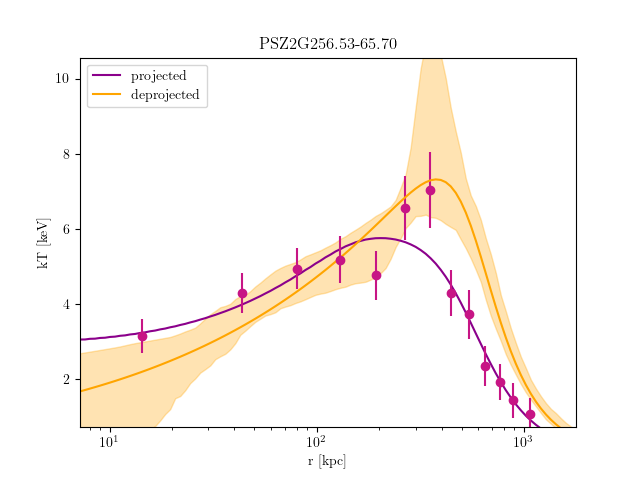

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G256.53-65.70_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 16.492816925485158 | 3.155575152 | 2.912125232 | 3.429491288 | 0.5749858187 | 0.38968326 | 0.8116058971 | 0.0003415584543 | 0.0003102569458 | 0.0003731151101 |
| 16.492816925485158 | 33.39679505852403 | 4.298943292 | 3.953864049 | 4.716418242 | 0.3706511645 | 0.2393233517 | 0.5326278666 | 0.0005577790171 | 0.0005249019766 | 0.0005893433503 |
| 33.39679505852403 | 58.36645658182138 | 4.949318336 | 4.594908498 | 5.361916205 | 0.1942695817 | 0.1040263798 | 0.3008772048 | 0.0008350475388 | 0.0008009101148 | 0.0008691386117 |
| 58.36645658182138 | 90.75803534207094 | 5.179081682 | 4.740226828 | 5.736600871 | 0.1669852242 | 0.06941061835 | 0.2817660975 | 0.0007833547412 | 0.0007504338602 | 0.0008168662333 |
| 90.75803534207094 | 129.92776518596622 | 4.765000468 | 4.285687063 | 5.337193365 | 0.1855768413 | 0.0615647011 | 0.3341951315 | 0.0005889922571 | 0.000557343676 | 0.0006213666112 |
| 129.92776518596622 | 175.231879960201 | 6.557168481 | 5.886162727 | 7.429333147 | 1.861584699e-14 | 0 | 0.06221743565 | 0.0006718790465 | 0.0006491593243 | 0.0006946924683 |
| 175.231879960201 | 226.02661351146892 | 7.0404138 | 6.188140312 | 8.042329123 | 0.05324605253 | 0 | 0.2007371337 | 0.000800239913 | 0.0007676368111 | 0.000831007892 |
| 226.02661351146892 | 281.66819968646354 | 4.298257739 | 3.845841124 | 4.798024701 | 1.252233315e-07 | 0 | 0.1043443284 | 0.0007730197111 | 0.0007324930121 | 0.0008036686686 |
| 281.66819968646354 | 341.51287233187884 | 3.729504495 | 3.254952867 | 4.325096935 | 0.227952181 | 0.05944579344 | 0.4374668207 | 0.0005738579693 | 0.0005253564756 | 0.0006263187299 |
| 341.51287233187884 | 404.916865294408 | 2.357961684 | 2.027940171 | 2.743133385 | 0.07392928934 | 0 | 0.2389567112 | 0.000492126603 | 0.0004264138313 | 0.000566420574 |
| 404.916865294408 | 471.23641242074484 | 1.929191933 | 1.680750527 | 2.228157358 | 1.352950719e-10 | 0 | 0.02838278536 | 0.0004764587843 | 0.0004283020389 | 0.0005189481057 |
| 471.23641242074484 | 539.8277475575834 | 1.448021762 | 1.263781536 | 1.784351895 | 0.007621966753 | 0 | 0.1209912182 | 0.0004543983575 | 0.0003417467216 | 0.0005343566166 |
| 539.8277475575834 | 681.2507172495391 | 1.090399573 | 0.9947055151 | 1.224765829 | 8.077464001e-18 | 0.5 | 0 | 0.001039519492 | 0.0009110929944 | 0.00116227667 |
