Cluster
PSZ2G261.88+62.85
Emission Measure Profiles

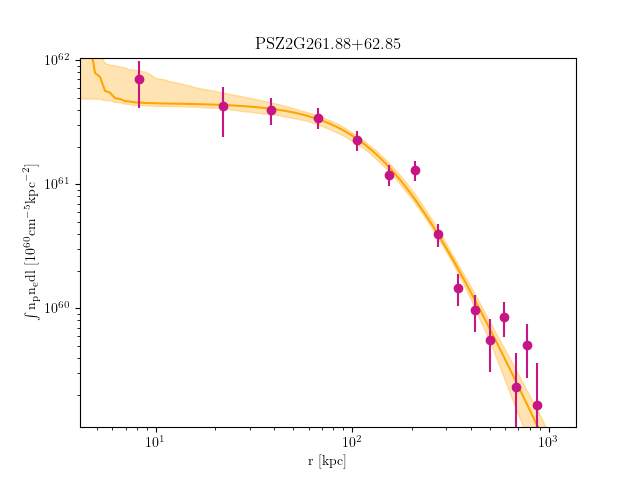

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G261.88+62.85_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 18.51339721052785 | 1.921281622 | 0.2984360496 | 3.141083052000102e-05 | 2.074453115000067e-05 | 4.484722585000145e-05 |
| 18.51339721052785 | 30.870329994862185 | 1.921281622 | 0.2984360496 | 3.386763921000124e-05 | 2.157627554000079e-05 | 4.9027320700001796e-05 |
| 30.870329994862185 | 56.36067020139086 | 1.921281622 | 0.2984360496 | 0.00011537454960000542 | 9.318697854000438e-05 | 0.0001403250324000066 |
| 56.36067020139086 | 94.01365117790472 | 2.195899136 | 0.2693995339 | 0.0002558298548000122 | 0.00022330778620001062 | 0.0002909773205000139 |
| 94.01365117790472 | 142.85850627219466 | 2.360660386 | 0.2344917859 | 0.0003436194006000147 | 0.00030484059190001307 | 0.0003849801084000165 |
| 142.85850627219466 | 201.9244688320514 | 2.40326244 | 0.1697037311 | 0.0003181977404000148 | 0.00027626039150001287 | 0.0003631082622000169 |
| 201.9244688320514 | 270.2407722052659 | 2.373416352 | 0.06867069162 | 0.0005501901149000414 | 0.0004888135881000367 | 0.0006151980556000463 |
| 270.2407722052659 | 346.8366497396289 | 2.297583276 | 1 | 0.00024644715730001433 | 0.00020855934100001212 | 0.00028690466230001663 |
| 346.8366497396289 | 430.7413347829313 | 2.191135202 | 1 | 0.0001255721302000056 | 9.450296095000422e-05 | 0.0001590203145000071 |
| 430.7413347829313 | 520.9840606829641 | 2.065867886 | 1 | 0.00010841204510000606 | 7.653340119000427e-05 | 0.00014255694160000796 |
| 520.9840606829641 | 616.5940607875178 | 2.019415828 | 1 | 7.973207961238671e-05 | 4.633720414378813e-05 | 0.00011547530587379498 |
| 616.5940607875178 | 716.6005684443834 | 2.019415828 | 1 | 0.00014973369801823646 | 0.000109629965602829 | 0.00019221764847977558 |
| 716.6005684443834 | 820.0328170013518 | 2.019415828 | 1 | 4.8045024227111336e-05 | 7.08745852311702e-06 | 9.174871345935516e-05 |
| 820.0328170013518 | 925.920039806214 | 2.019415828 | 1 | 0.00012309129655982686 | 7.051140937623951e-05 | 0.00017907087915555741 |
| 925.920039806214 | 1033.2914702067606 | 2.019415828 | 1 | 4.557099000666979e-05 | 0.0 | 0.00010648312628587962 |
Temperature Profiles

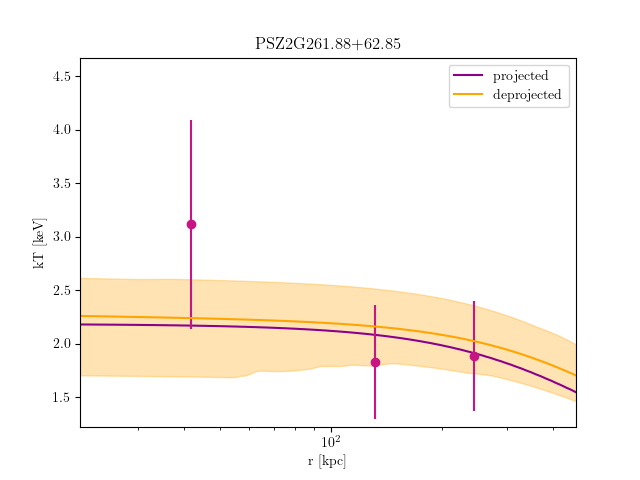

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G261.88+62.85_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 94.01365117790243 | 3.114661541 | 2.398619256 | 4.201726168 | 0.2371704513 | 0 | 0.8524287337 | 0.0003824494175 | 0.0002954491025 | 0.0004909784027 |
| 94.01365117790243 | 201.92446883204644 | 1.828590476 | 1.484758108 | 2.236993741 | 0.1268745972 | 0 | 0.5992955188 | 0.0008035642448 | 0.0005425205553 | 0.001118413906 |
| 201.92446883204644 | 346.83664973962044 | 1.881865012 | 1.653036622 | 2.35212184 | 1.708612439e-06 | 0 | 0.2484199033 | 0.00118182026 | 0.0008715666302 | 0.001404716909 |
