Cluster
PSZ2G263.14-23.41
Emission Measure Profiles

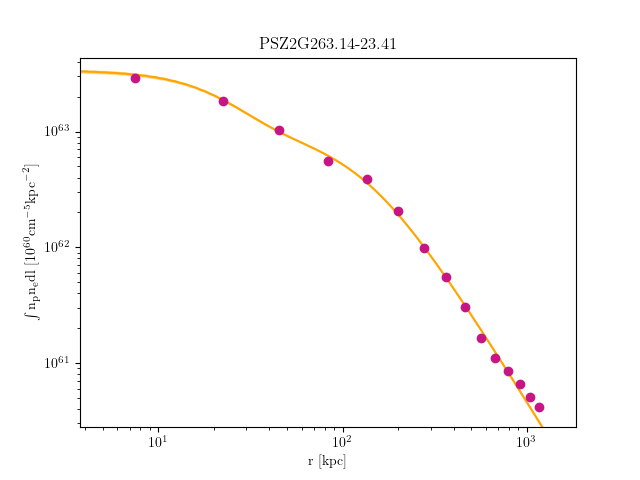

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G263.14-23.41_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.395720572175456 | 3.765332166 | 0.6903327956 | 0.00020418901120001056 | 0.00019886248180001027 | 0.00020960862480001082 |
| 8.395720572175456 | 16.68646312921197 | 4.62460477 | 1.065195007 | 0.0003833616936000182 | 0.00037652184820001787 | 0.0003902833207000185 |
| 16.68646312921197 | 33.78891501043668 | 5.295288226 | 1.304723076 | 0.000892951591400039 | 0.0008827278393000385 | 0.0009032923406000395 |
| 33.78891501043668 | 59.05175144643548 | 6.146819487 | 1.513468817 | 0.0013066407320000504 | 0.00129429569500005 | 0.0013191020790000508 |
| 59.05175144643548 | 91.8236476677943 | 7.471370694 | 1.679793307 | 0.001932664299000066 | 0.0019173418820000654 | 0.0019481076210000664 |
| 91.8236476677943 | 131.45327890509887 | 9.942508968 | 1.814054479 | 0.001815709459214726 | 0.0018010314626161347 | 0.0018305049315477215 |
| 131.45327890509887 | 177.28932038893524 | 13.50598076 | 1.925068785 | 0.0013843861287203118 | 0.001371492190683634 | 0.0013973974877374068 |
| 177.28932038893524 | 228.6804473498892 | 17.52867232 | 2.018845698 | 0.0011613731989848282 | 0.0011494210179691597 | 0.001173443645214608 |
| 228.6804473498892 | 284.97533501854656 | 20.71713264 | 2.099439206 | 0.0008837661475554932 | 0.000873049556600722 | 0.0008946042035011081 |
| 284.97533501854656 | 345.5226586254936 | 22.97625051 | 2.169641107 | 0.000627293490600643 | 0.0006178692820584689 | 0.0006368438534710323 |
| 345.5226586254936 | 409.6710934013156 | 24.61028814 | 2.231459725 | 0.0005342893416612096 | 0.0005251447068844415 | 0.0005435678379750983 |
| 409.6710934013156 | 476.76931457659873 | 25.62643452 | 2.286345227 | 0.0005023873578571429 | 0.0004926511082904556 | 0.0005122275750724411 |
| 476.76931457659873 | 546.165997381929 | 26.38501555 | 2.335407425 | 0.0004658491625337879 | 0.00045624896319585405 | 0.00047555480035587955 |
| 546.165997381929 | 617.2098170478924 | 26.99589018 | 2.379468746 | 0.00042173314551900297 | 0.0004123151685048371 | 0.0004312594834300151 |
| 617.2098170478924 | 689.2494488050742 | 27.44586509 | 2.419202761 | 0.0003924813987416843 | 0.00038224751551905784 | 0.00040284970287084084 |
Temperature Profiles

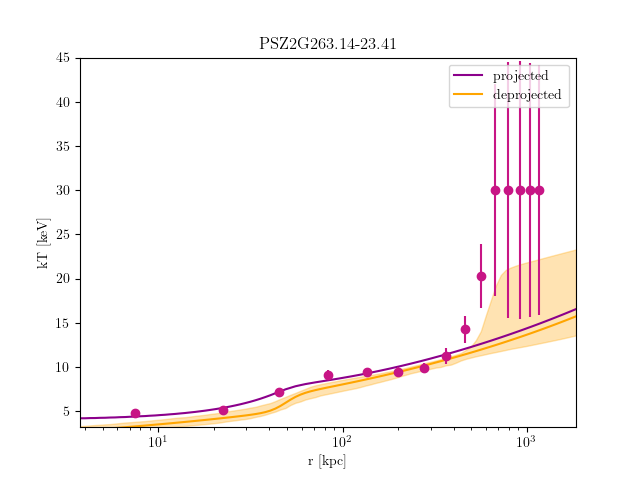

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G263.14-23.41_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 8.395720572175252 | 4.774983507 | 4.446866061 | 5.148162755 | 0.472646642 | 0.3423377313 | 0.6244715913 | 0.0002082841965 | 0.0001983203753 | 0.000218210399 |
| 8.395720572175252 | 16.68646312921156 | 5.136824065 | 4.88374214 | 5.419214488 | 0.5076969398 | 0.4126626949 | 0.6135282775 | 0.000435070829 | 0.0004211110165 | 0.0004489448028 |
| 16.68646312921156 | 33.78891501043586 | 7.116226279 | 6.794007422 | 7.464040829 | 0.4182073542 | 0.3527403305 | 0.4880606104 | 0.0010579958 | 0.0010382293 | 0.001077638714 |
| 33.78891501043586 | 59.05175144643404 | 9.106733961 | 8.698433205 | 9.586587495 | 0.3766507724 | 0.3136612161 | 0.4438155731 | 0.001606951813 | 0.001582040173 | 0.00163130973 |
| 59.05175144643404 | 91.82364766779206 | 9.415311836 | 9.046008776 | 9.800540764 | 0.391302408 | 0.336286927 | 0.4488578256 | 0.002424871708 | 0.002393266438 | 0.002456131751 |
| 91.82364766779206 | 131.4532789050957 | 9.444290176 | 9.066546149 | 9.837567657 | 0.3267913141 | 0.2733265484 | 0.3826981134 | 0.002290877086 | 0.002261172797 | 0.002320258147 |
| 131.4532789050957 | 177.28932038893092 | 9.878380123 | 9.407891742 | 10.40322225 | 0.2978921568 | 0.2337068677 | 0.3650635586 | 0.001703038868 | 0.001677380649 | 0.001728408366 |
| 177.28932038893092 | 228.6804473498836 | 11.22683014 | 10.51025441 | 12.09832425 | 0.4518634776 | 0.3619682846 | 0.5473833543 | 0.001353409445 | 0.001328378222 | 0.00137817441 |
| 228.6804473498836 | 284.97533501853957 | 14.26500135 | 12.82924713 | 15.82546356 | 0.5231529759 | 0.3757606533 | 0.6784558534 | 0.001018838685 | 0.0009924466074 | 0.001046307748 |
| 284.97533501853957 | 345.5226586254852 | 20.28946549 | 17.5329939 | 24.76375629 | 1.136199163 | 0.8170449478 | 1.531397464 | 0.0006853969182 | 0.000655076586 | 0.0007186012453 |
| 345.5226586254852 | 409.67109340130565 | 29.99684546 | 24.00719895 | 0 | 2.854571211 | 2.018467306 | 3.604787683 | 0.0005127194199 | 0.0004713195023 | 0.0005538975775 |
| 409.67109340130565 | 476.76931457658713 | 30 | 28.95898345 | 0 | 4.273442739 | 3.066446739 | 0 | 0.0004353056472 | 0.0004043494467 | 0.0004831281581 |
| 476.76931457658713 | 546.1659973819156 | 29.99999919 | 29.11395165 | 0 | 4.516958623 | 3.16395854 | 4.797138821 | 0.000393745461 | 0.0003629222765 | 0.0004192493381 |
| 546.1659973819156 | 617.2098170478773 | 29.99998567 | 28.77167361 | 0 | 4.999978974 | 4.683237594 | 0 | 0.0003445421269 | 0.0003367682579 | 0.0003521859531 |
| 617.2098170478773 | 689.2494488050575 | 29.99997521 | 28.2512252 | 0 | 5 | 4.770609869 | 0 | 0.0003203219862 | 0.0003119876668 | 0.000328741765 |
