Cluster
PSZ2G263.68-22.55
Emission Measure Profiles

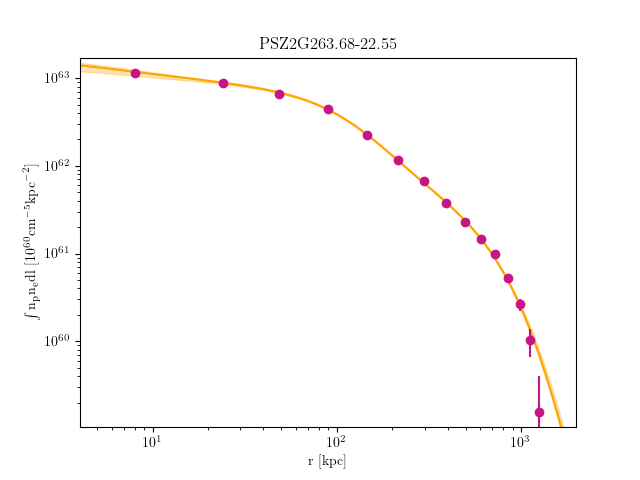

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G263.68-22.55_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 11.64024429512064 | 7.181928705 | 0.4618398801 | 0.00017220292180000963 | 0.00015685107700000875 | 0.00018851802750001053 |
| 11.64024429512064 | 23.134941852313396 | 7.181928705 | 0.4618398801 | 0.00039394213000002007 | 0.00037117838060001884 | 0.00041761180740002127 |
| 23.134941852313396 | 46.84663118637342 | 7.02929711 | 0.4097469759 | 0.0012297827120000611 | 0.0011884587290000592 | 0.0012720435570000633 |
| 46.84663118637342 | 81.87228326408473 | 7.774844463 | 0.3387932012 | 0.002222213683000075 | 0.002167701942000073 | 0.0022776175860000766 |
| 81.87228326408473 | 127.30886905223133 | 9.298858727 | 0.2831947656 | 0.0023615028954570402 | 0.00230422584230021 | 0.00241969408185882 |
| 127.30886905223133 | 182.25335951759706 | 9.16825345 | 0.2352541963 | 0.002188603813831047 | 0.002132240179129531 | 0.0022458997087238977 |
| 182.25335951759706 | 245.8027256269661 | 7.781828197 | 0.1964731705 | 0.002054825152529955 | 0.0019995214388448166 | 0.0021110556907331613 |
| 245.8027256269661 | 317.05393834712225 | 6.308868405 | 0.1635969845 | 0.0016769979699957454 | 0.001624871802635802 | 0.001730080583228474 |
| 317.05393834712225 | 395.1039686448495 | 5.110411837 | 0.1337867817 | 0.0014138574943491767 | 0.001362388546948911 | 0.0014663738137482996 |
| 395.1039686448495 | 479.0497874869322 | 4.181818006 | 0.1103916792 | 0.0011901699133275362 | 0.0011346875116048716 | 0.00124701862942336 |
| 479.0497874869322 | 567.9883658401537 | 3.483354939 | 0.08613584268 | 0.0010098080580391048 | 0.0009536882178755387 | 0.0010674333747753197 |
| 567.9883658401537 | 661.0166746712983 | 2.960180349 | 0.06624833797 | 0.0006643972545553335 | 0.0006095585926310438 | 0.0007210342705051791 |
| 661.0166746712983 | 757.2316849471501 | 2.545998905 | 0.04715030452 | 0.0004015334360665489 | 0.00034176470159735166 | 0.0004640030966783658 |
| 757.2316849471501 | 855.7303676344933 | 2.217566931 | 0.03191116986 | 0.00018145811374208819 | 0.00011976818220469431 | 0.00024674446263659404 |
| 855.7303676344933 | 955.6096937001109 | 2.173724354 | 0.0304098368 | 3.157779863693461e-05 | 0.0 | 9.739553066392655e-05 |
Temperature Profiles

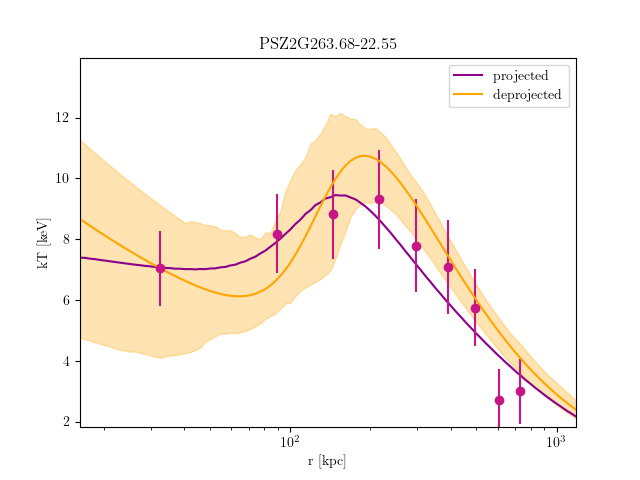

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G263.68-22.55_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 46.84663118637228 | 7.043866499 | 6.351662092 | 8.015788154 | 0.4425940278 | 0.2720145006 | 0.6464361994 | 0.001829493508 | 0.001739975681 | 0.001916817965 |
| 46.84663118637228 | 81.87228326408272 | 8.184120185 | 7.351131351 | 9.197740516 | 0.5223951694 | 0.3471486292 | 0.725518789 | 0.002140589985 | 0.002047120755 | 0.002231557427 |
| 81.87228326408272 | 127.30886905222823 | 8.816439407 | 7.816277742 | 10.11832445 | 0.1425724276 | 0 | 0.3037514516 | 0.002421926982 | 0.002329969004 | 0.002511462107 |
| 127.30886905222823 | 182.25335951759263 | 9.317774556 | 8.136824509 | 10.81913341 | 0.1252589938 | 0 | 0.3105695592 | 0.002231597133 | 0.002139552657 | 0.002321188512 |
| 182.25335951759263 | 245.8027256269601 | 7.785771751 | 6.673723631 | 9.113122909 | 0.05007262474 | 0 | 0.1979938944 | 0.002113953482 | 0.0020296459 | 0.002193976414 |
| 245.8027256269601 | 317.0539383471145 | 7.08908292 | 6.212912142 | 8.678594127 | 0.1563214013 | 0 | 0.3623501729 | 0.001659173756 | 0.001571978777 | 0.001743891427 |
| 317.0539383471145 | 395.1039686448398 | 5.75376496 | 4.93116614 | 6.638178033 | 0.0005584342409 | 0 | 0.1754349645 | 0.001439409536 | 0.00135627314 | 0.001501562067 |
| 395.1039686448398 | 479.0497874869205 | 2.724517273 | 2.439567752 | 3.173592458 | 1.485721157e-06 | 0 | 0.1171209168 | 0.001428412009 | 0.001287778665 | 0.0015265432 |
| 479.0497874869205 | 567.98836584014 | 2.99856328 | 2.514778162 | 3.566359356 | 0.2820168903 | 0.06239945581 | 0.6050930427 | 0.0009604358089 | 0.0008246299622 | 0.001118635048 |
