Cluster
PSZ2G277.38+47.07
Emission Measure Profiles

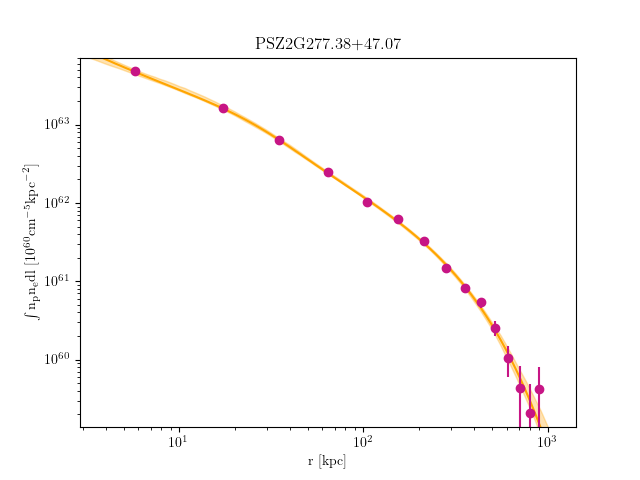

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G277.38+47.07_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 10.924327059327624 | 2.800142416 | 0.4491939449 | 0.0006546571341000279 | 0.0006058993812000258 | 0.0007059596252000301 |
| 10.924327059327624 | 21.712059032913878 | 2.800142416 | 0.4491939449 | 0.0006482122368000277 | 0.0006002336539000257 | 0.0006986643009000298 |
| 21.712059032913878 | 43.96539348595662 | 3.230714938 | 0.2756239267 | 0.0010667071780000468 | 0.0010051762670000442 | 0.0011306626590000496 |
| 43.96539348595662 | 76.83684094548528 | 3.969129784 | 0.285780599 | 0.0011471763910000537 | 0.001085704179000051 | 0.0012108572590000567 |
| 76.83684094548528 | 119.4789119385294 | 4.364167241 | 0.2912908858 | 0.0009998220412912612 | 0.0009425763089410707 | 0.001059189104226958 |
| 119.4789119385294 | 171.04411699211823 | 4.495864559 | 0.2964633528 | 0.0010690085493150108 | 0.001007758257564569 | 0.0011324443941195716 |
| 171.04411699211823 | 230.68496663328148 | 4.479219284 | 0.2990708931 | 0.0008897258203556756 | 0.0008265676352960704 | 0.0009554902205764981 |
| 230.68496663328148 | 297.5539713890484 | 4.358485815 | 0.3035775507 | 0.0005954380988159729 | 0.0005375772946285878 | 0.0006562486138864852 |
| 297.5539713890484 | 370.80364178644834 | 4.174584227 | 0.3114122177 | 0.00046234087306921745 | 0.00040585236682554607 | 0.0005218113081099838 |
| 370.80364178644834 | 449.5864883525113 | 4.167288003 | 0.3116567441 | 0.00039863940401603667 | 0.00034367468739977347 | 0.00045645811427500577 |
| 449.5864883525113 | 533.055021614266 | 4.167288003 | 0.3116567441 | 0.0002401939888925597 | 0.00018960779033119313 | 0.0002937138849552715 |
| 533.055021614266 | 620.3617520987424 | 4.167288003 | 0.3116567441 | 0.00012087493836487684 | 7.126365983733605e-05 | 0.00017366595907072468 |
| 620.3617520987424 | 710.6591903329697 | 4.167288003 | 0.3116567441 | 6.009074032705385e-05 | 8.76415942019461e-06 | 0.00011471014328212509 |
| 710.6591903329697 | 803.0998468439778 | 4.167288003 | 0.3116567441 | 3.293341420201427e-05 | 0.0 | 9.132002615608178e-05 |
| 803.0998468439778 | 896.8362321587954 | 4.167288003 | 0.3116567441 | 7.659368852594007e-05 | 7.847706295811845e-06 | 0.00014971070904092466 |
Temperature Profiles

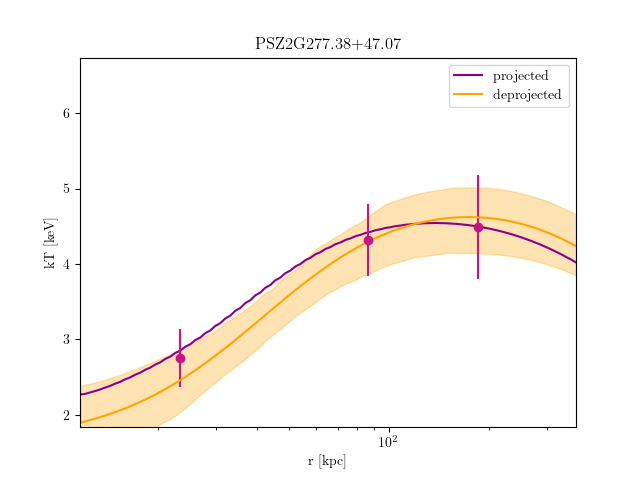

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G277.38+47.07_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 43.965393485955545 | 2.752385958 | 2.566889593 | 2.946771233 | 0.6490682371 | 0.4342643329 | 0.9337810862 | 0.002154386822 | 0.001918768269 | 0.00239574006 |
| 43.965393485955545 | 119.4789119385265 | 4.322249294 | 3.870144691 | 4.545405454 | 2.71347833e-07 | 0 | 0.07810840363 | 0.002319910691 | 0.002187232674 | 0.002460032585 |
| 119.4789119385265 | 230.68496663327582 | 4.493077239 | 3.999115894 | 5.200391846 | 0.5138041002 | 0.3079322192 | 0.7753639266 | 0.001863287302 | 0.001705185524 | 0.002025594125 |
