Cluster
PSZ2G287.96-32.99
Emission Measure Profiles

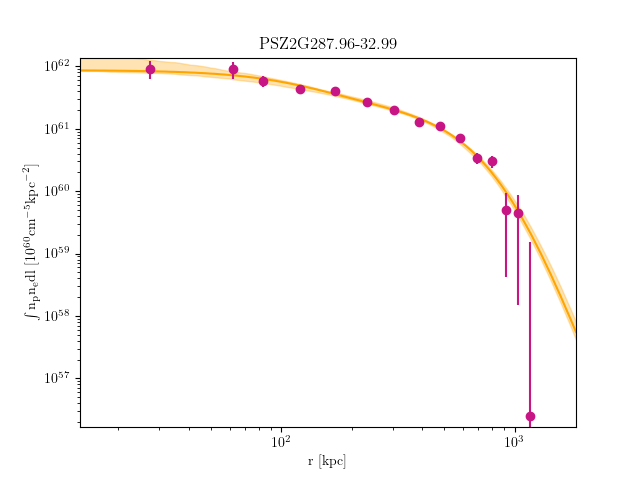

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G287.96-32.99_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 28.484371896519377 | 4.182551358 | 0.8518454632 | 0.0001091847599000041 | 7.924229963000298e-05 | 0.0001452553397000055 |
| 28.484371896519377 | 35.875161056511985 | 4.182551358 | 0.8518454632 | 6.305870986000439e-05 | 4.6379489780003234e-05 | 8.301335187000579e-05 |
| 35.875161056511985 | 51.12115562255626 | 4.182551358 | 0.8518454632 | 0.00011256734610000481 | 9.254799054000396e-05 | 0.00013499671390000578 |
| 51.12115562255626 | 73.64173160201179 | 4.182551358 | 0.8518454632 | 0.00018058345300000613 | 0.00015759503500000537 | 0.000205453987900007 |
| 73.64173160201179 | 102.85626500223813 | 4.254553665 | 0.8234025082 | 0.00030436020791690645 | 0.0002746410319926271 | 0.00033585963748378157 |
| 102.85626500223813 | 138.1841318305948 | 4.25374617 | 0.6851639071 | 0.00033537467950795234 | 0.00030343022881425074 | 0.00036904819261940694 |
| 138.1841318305948 | 179.04470809444143 | 4.164731527 | 0.5590379839 | 0.0003734233569254291 | 0.00033545082276388723 | 0.00041352690317020496 |
| 179.04470809444143 | 224.85736980113748 | 4.011780386 | 0.442725226 | 0.00034362733464037264 | 0.00030646709517167804 | 0.0003828089971084726 |
| 224.85736980113748 | 275.04149295804257 | 3.814499786 | 0.3370482894 | 0.00040331699935196156 | 0.0003618072171745547 | 0.00044689718860629267 |
| 275.04149295804257 | 329.0164535725164 | 3.590236419 | 0.230915139 | 0.0003380250733610187 | 0.0002977676892504345 | 0.00038035254811436074 |
| 329.0164535725164 | 386.2016276519182 | 3.355195902 | 0.1802840791 | 0.00020499331464311833 | 0.00016745508199997306 | 0.00024477233925892855 |
| 386.2016276519182 | 446.0163912036078 | 3.122053556 | 0.1575681848 | 0.000217703751408492 | 0.00017613924052882124 | 0.00026167061802896745 |
| 446.0163912036078 | 507.8801202349447 | 2.899808048 | 0.1456020431 | 4.2545130143865885e-05 | 5.2523942366374615e-06 | 8.255125182483952e-05 |
| 507.8801202349447 | 571.2121907532886 | 2.693777203 | 0.1370789682 | 4.4378680150798524e-05 | 3.1689411258100835e-06 | 8.855037773630358e-05 |
| 571.2121907532886 | 635.4319787659987 | 2.50655622 | 0.1305197115 | 2.816577210888491e-08 | 0.0 | 3.471382873423858e-05 |
Temperature Profiles

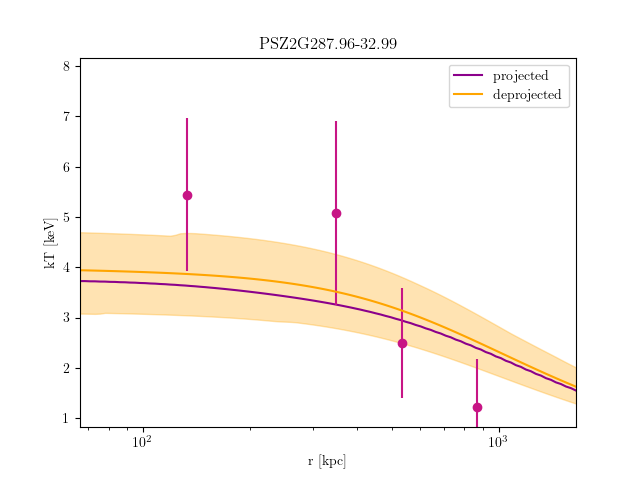

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G287.96-32.99_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 138.1841318305914 | 5.447444594 | 4.494712545 | 6.919226857 | 0.3240253809 | 0.03225671757 | 0.7617532625 | 0.001121190154 | 0.0009935038912 | 0.001247335215 |
| 138.1841318305914 | 224.857369801132 | 5.081113012 | 3.853107862 | 7.022267571 | 1.69541768e-17 | 0.5 | 0 | 0.0007968281731 | 0.0007255159059 | 0.0008852492688 |
| 224.857369801132 | 329.0164535725084 | 2.496494127 | 1.942834717 | 3.172875205 | 1.531325844e-12 | 0 | 0.1392942728 | 0.0009630517778 | 0.0008225017018 | 0.001132532958 |
| 329.0164535725084 | 571.2121907532747 | 1.230841111 | 0.9879519642 | 1.478624201 | 1.708891027e-07 | 0 | 0.0211879653 | 0.001064024681 | 0.0008177863933 | 0.001332735069 |
