Cluster
PSZ2G289.13+72.19
Emission Measure Profiles

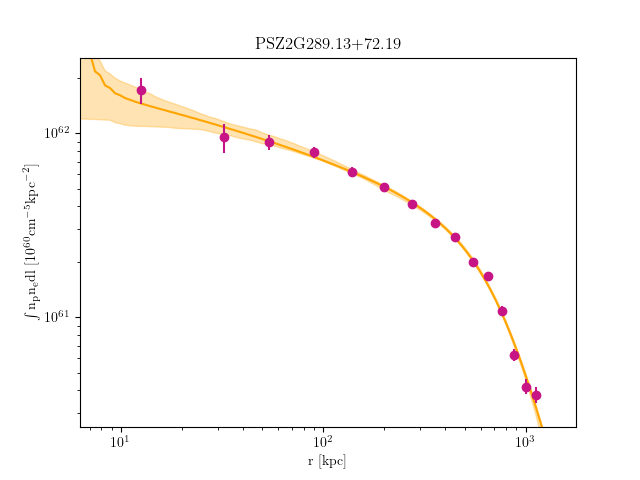

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G289.13+72.19_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 13.916754980442622 | 5.000182953 | 0.07058140355 | 2.9324389810001473e-05 | 2.488574174000125e-05 | 3.422285670000172e-05 |
| 13.916754980442622 | 21.734520813135077 | 5.000182953 | 0.07058140355 | 2.336493031000039e-05 | 1.937294803000032e-05 | 2.7808782170000466e-05 |
| 21.734520813135077 | 37.86129872868247 | 5.000182953 | 0.07058140355 | 7.557691899000357e-05 | 6.881009159000325e-05 | 8.273108863000392e-05 |
| 37.86129872868247 | 61.68292123927752 | 6.412821228 | 0.07390519667 | 0.00016446286680001383 | 0.00015485569060001301 | 0.00017442118300001465 |
| 61.68292123927752 | 92.585220857113 | 6.032406345 | 0.07630596932 | 0.00025890878430000815 | 0.00024589475750000773 | 0.0002723197861000086 |
| 92.585220857113 | 129.95403009438152 | 5.615616541 | 0.07535909677 | 0.0003761711289000149 | 0.0003606758856000143 | 0.00039204449580001555 |
| 129.95403009438152 | 173.17518146327598 | 5.116456755 | 0.07517080326 | 0.00047888402720002316 | 0.00046156454270002226 | 0.0004965668123000239 |
| 173.17518146327598 | 221.6345074759889 | 4.504966542 | 0.07128853671 | 0.0005505052186000239 | 0.000531652827800023 | 0.0005697198820000248 |
| 221.6345074759889 | 274.717840644713 | 3.888784606 | 0.06676690803 | 0.0006335610135639196 | 0.0006118305520107576 | 0.0006556977608251057 |
| 274.717840644713 | 331.81101348164145 | 3.352242266 | 0.06155515627 | 0.0006091551856020558 | 0.0005863619069407289 | 0.0006323901210676327 |
| 331.81101348164145 | 392.2998584989664 | 2.89706825 | 0.05964669862 | 0.0006495984532092303 | 0.0006249074876088723 | 0.0006747589811915952 |
| 392.2998584989664 | 455.5702082088808 | 2.522443694 | 0.05750030448 | 0.0005132169969982244 | 0.0004893111237681991 | 0.0005376212149514483 |
| 455.5702082088808 | 521.0078951235776 | 2.202083367 | 0.05658386124 | 0.0003523336199347404 | 0.00032910077373382064 | 0.0003761275302380212 |
| 521.0078951235776 | 587.9987517552491 | 1.938516284 | 0.05462596492 | 0.00027487240305995293 | 0.00025031864220526474 | 0.0003000908938093593 |
| 587.9987517552491 | 655.9286106160881 | 1.723262468 | 0.05350569429 | 0.00028198680170382455 | 0.00025476357557947154 | 0.00030994033841994976 |
Temperature Profiles

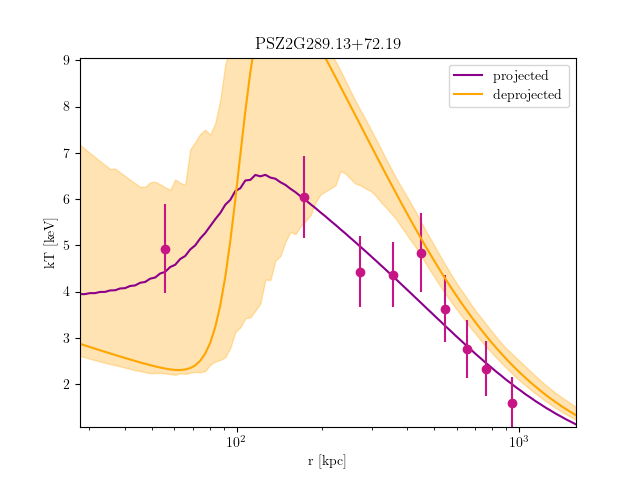

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G289.13+72.19_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 61.68292123927601 | 4.931011812 | 4.162053789 | 5.812687923 | 0.05902296059 | 0 | 0.2418080491 | 0.0002996874401 | 0.0002788037576 | 0.0003215647876 |
| 61.68292123927601 | 129.95403009437837 | 6.038796579 | 5.354877741 | 6.7990739 | 9.192623955e-10 | 0 | 0.06649364475 | 0.0006406596609 | 0.000618131144 | 0.0006637957762 |
| 129.95403009437837 | 173.17518146327174 | 4.427022456 | 3.941071654 | 5.095565699 | 0.01955090826 | 0 | 0.1582961614 | 0.0005012588503 | 0.0004703929742 | 0.0005278265544 |
| 173.17518146327174 | 221.6345074759835 | 4.363010367 | 3.959048199 | 4.922508299 | 7.174889105e-07 | 0 | 0.08587598086 | 0.0005673452476 | 0.0005398630975 | 0.0005915561513 |
| 221.6345074759835 | 274.7178406447063 | 4.840978009 | 4.2399553 | 5.605214664 | 1.417247575e-05 | 0 | 0.1002633267 | 0.0006167657149 | 0.0005893822195 | 0.0006387188967 |
| 274.7178406447063 | 331.8110134816334 | 3.632429231 | 3.18648224 | 4.202347296 | 0.1150418072 | 0 | 0.2783608918 | 0.0005805693668 | 0.0005373429599 | 0.0006269518972 |
| 331.8110134816334 | 392.29985849895684 | 2.7596297 | 2.418181843 | 3.169186323 | 0.02217092416 | 0 | 0.1427815801 | 0.0006686226495 | 0.0006082148678 | 0.0007195654185 |
| 392.29985849895684 | 455.57020820886964 | 2.333358651 | 2.058609178 | 2.688991415 | 0.09580160387 | 0 | 0.235437834 | 0.0005121841086 | 0.0004531400024 | 0.0005742346597 |
| 455.57020820886964 | 587.9987517552348 | 1.601780759 | 1.384452017 | 1.818333461 | 0.01415659596 | 0 | 0.07580791456 | 0.0007548063064 | 0.0006514156823 | 0.0008693641293 |
