Cluster
PSZ2G302.85-88.63
Emission Measure Profiles

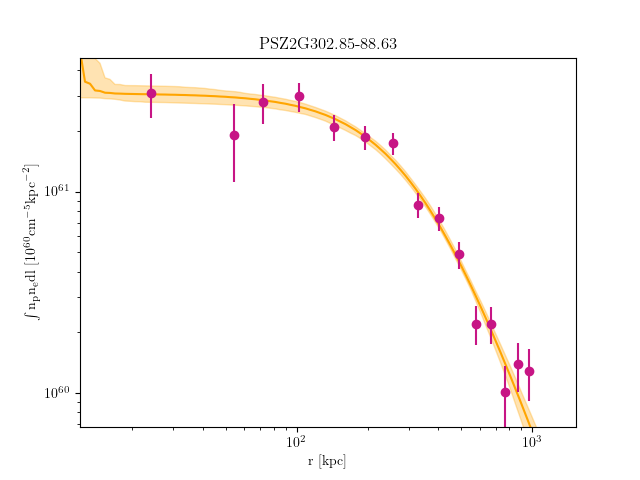

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G302.85-88.63_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 47.93152176316255 | 7.710470407 | 0.2289065837 | 8.450037941000142e-05 | 6.636167510000113e-05 | 0.00010515299960000177 |
| 47.93152176316255 | 59.71385472692235 | 7.710470407 | 0.2289065837 | 2.8869458460001554e-05 | 1.8339178240000987e-05 | 4.1992638660002264e-05 |
| 59.71385472692235 | 84.01888906793525 | 7.710470407 | 0.2289065837 | 0.00011605858540000337 | 9.380896701000272e-05 | 0.0001410867411000041 |
| 84.01888906793525 | 119.9209989754869 | 7.972238918 | 0.2891205779 | 0.0002601127445000122 | 0.0002262605150000106 | 0.0002967288155000139 |
| 119.9209989754869 | 166.49455863886294 | 8.244665342 | 0.2961647232 | 0.00033294861100001416 | 0.0002943844736000125 | 0.0003741325488000159 |
| 166.49455863886294 | 222.81394224734882 | 8.297367401 | 0.297679867 | 0.00048508200558634705 | 0.00043776583264392306 | 0.0005350821344695442 |
| 222.81394224734882 | 287.95352399023034 | 8.137215806 | 0.2868908191 | 0.0006883906886559477 | 0.0006305073474782842 | 0.0007489950695751707 |
| 287.95352399023034 | 360.987678056793 | 7.836271029 | 0.2837821557 | 0.0004839264819743329 | 0.0004326998159721283 | 0.0005378374936884123 |
| 360.987678056793 | 440.99077863632226 | 7.450505452 | 0.2678803773 | 0.0005652644088384805 | 0.000508168268453583 | 0.000625141030165733 |
| 440.99077863632226 | 527.0371999181043 | 7.03127427 | 0.2507105762 | 0.0004837628567437446 | 0.0004265853230969637 | 0.0005438079064369429 |
| 527.0371999181043 | 618.2013160914242 | 6.591989667 | 0.2520393162 | 0.000274346912976939 | 0.0002216041016947244 | 0.0003301575406356827 |
| 618.2013160914242 | 713.5575013455675 | 6.149171449 | 0.2533236331 | 0.0003334513238372321 | 0.00027423809366250516 | 0.00039594220682265073 |
| 713.5575013455675 | 812.1801298698202 | 5.728574068 | 0.2578502557 | 0.00018120570394947264 | 0.00012447053811884775 | 0.00024150062837241114 |
| 812.1801298698202 | 913.1435758534681 | 5.333568504 | 0.25621461 | 0.00028750332527389526 | 0.0002161715328150897 | 0.00036306677173327786 |
| 913.1435758534681 | 1015.5222134857959 | 4.967159834 | 0.2560482826 | 0.0003010252908819595 | 0.0002207685221459687 | 0.00038626538434968397 |
Temperature Profiles

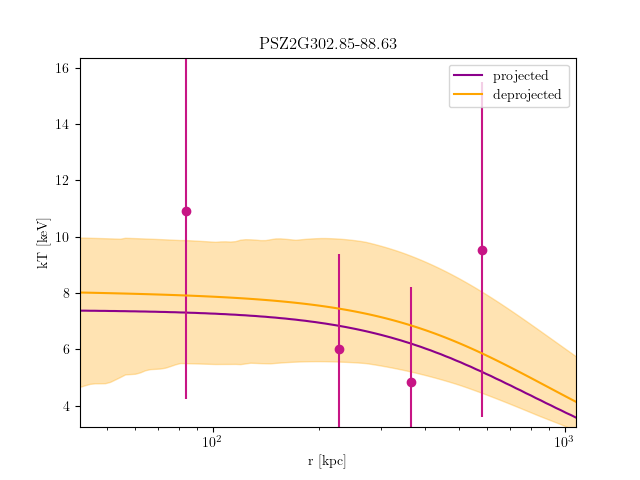

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G302.85-88.63_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 166.49455863885888 | 10.90717298 | 7.232763369 | 18.98099554 | 6.090877888e-05 | 0 | 0.5552042125 | 0.0008437554489 | 0.0007491836212 | 0.0009090793084 |
| 166.49455863885888 | 287.95352399022335 | 6.004624323 | 4.701422104 | 7.186997651 | 2.567353168e-10 | 0 | 0.1535155195 | 0.001332274994 | 0.001223876389 | 0.001438093517 |
| 287.95352399022335 | 440.9907786363115 | 4.85553799 | 3.955073221 | 6.41170859 | 0.4587976707 | 0.1187320171 | 0.9421376163 | 0.001096547883 | 0.0009415735211 | 0.001265497257 |
| 440.9907786363115 | 713.5575013455501 | 9.53085754 | 5.687770126 | 15.78610545 | 0.0006965191079 | 0 | 0.8802045343 | 0.001105080356 | 0.0009275899555 | 0.001206864157 |
