Cluster
PSZ2G309.49+37.31
Emission Measure Profiles

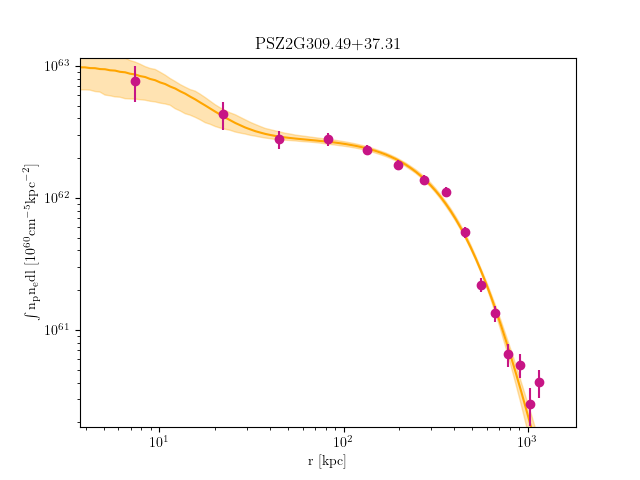

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G309.49+37.31_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.852887957668657 | 7.861023298 | 0.09501583346 | 4.272507496000265e-05 | 3.1270441300001936e-05 | 5.661600107000351e-05 |
| 7.852887957668657 | 15.60758534505599 | 7.861023298 | 0.09501583346 | 7.080367870000335e-05 | 5.567824694000264e-05 | 8.836486736000417e-05 |
| 15.60758534505599 | 31.604263327619808 | 7.861023298 | 0.09501583346 | 0.00018996708480000697 | 0.000164205491500006 | 0.000218189658000008 |
| 31.604263327619808 | 55.23370910530404 | 7.883959316 | 0.09467568624 | 0.0005139052638000268 | 0.00047071154230002456 | 0.0005595467972000291 |
| 55.23370910530404 | 85.88670987805263 | 8.651339487 | 0.08963161158 | 0.0009000036429000572 | 0.0008423258045000536 | 0.0009601227378000611 |
| 85.88670987805263 | 122.9540528458094 | 8.853390936 | 0.08707185232 | 0.0012450230500000651 | 0.001170311191000061 | 0.001322635726000069 |
| 122.9540528458094 | 165.82652520851843 | 8.763226853 | 0.08193076659 | 0.0015315308920000777 | 0.0014473022740000734 | 0.0016187031440000822 |
| 165.82652520851843 | 213.89491416612347 | 8.499959868 | 0.07892131008 | 0.0018326969880000947 | 0.0017345730480000897 | 0.0019340906260001 |
| 213.89491416612347 | 266.55000691856844 | 8.118925757 | 0.07049342204 | 0.0012558834757330078 | 0.0011710863072579088 | 0.0013440004110012557 |
| 266.55000691856844 | 323.1825906657976 | 7.657197389 | 0.06186708524 | 0.0006609181395504898 | 0.0005956629334685505 | 0.0007293749128624812 |
| 323.1825906657976 | 383.1834526077545 | 7.162047852 | 0.05656190853 | 0.000510630624266131 | 0.0004499512694045221 | 0.0005745862686177284 |
| 383.1834526077545 | 445.943379944383 | 6.671660534 | 0.05328315315 | 0.00030680561648500405 | 0.00025235463752903183 | 0.00036468621439369884 |
| 445.943379944383 | 510.8531598756273 | 6.199392113 | 0.05006669486 | 0.0003054291661798775 | 0.00024591645558419217 | 0.000368684449890298 |
| 510.8531598756273 | 577.3035796014315 | 5.76021164 | 0.04904492453 | 0.0001793195360129882 | 0.0001241243699954676 | 0.00023842047330354809 |
| 577.3035796014315 | 644.6854263217388 | 5.354779279 | 0.04649343061 | 0.0002994730473913087 | 0.000232419209255021 | 0.0003707343190044737 |
Temperature Profiles

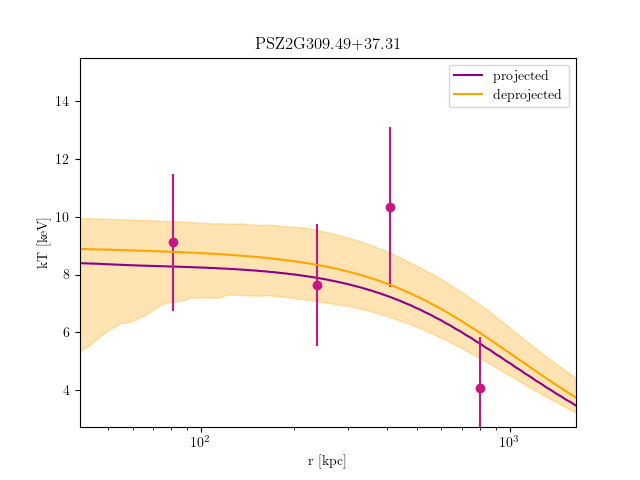

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G309.49+37.31_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 85.88670987805054 | 9.11612269 | 7.290039151 | 10.83105887 | 7.532944602e-05 | 0 | 0.1818965648 | 0.001729708316 | 0.001625760813 | 0.001828944792 |
| 85.88670987805054 | 165.82652520851437 | 7.636324923 | 6.648959421 | 9.440315016 | 0.1152496843 | 0 | 0.2827565902 | 0.002824635498 | 0.002652070894 | 0.002997164254 |
| 165.82652520851437 | 266.55000691856196 | 10.34002877 | 8.292784977 | 12.85724844 | 2.821219216e-05 | 0 | 0.2090664935 | 0.003063339257 | 0.002882500941 | 0.003200333535 |
| 266.55000691856196 | 577.3035796014174 | 4.074775073 | 3.232364107 | 4.845270136 | 1.209238828e-06 | 0 | 0.08099664864 | 0.002266521438 | 0.002087950005 | 0.002485462467 |
