Cluster
PSZ2G313.33+61.13
Emission Measure Profiles

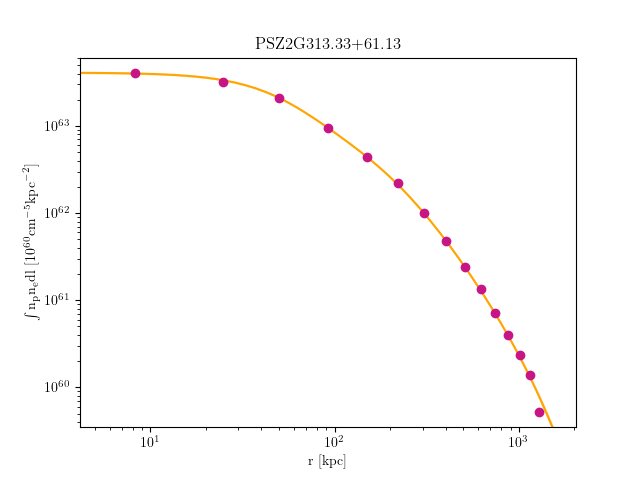

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G313.33+61.13_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 10.939579996284152 | 8.984170006 | 0.3133582209 | 0.0005204068546000277 | 0.0005147827220000276 | 0.0005260917184000281 |
| 10.939579996284152 | 21.7423741878728 | 9.451487075 | 0.322039414 | 0.0012174009780000837 | 0.0012086748370000833 | 0.0012261896270000844 |
| 21.7423741878728 | 44.02677954401478 | 9.846546707 | 0.3269403284 | 0.0032748237800001396 | 0.003260147864000139 | 0.00328956535600014 |
| 44.02677954401478 | 76.94412329656424 | 10.2914495 | 0.3300967906 | 0.0040847399130001455 | 0.0040684049270001445 | 0.004101139881000146 |
| 76.94412329656424 | 119.64573267737543 | 10.41413298 | 0.3338666901 | 0.003956431114000212 | 0.0039402082260002105 | 0.003972719714000213 |
| 119.64573267737543 | 171.28293491830237 | 10.36434604 | 0.3362321043 | 0.003534344596069487 | 0.003518898120645794 | 0.0035498569263803193 |
| 171.28293491830237 | 231.00705725119937 | 10.1119158 | 0.3387531598 | 0.0025667796126016417 | 0.002553623368248052 | 0.0025799998762586216 |
| 231.00705725119937 | 297.9694269079204 | 9.581253261 | 0.3385160023 | 0.0018228552642757386 | 0.0018115771590578496 | 0.0018341966972460122 |
| 297.9694269079204 | 371.3213711203198 | 8.663313956 | 0.3387351045 | 0.0012684435588033603 | 0.001258649159831099 | 0.0012783020448963438 |
| 371.3213711203198 | 450.2142171202519 | 7.335176498 | 0.3397362392 | 0.0009253079288433974 | 0.0009158253781600198 | 0.000934865963748553 |
| 450.2142171202519 | 533.7992921395705 | 5.766558026 | 0.3404933443 | 0.0006367385567972576 | 0.0006278557547013119 | 0.0006457062342219103 |
| 533.7992921395705 | 621.2279234101298 | 4.193337995 | 0.3414532275 | 0.0004290607821301988 | 0.00042084619449266443 | 0.00043736685287830467 |
| 621.2279234101298 | 711.6514381637841 | 2.877551319 | 0.3422742615 | 0.0003041696889538634 | 0.0002950508579131619 | 0.000313420773824079 |
| 711.6514381637841 | 804.221163632388 | 1.906782866 | 0.3428502674 | 0.00020802311552646223 | 0.0001984401751852824 | 0.00021772345702409534 |
| 804.221163632388 | 898.0884270477947 | 1.203710922 | 0.3439982096 | 8.962540713851281e-05 | 8.218442476793987e-05 | 9.71942708546777e-05 |
Temperature Profiles

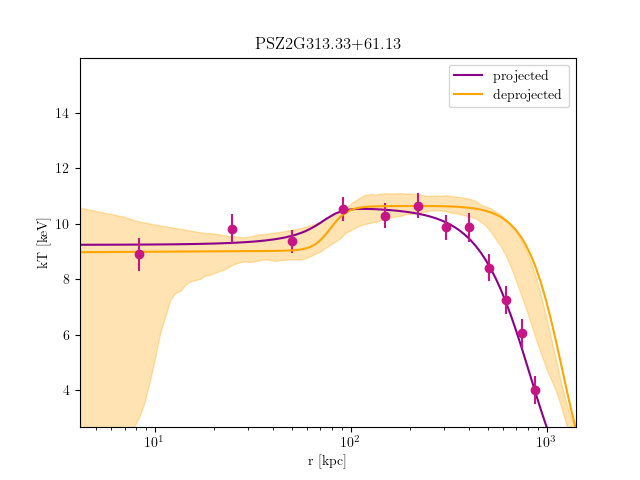

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G313.33+61.13_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 10.939579996283886 | 8.902888901 | 8.436283988 | 9.412731382 | 0.3067375044 | 0.2319575193 | 0.3864815483 | 0.0005210596664 | 0.0005117351407 | 0.0005302664813 |
| 10.939579996283886 | 21.742374187872272 | 9.825788065 | 9.460301801 | 10.22239922 | 0.3945267091 | 0.3365240801 | 0.4555171097 | 0.001202799145 | 0.001187754799 | 0.001217713609 |
| 21.742374187872272 | 44.026779544013706 | 9.377548166 | 9.152718303 | 9.60330627 | 0.3159796477 | 0.2824927185 | 0.3504167459 | 0.003279772289 | 0.003255007365 | 0.003304337313 |
| 44.026779544013706 | 76.94412329656237 | 10.53113883 | 10.28143148 | 10.78041128 | 0.3639546665 | 0.329606548 | 0.3991748277 | 0.004064592486 | 0.004035720999 | 0.004093315016 |
| 76.94412329656237 | 119.64573267737251 | 10.29699801 | 10.04635628 | 10.56337732 | 0.317124246 | 0.283140765 | 0.3516941221 | 0.003966219809 | 0.003937782139 | 0.003994616057 |
| 119.64573267737251 | 171.2829349182982 | 10.6572372 | 10.37758598 | 10.95946369 | 0.2779158068 | 0.240970703 | 0.3157715931 | 0.003566527285 | 0.003539112394 | 0.003593858003 |
| 171.2829349182982 | 231.00705725119377 | 9.868676292 | 9.566654894 | 10.16438382 | 0.3223535566 | 0.2799903179 | 0.3660022109 | 0.002562978126 | 0.002539804919 | 0.002585989934 |
| 231.00705725119377 | 297.96942690791315 | 9.880741335 | 9.492905687 | 10.26236355 | 0.2121704384 | 0.1609336608 | 0.2647700241 | 0.001853940352 | 0.001833595779 | 0.001874159418 |
| 297.96942690791315 | 371.32137112031074 | 8.423920433 | 8.076944602 | 8.788121825 | 0.3436539664 | 0.2802684719 | 0.4097226335 | 0.00126029808 | 0.001242434995 | 0.0012779438 |
| 371.32137112031074 | 450.2142171202409 | 7.250757293 | 6.899759107 | 7.64330058 | 0.2472512686 | 0.1716888347 | 0.3271690271 | 0.0009332444051 | 0.0009158235773 | 0.0009505166432 |
| 450.2142171202409 | 533.7992921395576 | 6.056441021 | 5.685735065 | 6.441839046 | 0.4668791765 | 0.3533377079 | 0.5913168315 | 0.0006076495449 | 0.0005896327737 | 0.0006254963165 |
| 533.7992921395576 | 621.2279234101146 | 4.01308061 | 3.678068934 | 4.37058825 | 0.4091803061 | 0.278003444 | 0.5616919274 | 0.0004147422499 | 0.000393672555 | 0.0004369228142 |
