Cluster
PSZ2G314.26-55.35
Emission Measure Profiles

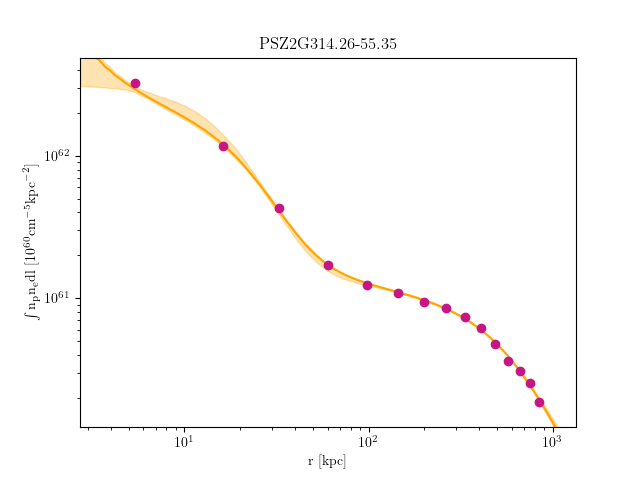

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G314.26-55.35_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 12.077861967800276 | 1.307327278 | 0.2629729207 | 6.441916732000275e-05 | 6.122561857000262e-05 | 6.77166874800029e-05 |
| 12.077861967800276 | 24.004705334445124 | 1.388789769 | 0.3105193946 | 6.770473231000486e-05 | 6.450190406000463e-05 | 7.10050890900051e-05 |
| 24.004705334445124 | 48.60784110541745 | 1.576429851 | 0.3884750672 | 0.00010451515027381313 | 0.00010054751478902845 | 0.00010857489122070374 |
| 48.60784110541745 | 84.95029066243593 | 2.46911242 | 0.456402599 | 0.00011185141093075126 | 0.00010767925663535416 | 0.00011610896417553438 |
| 84.95029066243593 | 132.09507538721934 | 3.313377086 | 0.5105366819 | 0.0001701748014991964 | 0.00016486517721276845 | 0.00017557003087507097 |
| 132.09507538721934 | 189.1052166614861 | 3.528854169 | 0.5542231333 | 0.00027035510234896823 | 0.000263402205139894 | 0.0002773984282656766 |
| 189.1052166614861 | 255.0437358669552 | 3.694909969 | 0.5903511091 | 0.0003700180304688627 | 0.00036190316355447574 | 0.0003782200739749995 |
| 255.0437358669552 | 328.973654385345 | 3.843347793 | 0.6208688966 | 0.0004974183786191226 | 0.00048815995356983426 | 0.0005068009721114315 |
| 328.973654385345 | 409.95799359837434 | 3.967840998 | 0.6470962998 | 0.0006016493176946075 | 0.000591375318527864 | 0.0006120460768483072 |
| 409.95799359837434 | 497.05977488776216 | 4.092556021 | 0.6699444292 | 0.0006585179839368821 | 0.0006468637999932933 | 0.0006703089605311175 |
| 497.05977488776216 | 589.3420196352266 | 4.198242512 | 0.690062036 | 0.0006424965640266901 | 0.0006303972458361929 | 0.0006547357004525957 |
| 589.3420196352266 | 685.8677492224866 | 4.299579511 | 0.7079216844 | 0.0005989151848192017 | 0.0005858154977024097 | 0.0006121742504386784 |
| 685.8677492224866 | 785.6999850312609 | 4.385772208 | 0.7238872149 | 0.0006150537668665343 | 0.0006004950811828348 | 0.0006297912898310792 |
| 785.6999850312609 | 887.9017484432684 | 4.467395802 | 0.7382271636 | 0.0005898803709252991 | 0.0005740665965920809 | 0.0006058951565456119 |
| 887.9017484432684 | 991.5360608402269 | 4.542663547 | 0.7511606554 | 0.0004907721056736855 | 0.0004734321894927203 | 0.0005083599444834669 |
Temperature Profiles

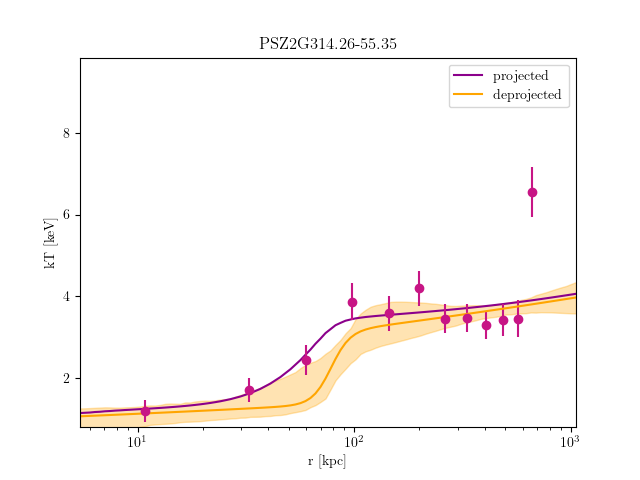

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G314.26-55.35_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 24.004705334444537 | 1.203377817 | 1.150844061 | 1.261198227 | 0.1125471859 | 0.08238118033 | 0.1533625729 | 0.000189933927 | 0.0001702477188 | 0.000210255471 |
| 24.004705334444537 | 48.60784110541627 | 1.710116291 | 1.581091031 | 1.862884053 | 0.1660567823 | 0.0964907325 | 0.2690458828 | 0.0001339434333 | 0.0001179497764 | 0.0001507870535 |
| 48.60784110541627 | 84.95029066243386 | 2.442577636 | 2.215475889 | 2.71002379 | 0.2092520333 | 0.1035607794 | 0.3501855303 | 0.0001295036354 | 0.0001167998038 | 0.0001431673337 |
| 84.95029066243386 | 132.09507538721613 | 3.873761492 | 3.515665822 | 4.273554929 | 0.4090707231 | 0.2456559717 | 0.6082181742 | 0.0001728685276 | 0.0001604535771 | 0.0001856326195 |
| 132.09507538721613 | 189.10521666148148 | 3.583812748 | 3.285078157 | 3.946032078 | 0.3518002111 | 0.2215226768 | 0.5140106579 | 0.0002899919619 | 0.000270652827 | 0.0003095345199 |
| 189.10521666148148 | 255.04373586694896 | 4.198816871 | 3.890014694 | 4.565006889 | 0.3907601121 | 0.2601177066 | 0.5439491228 | 0.0003892332259 | 0.0003684780415 | 0.0004103191994 |
| 255.04373586694896 | 328.97365438533706 | 3.457253187 | 3.226267216 | 3.700007847 | 0.289209382 | 0.1938358043 | 0.3963234578 | 0.0005661092355 | 0.0005380582636 | 0.0005965543048 |
| 328.97365438533706 | 409.95799359836434 | 3.480324669 | 3.265551045 | 3.696781618 | 0.366905788 | 0.269702371 | 0.4742028745 | 0.0006708517403 | 0.0006400230984 | 0.000704331159 |
| 409.95799359836434 | 497.05977488775 | 3.293133962 | 3.079702753 | 3.519695793 | 0.3647659035 | 0.2636535445 | 0.478441125 | 0.0007458261548 | 0.0007075236551 | 0.0007871530317 |
| 497.05977488775 | 589.3420196352123 | 3.422485526 | 3.15621333 | 3.716220663 | 0.4032398515 | 0.2747342766 | 0.5497029628 | 0.0007167386233 | 0.0006738675886 | 0.0007645124324 |
| 589.3420196352123 | 685.8677492224699 | 3.451528924 | 3.087781919 | 3.825135541 | 0.4563947659 | 0.2814736501 | 0.654310688 | 0.0006576175496 | 0.0006092829586 | 0.000716376564 |
| 685.8677492224699 | 785.6999850312417 | 6.560779506 | 6.054101733 | 7.148852228 | 2.579647319 | 2.015892287 | 3.335886039 | 0.0004513883086 | 0.000409889331 | 0.0004902897505 |
