Cluster
PSZ2G315.56-37.04
Emission Measure Profiles

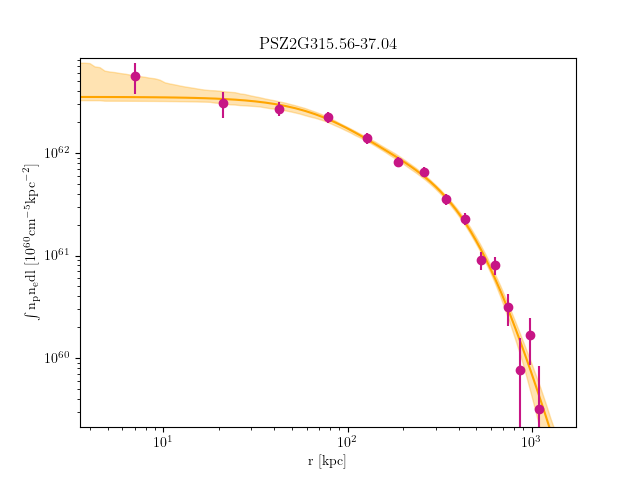

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G315.56-37.04_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.720205274890465 | 5.316178576 | 0.2267165301 | 3.348150243000189e-05 | 2.3629644380001334e-05 | 4.5653230090002584e-05 |
| 7.720205274890465 | 15.343879010974225 | 5.316178576 | 0.2267165301 | 5.297424969000255e-05 | 3.992165652000192e-05 | 6.84038237400033e-05 |
| 15.343879010974225 | 31.070276535990864 | 5.316178576 | 0.2267165301 | 0.00019544801840001188 | 0.00017030306370001037 | 0.00022281695810001353 |
| 31.070276535990864 | 54.30047833168457 | 5.33080993 | 0.2378636738 | 0.00043721163310002007 | 0.0003994802184000183 | 0.0004771069024000219 |
| 54.30047833168457 | 84.43556487979961 | 5.830771198 | 0.2164998787 | 0.0005731055422000211 | 0.0005293388750000195 | 0.0006189855826000228 |
| 84.43556487979961 | 120.87661666208001 | 5.995939803 | 0.1656464346 | 0.0006066684951000343 | 0.0005599828455000316 | 0.0006555271171000371 |
| 120.87661666208001 | 163.02471416027015 | 5.95090789 | 0.1235279639 | 0.0007764496898212934 | 0.0007213658811925847 | 0.0008337810613051282 |
| 163.02471416027015 | 210.28093785611406 | 5.767010177 | 0.08591908999 | 0.0006217904231039387 | 0.0005700769965811524 | 0.0006758289687387888 |
| 210.28093785611406 | 262.04636823135604 | 5.502722634 | 0.06243034659 | 0.000551646725749422 | 0.0004983649121503439 | 0.0006074364978612427 |
| 262.04636823135604 | 317.7220857677404 | 5.189637593 | 0.03797975252 | 0.0002867530468037123 | 0.00023735616001293583 | 0.0003393796191302556 |
| 317.7220857677404 | 376.70917094701105 | 4.854043011 | 0.02052281647 | 0.00032974630798376323 | 0.00027208789824443956 | 0.00039109578607131464 |
| 376.70917094701105 | 438.40870425091225 | 4.645379079 | 0.007812084537 | 0.00015578716570164512 | 0.00010459011789318641 | 0.0002105480244960528 |
| 438.40870425091225 | 502.22176616118827 | 4.645379079 | 0.007812084537 | 4.498427781346539e-05 | 0.0 | 9.408614513016134e-05 |
| 502.22176616118827 | 567.5494371595835 | 4.645379079 | 0.007812084537 | 0.00011528640159694616 | 6.190492569457935e-05 | 0.00017220840538168563 |
| 567.5494371595835 | 633.7927977278417 | 4.645379079 | 0.007812084537 | 2.4982011200981863e-05 | 0.0 | 8.295233221634386e-05 |
Temperature Profiles

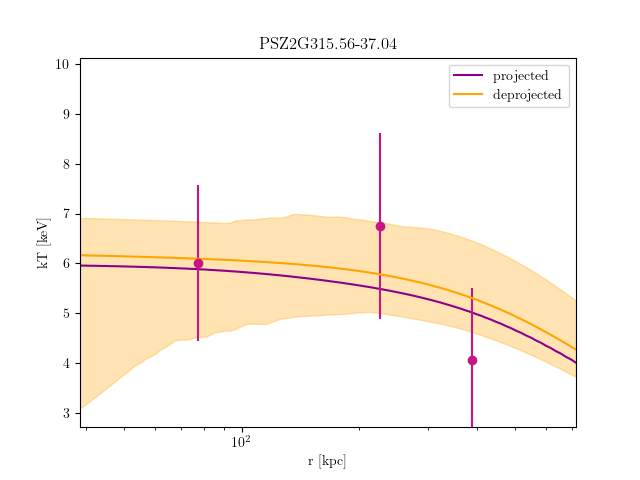

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G315.56-37.04_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 84.43556487979755 | 6.007492213 | 5.069192348 | 7.272191867 | 0.1865300754 | 0.01608202759 | 0.4062826009 | 0.001274794288 | 0.001176077131 | 0.001379121323 |
| 84.43556487979755 | 163.02471416026617 | 6.755441177 | 5.49750028 | 8.51059864 | 0.1975042852 | 0.006617487557 | 0.4394429416 | 0.001328987772 | 0.001221318361 | 0.001443332699 |
| 163.02471416026617 | 262.0463682313497 | 4.068291757 | 3.322900045 | 5.155902496 | 1.832593954e-17 | 0 | 0.1015023606 | 0.001344321765 | 0.00120786389 | 0.001504380565 |
