Cluster
PSZ2G318.14-29.57
Emission Measure Profiles

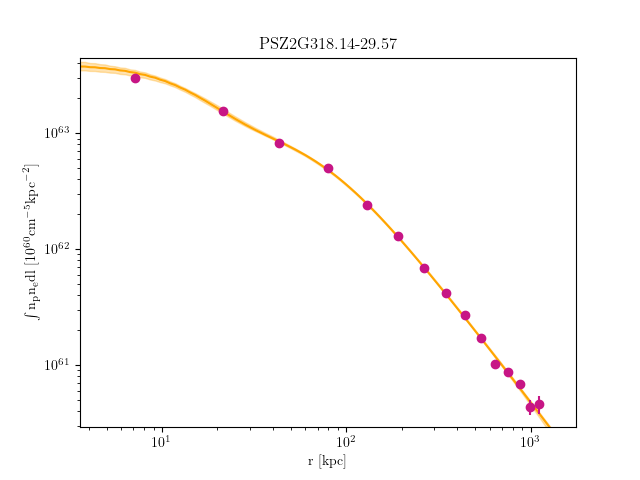

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G318.14-29.57_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.2884582960793 | 4.604010041 | 0.6268965811 | 0.00021123793210000848 | 0.000199091888700008 | 0.000223864849000009 |
| 8.2884582960793 | 16.47327975801145 | 5.006909654 | 0.5802389358 | 0.00032553493530001543 | 0.00031040232930001476 | 0.0003411464510000162 |
| 16.47327975801145 | 33.35723366758085 | 5.823643076 | 0.4804771431 | 0.0007135500205000407 | 0.0006908885532000393 | 0.0007366956128000419 |
| 33.35723366758085 | 58.297316468144146 | 7.00638767 | 0.3906421484 | 0.0011670286330000958 | 0.0011367889530000935 | 0.0011977904630000983 |
| 58.297316468144146 | 90.65052460305809 | 9.606268867 | 0.3143519323 | 0.0011915102020000786 | 0.0011600120170000765 | 0.0012235544470000806 |
| 90.65052460305809 | 129.7738545156792 | 9.152754381 | 0.2608592719 | 0.00115681399400006 | 0.0011257521000000586 | 0.0011884095460000619 |
| 129.7738545156792 | 175.0243026493643 | 7.355276416 | 0.215924796 | 0.0009705559432066541 | 0.000941399574695185 | 0.0010002495585849783 |
| 175.0243026493643 | 225.75886544747 | 5.660049361 | 0.1730063517 | 0.0008707229554724796 | 0.0008418066713598847 | 0.0009002037482031267 |
| 225.75886544747 | 281.33453935335285 | 4.259099853 | 0.139329117 | 0.0007827140411618866 | 0.0007531438015394573 | 0.0008129059462225418 |
| 281.33453935335285 | 341.10832081036983 | 3.213676816 | 0.1111236253 | 0.000654239275133128 | 0.0006241226680081317 | 0.0006850733523270618 |
| 341.10832081036983 | 404.43720626187735 | 2.449442394 | 0.08328855139 | 0.0004996162372270917 | 0.00046912188482036555 | 0.0005309858431588721 |
| 404.43720626187735 | 470.67819215123194 | 1.903272314 | 0.05911174395 | 0.0005180505764544315 | 0.0004786086121427064 | 0.0005587973311667943 |
| 470.67819215123194 | 539.1882749217907 | 1.503713935 | 0.04126464132 | 0.0004851045455732364 | 0.0004404956081865877 | 0.0005313175337955421 |
| 539.1882749217907 | 609.3244510169103 | 1.216087734 | 0.02444730724 | 0.00036136757086577335 | 0.00031139322853081995 | 0.0004134064614002747 |
| 609.3244510169103 | 680.4437168799468 | 1.001200585 | 0.006896887643 | 0.00043463594036453917 | 0.0003621491139420004 | 0.0005104485113092027 |
Temperature Profiles

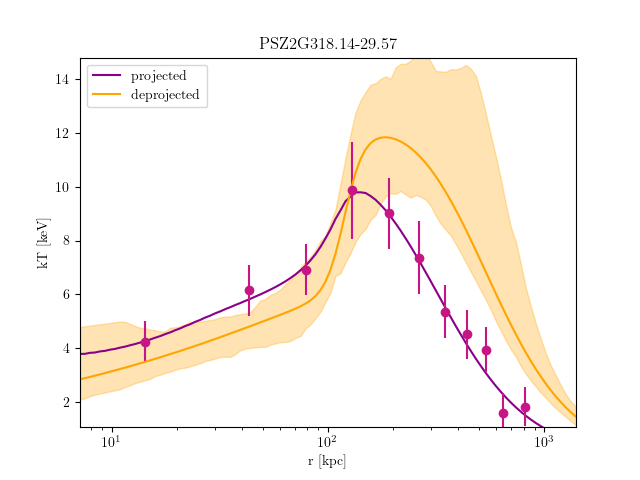

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G318.14-29.57_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 16.47327975801105 | 4.223795788 | 3.873780857 | 4.641698786 | 0.4691098231 | 0.2876649275 | 0.6954895013 | 0.0005736384968 | 0.0005321193692 | 0.0006143920723 |
| 16.47327975801105 | 33.35723366758004 | 6.149193538 | 5.551761779 | 6.894964048 | 0.6191983076 | 0.4356781623 | 0.8420297554 | 0.00068650109 | 0.0006471942747 | 0.0007253450502 |
| 33.35723366758004 | 58.297316468142725 | 6.916304104 | 6.277766533 | 7.637123799 | 0.6481974228 | 0.4873201141 | 0.8367621394 | 0.001106285873 | 0.001055728745 | 0.001156469858 |
| 58.297316468142725 | 90.65052460305587 | 9.863813517 | 8.387202274 | 11.70588386 | 0.07701657571 | 0 | 0.24913932 | 0.001243579259 | 0.001193926435 | 0.001290386192 |
| 90.65052460305587 | 129.77385451567602 | 9.014403767 | 8.1180433 | 10.40648622 | 0.03124595355 | 0 | 0.1844901747 | 0.001209538394 | 0.001162828634 | 0.001249388628 |
| 129.77385451567602 | 175.02430264936004 | 7.361272051 | 6.321959984 | 8.668818688 | 0.2523186076 | 0.09226566296 | 0.4339796492 | 0.000961083141 | 0.00091540712 | 0.001006863204 |
| 175.02430264936004 | 225.75886544746447 | 5.362022409 | 4.781920024 | 6.213349748 | 0.4200824718 | 0.2437297944 | 0.6298006606 | 0.0008250593969 | 0.000775028249 | 0.0008743779214 |
| 225.75886544746447 | 281.334539353346 | 4.521104267 | 3.951225002 | 5.1676434 | 0.1171493145 | 0 | 0.2845339692 | 0.0007725405458 | 0.0007214616692 | 0.00082906816 |
| 281.334539353346 | 341.10832081036153 | 3.95042954 | 3.448708002 | 4.475050763 | 1.940874739e-07 | 0 | 0.09768170852 | 0.000639795736 | 0.0005982393795 | 0.000671248877 |
| 341.10832081036153 | 404.4372062618675 | 1.601052447 | 1.368783984 | 1.87738654 | 0.01668586013 | 0 | 0.1050795937 | 0.0006722292869 | 0.00055560808 | 0.0007911059324 |
| 404.4372062618675 | 539.1882749217775 | 1.824593297 | 1.586805668 | 2.103622662 | 1.49585931e-15 | 0 | 0.01493369519 | 0.001012617393 | 0.0009075647317 | 0.001122351296 |
