Cluster
PSZ2G322.63-49.15
Emission Measure Profiles

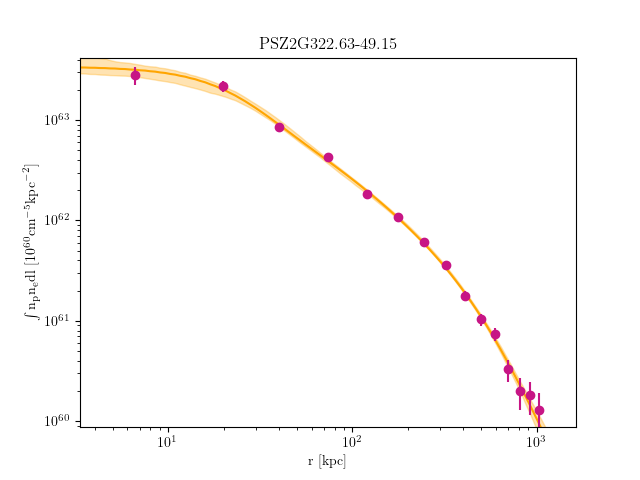

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G322.63-49.15_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 7.840204081166339 | 4.283503528 | 0.1695218654 | 0.000179782004700011 | 0.00014783866250000902 | 0.0002160109465000132 |
| 7.840204081166339 | 15.58237618810848 | 4.283503528 | 0.1695218654 | 0.00041557524710002073 | 0.0003693295843000184 | 0.0004654938443000232 |
| 15.58237618810848 | 31.55321655665412 | 4.283503528 | 0.1695218654 | 0.0006671410300000258 | 0.0006099310823000235 | 0.0007277456862000281 |
| 31.55321655665412 | 55.14449637887355 | 4.915135446 | 0.1880149347 | 0.0009153956145000489 | 0.0008551509885000456 | 0.0009783113242000522 |
| 55.14449637887355 | 85.74798684683711 | 5.361366817 | 0.1784228109 | 0.0008332927952000288 | 0.0007762151903000266 | 0.0008928915794000307 |
| 85.74798684683711 | 122.75545915261495 | 5.484675881 | 0.1585951165 | 0.0008640783884000424 | 0.0008041200898000394 | 0.0009266331623000454 |
| 122.75545915261495 | 165.55868448827746 | 5.426679599 | 0.1398246535 | 0.0007830187896904335 | 0.0007285240823418441 | 0.0008397560521158974 |
| 165.55868448827746 | 213.54943404589483 | 5.258175661 | 0.1181978673 | 0.0006890876772021162 | 0.0006383589854801352 | 0.0007419160423981756 |
| 213.54943404589483 | 266.11947901753734 | 5.017193639 | 0.09004156824 | 0.0004699590600132879 | 0.0004237938672204021 | 0.0005183006230555747 |
| 266.11947901753734 | 322.6605905952756 | 4.731943364 | 0.08116773499 | 0.0003593864395913872 | 0.0003156921191375342 | 0.00040532205782691633 |
| 322.6605905952756 | 382.56453997117944 | 4.425933531 | 0.07327337807 | 0.0003280447170929784 | 0.0002830286403770398 | 0.00037540733088341086 |
| 382.56453997117944 | 445.22309833731924 | 4.118415922 | 0.06800008371 | 0.0001789845335930358 | 0.00013727368734372692 | 0.00022322117822814728 |
| 445.22309833731924 | 510.02803688576546 | 3.823328911 | 0.06117163113 | 0.00012934009152047168 | 8.598050678400098e-05 | 0.00017540172608196018 |
| 510.02803688576546 | 576.3711268085884 | 3.548532321 | 0.05799330675 | 0.00013656955169076074 | 8.860159262029958e-05 | 0.00018750907300125113 |
| 576.3711268085884 | 643.6441392978579 | 3.495764141 | 0.05796277697 | 0.00011212997518811088 | 6.241999275240102e-05 | 0.00016484923144642616 |
Temperature Profiles

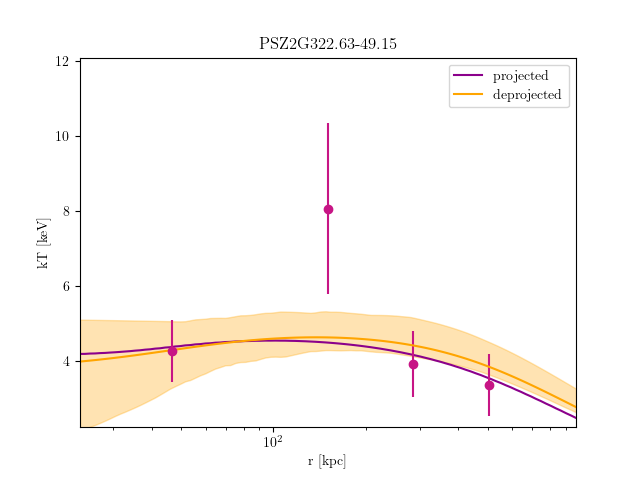

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G322.63-49.15_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 55.144496378872205 | 4.279590129 | 3.727438965 | 4.838623733 | 0.1112216694 | 0 | 0.2804340922 | 0.002209678576 | 0.002043103228 | 0.002399244625 |
| 55.144496378872205 | 122.75545915261196 | 8.06162402 | 6.492737335 | 10.89236439 | 0.3159229954 | 0.04986472149 | 0.6322274921 | 0.001529192503 | 0.00140718701 | 0.001649201763 |
| 122.75545915261196 | 213.54943404588963 | 3.936046288 | 3.36622735 | 4.644282192 | 0.005794492979 | 0 | 0.1879996028 | 0.001675624559 | 0.00152049679 | 0.001827694861 |
| 213.54943404588963 | 382.56453997117006 | 3.367821658 | 2.767060072 | 3.88684245 | 5.03147696e-12 | 0 | 0.1563392897 | 0.001317396294 | 0.001172503172 | 0.001478032583 |
