Cluster
PSZ2G322.77+59.52
Emission Measure Profiles

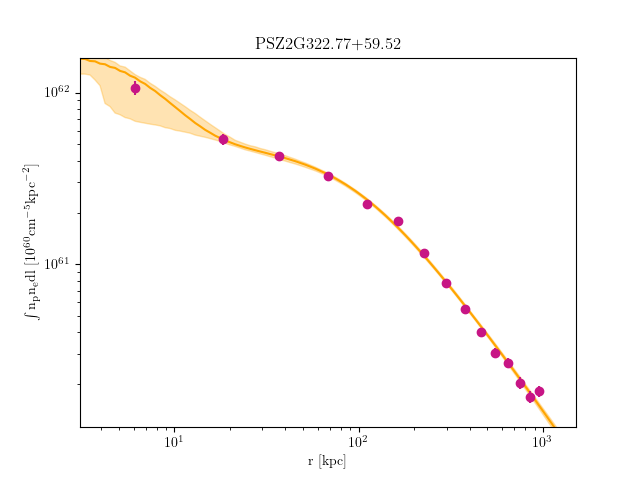

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G322.77+59.52_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 15.605898700642154 | 3.690393608 | 0.6407226819 | 3.2833032413047556e-05 | 3.0006150399439146e-05 | 3.582463856783197e-05 |
| 15.605898700642154 | 31.016665100730815 | 3.690393608 | 0.6407226819 | 4.854392286740666e-05 | 4.5013961639465057e-05 | 5.224023241747184e-05 |
| 31.016665100730815 | 62.80656678892411 | 3.741520696 | 0.581854149 | 0.00016091857217715564 | 0.00015405624109751935 | 0.00016796664052893268 |
| 62.80656678892411 | 109.76492645821607 | 3.589888677 | 0.487065125 | 0.00033513854374400123 | 0.000323109016796141 | 0.0003474314709593085 |
| 109.76492645821607 | 170.68106680160085 | 3.662715013 | 0.4165976915 | 0.0004860625119263785 | 0.00046902090909968497 | 0.0005034547948535125 |
| 170.68106680160085 | 244.34431051207227 | 3.868530599 | 0.3577631908 | 0.0006914382527643775 | 0.0006671230308619324 | 0.0007162393650493156 |
| 244.34431051207227 | 329.54398028262466 | 3.635626381 | 0.3119866413 | 0.0007137826013873116 | 0.0006859748872725162 | 0.0007421774832409608 |
| 329.54398028262466 | 425.0693988062518 | 3.289130184 | 0.2734300423 | 0.0007037715659336566 | 0.0006740637683316191 | 0.0007341117269387749 |
| 425.0693988062518 | 529.7098887759478 | 2.918225583 | 0.2346668063 | 0.0006946968492474383 | 0.000663954152207309 | 0.0007260732036219552 |
| 529.7098887759478 | 642.2547728847071 | 2.559496152 | 0.2017450171 | 0.0006663143745330006 | 0.0006338622551038231 | 0.0006994419203311302 |
| 642.2547728847071 | 761.4933738255232 | 2.276864464 | 0.1763994961 | 0.0006438471491022865 | 0.000606092568527937 | 0.0006824662076333585 |
| 761.4933738255232 | 886.2150142913902 | 2.040257537 | 0.1529168352 | 0.0006906841192934297 | 0.0006469096775079345 | 0.0007355252270054661 |
| 886.2150142913902 | 1015.2090169753027 | 1.872679732 | 0.1361604736 | 0.0006310026196892691 | 0.0005853040058751919 | 0.0006778354452509871 |
| 1015.2090169753027 | 1147.2647045702547 | 1.872679732 | 0.1361604736 | 0.0006067986548527349 | 0.0005605028224641744 | 0.0006541883209317074 |
| 1147.2647045702547 | 1281.171399769239 | 1.872679732 | 0.1361604736 | 0.0007475533457417904 | 0.0006969572676826304 | 0.0007992512591385545 |
Temperature Profiles

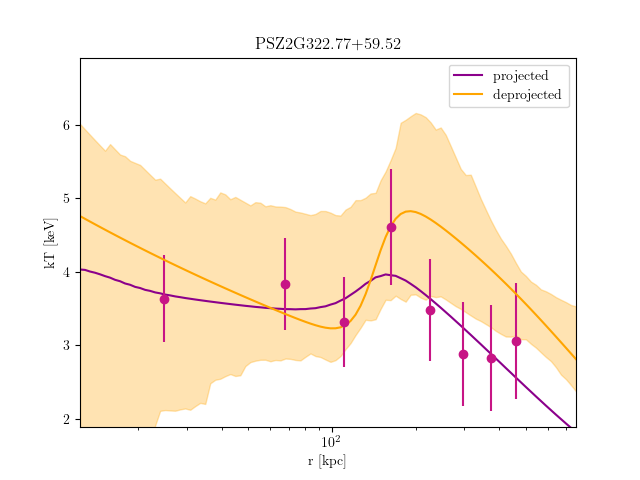

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G322.77+59.52_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 62.80656678892258 | 3.635708731 | 3.327316006 | 3.974929946 | 0.4897641909 | 0.3212519215 | 0.6983665409 | 0.000241624795 | 0.0002235188119 | 0.0002597820065 |
| 62.80656678892258 | 109.7649264582134 | 3.832927698 | 3.47987383 | 4.237167593 | 0.8595902033 | 0.6024402236 | 1.189481544 | 0.0002082414738 | 0.0001893427079 | 0.0002273549555 |
| 109.7649264582134 | 170.6810668015967 | 3.319902131 | 2.967877047 | 3.692848651 | 0.2342825597 | 0.1040981983 | 0.3982187831 | 0.0003326007445 | 0.0003073547101 | 0.0003595494786 |
| 170.6810668015967 | 244.3443105120663 | 4.610812352 | 4.054619514 | 5.26906604 | 0.261840439 | 0.07614425864 | 0.4896174703 | 0.0004221049385 | 0.0003918086113 | 0.0004522185191 |
| 244.3443105120663 | 329.5439802826166 | 3.484031142 | 3.051147446 | 4.013138016 | 0.5297059445 | 0.3051733426 | 0.8447396628 | 0.0003910827396 | 0.0003509788692 | 0.0004320712081 |
| 329.5439802826166 | 425.06939880624145 | 2.885315674 | 2.447780438 | 3.46817667 | 0.1187589473 | 0 | 0.3232502751 | 0.0004571262413 | 0.0004044396291 | 0.0005125472761 |
| 425.06939880624145 | 529.7098887759349 | 2.829165146 | 2.432175075 | 3.486320464 | 0.0001954120735 | 0 | 0.1494056307 | 0.0004748109975 | 0.0004220391088 | 0.0005053417753 |
| 529.7098887759349 | 642.2547728846915 | 3.055457141 | 2.524384814 | 3.745644258 | 0.2520650609 | 0.07781265881 | 0.5252488993 | 0.0003850275693 | 0.0003385438427 | 0.000435424165 |
