Cluster
PSZ2G340.46-52.20
Emission Measure Profiles

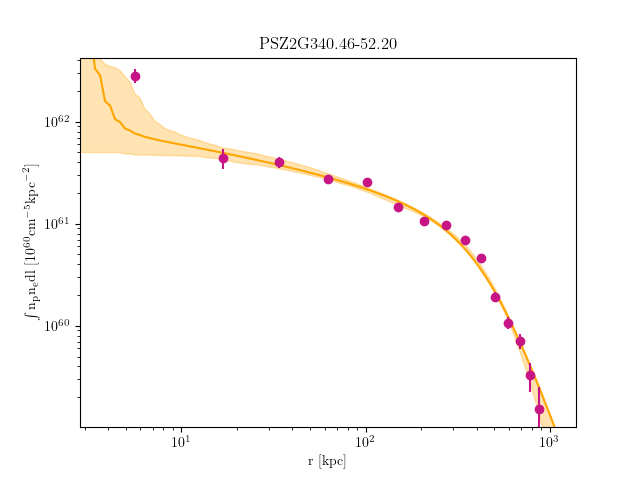

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G340.46-52.20_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 12.197607805848884 | 2.508809685 | 0.6709031862 | 5.088963254000253e-05 | 4.394767340000218e-05 | 5.8514126270002906e-05 |
| 12.197607805848884 | 24.242699738177038 | 2.508809685 | 0.6709031862 | 2.3485030470001084e-05 | 1.8681220630000864e-05 | 2.8989492600001337e-05 |
| 24.242699738177038 | 49.08976304527895 | 2.508809685 | 0.6709031862 | 8.83227412400044e-05 | 7.83682486300039e-05 | 9.899082780000493e-05 |
| 49.08976304527895 | 85.7925294440155 | 2.515699905 | 0.666905787 | 0.0001644292022000091 | 0.00015052889740000834 | 0.00017905561040000993 |
| 85.7925294440155 | 133.40473065124763 | 2.7441136 | 0.5098767914 | 0.00032135675530001835 | 0.0003003544206000171 | 0.0003431753256000196 |
| 133.40473065124763 | 190.98009838383598 | 2.807222793 | 0.3808058086 | 0.00032946437710001545 | 0.0003072235405000144 | 0.00035254142680001655 |
| 190.98009838383598 | 257.57236435864166 | 2.777567667 | 0.2731722703 | 0.0003822786159964815 | 0.00035639585772941665 | 0.0004090764895924976 |
| 257.57236435864166 | 332.23526029252537 | 2.691318085 | 0.1869500153 | 0.0005158398823715618 | 0.00048082496538694386 | 0.000552041405923492 |
| 332.23526029252537 | 414.022517902348 | 2.567943484 | 0.1089435635 | 0.0005063520869109416 | 0.00046898257131228107 | 0.0005449770806412359 |
| 414.022517902348 | 501.9878689049708 | 2.421864938 | 0.04318737094 | 0.0004453873044168782 | 0.00040704688154059187 | 0.0004850273250687358 |
| 501.9878689049708 | 595.1850450172539 | 2.265260924 | 1 | 0.00023847237328912237 | 0.00021581604128162533 | 0.0002619188268364532 |
| 595.1850450172539 | 692.6677779560586 | 2.107907082 | 1 | 0.0001628797183354803 | 0.00014156925143280567 | 0.00018501895157638787 |
| 692.6677779560586 | 793.4897994382459 | 1.956867546 | 1 | 0.000129036589627076 | 0.000107495326134278 | 0.00015153628807721559 |
| 793.4897994382459 | 896.7048411806768 | 1.816248491 | 1 | 6.897793909876608e-05 | 4.7753235810867525e-05 | 9.149541424092375e-05 |
| 896.7048411806768 | 1001.3666349002112 | 1.784338989 | 1 | 3.6510065355421664e-05 | 1.4034852483575042e-05 | 6.061649033775279e-05 |
Temperature Profiles

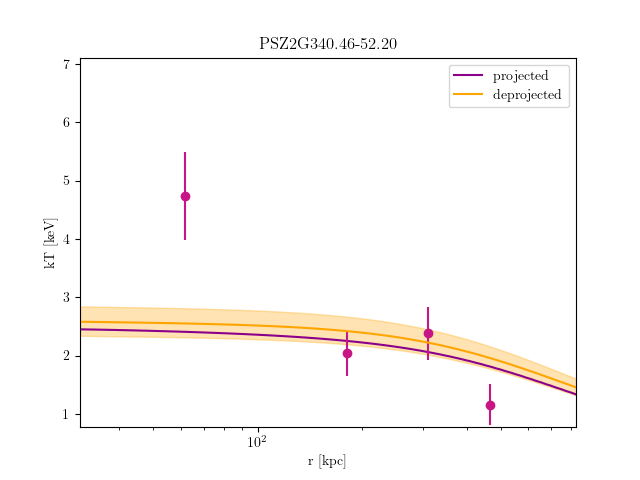

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G340.46-52.20_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 133.40473065124436 | 4.740508457 | 4.114567914 | 5.492741016 | 0.7315588285 | 0.4055249618 | 1.178588837 | 0.0006313484216 | 0.0005645086725 | 0.0006975170406 |
| 133.40473065124436 | 257.57236435863535 | 2.036566251 | 1.838798477 | 2.31931564 | 3.285646151e-11 | 0 | 0.05223846097 | 0.0009677806601 | 0.0008845926987 | 0.00103602948 |
| 257.57236435863535 | 414.0225179023379 | 2.379557803 | 2.058620564 | 2.765121357 | 0.2053457924 | 0.07379391407 | 0.4026258536 | 0.0009950474694 | 0.0008690451253 | 0.001136745636 |
| 414.0225179023379 | 595.1850450172394 | 1.155602417 | 0.9954193829 | 1.375358767 | 5.49404182e-19 | 0 | 0.003670899984 | 0.001408106626 | 0.001243068056 | 0.001580441499 |
