Cluster
PSZ2G340.94+35.07
Emission Measure Profiles

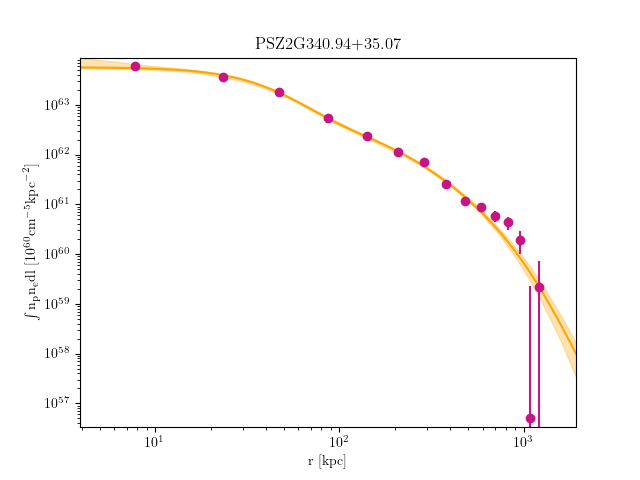

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G340.94+35.07_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.491195645749782 | 4.183990253 | 0.9193962356 | 0.0004156773886000219 | 0.0003704255292000195 | 0.0004644714559000245 |
| 8.491195645749782 | 16.8762194796361 | 4.183990253 | 0.9193962356 | 0.0007337818839553155 | 0.0006727618712181007 | 0.0007983809371567605 |
| 16.8762194796361 | 34.17315828281398 | 4.788522093 | 0.6501006077 | 0.0015483687448464623 | 0.001457662171023805 | 0.0016427248310933312 |
| 34.17315828281398 | 59.72328050288434 | 5.806109233 | 0.4344771243 | 0.001266873547897078 | 0.001181240548280378 | 0.0013564056934149556 |
| 59.72328050288434 | 92.86785458744814 | 6.354963219 | 0.2607901696 | 0.001151004788672462 | 0.001064365483925722 | 0.0012418445486879087 |
| 92.86785458744814 | 132.94814898410613 | 6.502326841 | 0.1133374834 | 0.0009751404012163665 | 0.0008933407593492371 | 0.001061115835243241 |
| 132.94814898410613 | 179.3054321404594 | 6.43459387 | 0.01131873292 | 0.000981882114271375 | 0.0008940555191557719 | 0.0010741853686735499 |
| 179.3054321404594 | 231.28097250410872 | 6.235486548 | 1 | 0.0005300678088419551 | 0.0004671521163420261 | 0.0005966935804586775 |
| 231.28097250410872 | 288.21603852265497 | 5.950086122 | 1 | 0.0003398386498039182 | 0.0002808689237132313 | 0.0004029659692145256 |
| 288.21603852265497 | 349.4518986436994 | 5.611670081 | 1 | 0.00033144428763960925 | 0.0002661689828342492 | 0.0004011441170670078 |
| 349.4518986436994 | 414.32982131484243 | 5.508628969 | 1 | 0.0002852554319516893 | 0.00021580039394884144 | 0.00035952762142587306 |
| 414.32982131484243 | 482.19107498368516 | 5.508628969 | 1 | 0.0002583148406035361 | 0.00018676095469556962 | 0.0003346584025396018 |
| 482.19107498368516 | 552.3769280978286 | 5.508628969 | 1 | 0.00013800554194173383 | 7.304878098915533e-05 | 0.00020754517630774713 |
| 552.3769280978286 | 624.2286491048737 | 5.508628969 | 1 | 4.080286187899572e-08 | 0.0 | 3.656084316856981e-05 |
| 624.2286491048737 | 697.0875064524212 | 5.508628969 | 1 | 2.0596792373989604e-05 | 0.0 | 9.620603739787861e-05 |
Temperature Profiles

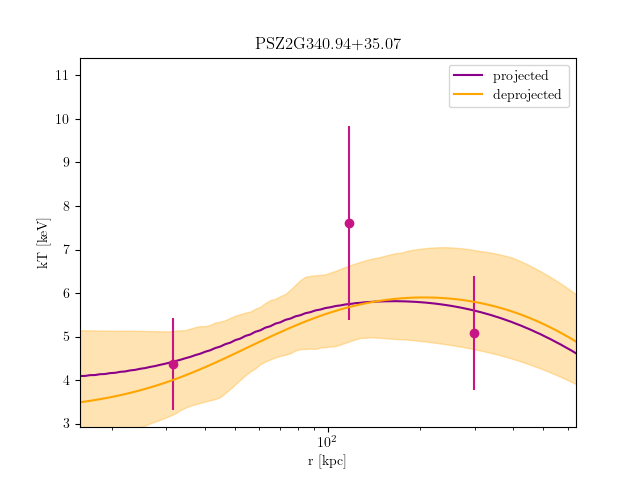

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G340.94+35.07_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 34.17315828281315 | 4.378081785 | 3.955138672 | 4.973381395 | 0.947849059 | 0.6727439515 | 1.308763778 | 0.002589041666 | 0.002350105454 | 0.002826673087 |
| 34.17315828281315 | 92.86785458744588 | 7.605114009 | 5.888157302 | 9.950180798 | 0.2327223289 | 0 | 0.4881558724 | 0.002378357518 | 0.002195928835 | 0.002578131232 |
| 92.86785458744588 | 231.2809725041031 | 5.078953625 | 4.236343604 | 6.087631943 | 5.813836968e-10 | 0 | 0.04772382318 | 0.002836562261 | 0.002591718497 | 0.003096177823 |
