Cluster
PSZ2G341.44-40.19
Emission Measure Profiles

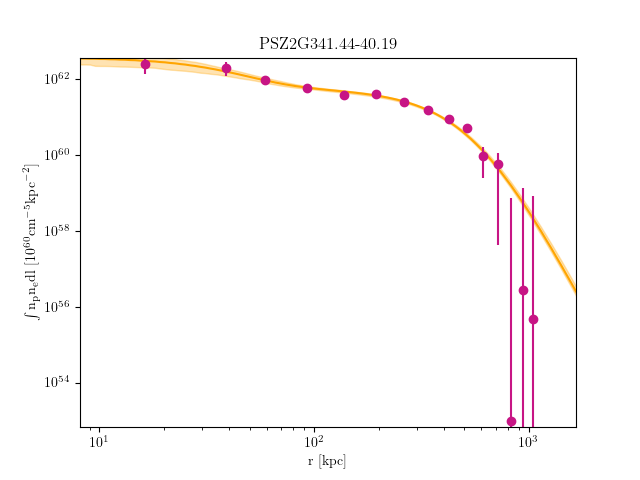

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G341.44-40.19_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 16.86219940463814 | 3.07824636 | 1.10631441 | 7.284604736000424e-05 | 4.667529405000272e-05 | 0.00010659352550000621 |
| 16.86219940463814 | 23.638595563825973 | 3.07824636 | 1.10631441 | 5.743852897000336e-05 | 3.7516764990002196e-05 | 8.241685434000482e-05 |
| 23.638595563825973 | 37.61719741321825 | 3.07824636 | 1.10631441 | 8.591838433000487e-05 | 6.642806530000378e-05 | 0.00010842605550000617 |
| 37.61719741321825 | 58.26564797327087 | 3.07824636 | 1.10631441 | 0.00012047667900000645 | 0.00010109035430000541 | 0.00014186462040000758 |
| 58.26564797327087 | 85.05159026443978 | 3.137527691 | 0.8200886155 | 0.00015678211890000847 | 0.00013040798110000704 | 0.00018573167530001002 |
| 85.05159026443978 | 117.44266730718074 | 3.165419603 | 0.5927891223 | 0.0002714662447000126 | 0.00023869275870001109 | 0.0003064908786000142 |
| 117.44266730718074 | 154.90652212194982 | 3.11303769 | 0.3752376397 | 0.00026298546530001356 | 0.00023117525830001194 | 0.0002968319329000153 |
| 154.90652212194982 | 196.91079772920273 | 3.006530376 | 0.1710986525 | 0.00023800924275647239 | 0.00020436455369019977 | 0.0002738567351681057 |
| 196.91079772920273 | 242.92313714939544 | 2.863142232 | 0.01321183718 | 0.00018767435160003842 | 0.00015302607777210517 | 0.0002247379334532717 |
| 242.92313714939544 | 292.411183402984 | 2.697260778 | 1 | 0.00014026500127879073 | 0.0001140830047097527 | 0.00016809994863539076 |
| 292.411183402984 | 344.84257951042406 | 2.521626815 | 1 | 3.2248627236397275e-05 | 1.0010972852782329e-05 | 5.625668341145994e-05 |
| 344.84257951042406 | 399.6849684921716 | 2.346365927 | 1 | 2.426487449325128e-05 | 1.2560297317465165e-06 | 4.905888681569628e-05 |
| 399.6849684921716 | 456.4059933686825 | 2.178731615 | 1 | 4.9961340464660525e-12 | 0.0 | 7.567985306200286e-06 |
| 456.4059933686825 | 514.473297160413 | 2.173509736 | 1 | 1.588737736120748e-08 | 0.0 | 1.585487013544852e-05 |
| 514.473297160413 | 573.3545228878183 | 2.173509736 | 1 | 3.114118892024748e-09 | 0.0 | 1.0706440383031025e-05 |
Temperature Profiles

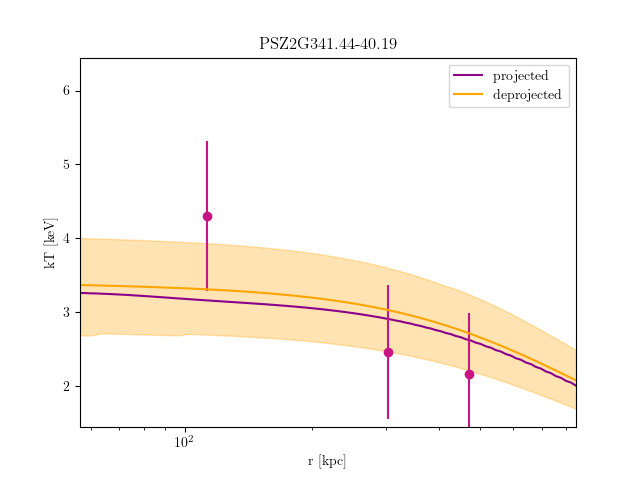

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G341.44-40.19_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 117.44266730717789 | 4.297198797 | 3.605720341 | 5.179206893 | 1.087807058 | 0.6236541238 | 1.807134596 | 0.0006451679404 | 0.0005397774224 | 0.0007503147749 |
| 117.44266730717789 | 196.91079772919792 | 2.457142008 | 1.935547803 | 3.214354543 | 7.59276873e-18 | 0 | 0.07382431166 | 0.0006362966351 | 0.0005333804906 | 0.0007674358327 |
| 196.91079772919792 | 292.4111834029769 | 2.162762866 | 1.642538285 | 2.667816971 | 2.502818874e-08 | 0 | 0.1338632565 | 0.0004755687762 | 0.0003856518424 | 0.0006047621969 |
