Cluster
PSZ2G342.51-50.97
Emission Measure Profiles

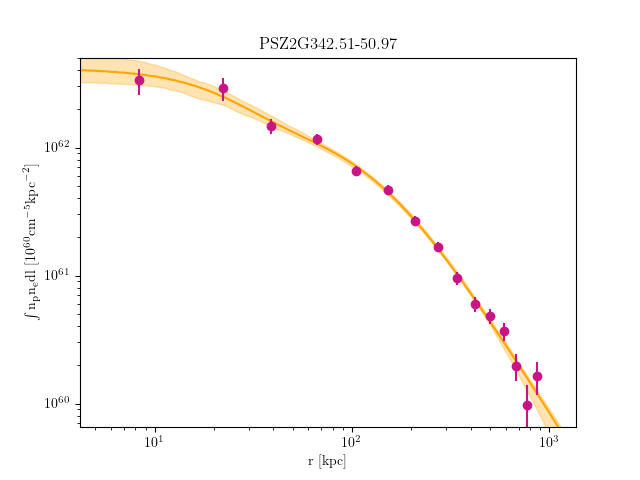

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G342.51-50.97_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 17.462165088190424 | 3.588905159 | 0.3298760367 | 0.00011910613970000621 | 9.440327000000492e-05 | 0.0001476816156000077 |
| 17.462165088190424 | 28.7810100968464 | 3.588905159 | 0.3298760367 | 0.0001776140204000057 | 0.00014543020940000466 | 0.00021412572200000686 |
| 28.7810100968464 | 52.12994425803132 | 3.588905159 | 0.3298760367 | 0.0003241351571000162 | 0.0002854358783000143 | 0.0003660363927000183 |
| 52.12994425803132 | 86.61975360030905 | 3.634666056 | 0.3244079571 | 0.0006448006205000327 | 0.0005948746272000302 | 0.0006972964148000355 |
| 86.61975360030905 | 131.3612241522435 | 3.923215142 | 0.2748505046 | 0.0007489797063000394 | 0.0006979688083000367 | 0.0008022295973000422 |
| 131.3612241522435 | 185.4651419423984 | 3.996038142 | 0.2389321754 | 0.00093236434510005 | 0.000876171451200047 | 0.0009906564329000532 |
| 185.4651419423984 | 248.0422929993378 | 3.948110431 | 0.1988829493 | 0.0008471045346000616 | 0.0007922685842000575 | 0.0009040127671000657 |
| 248.0422929993378 | 318.20346335162543 | 3.823699794 | 0.1690701644 | 0.0007750383815457483 | 0.000717890127244352 | 0.0008344693296951437 |
| 318.20346335162543 | 395.0594390278251 | 3.649380178 | 0.1398966925 | 0.0006062686333135042 | 0.0005492040222197195 | 0.0006659102865010435 |
| 395.0594390278251 | 477.72100605650104 | 3.445955377 | 0.1146515831 | 0.0005021817230336979 | 0.0004460339366027648 | 0.0005609824332000455 |
| 477.72100605650104 | 565.2989504662166 | 3.228401518 | 0.09174378821 | 0.0005125267767623172 | 0.00045081984002678975 | 0.0005771152148424301 |
| 565.2989504662166 | 656.9040582855359 | 3.004635073 | 0.07317482065 | 0.00047769528566682146 | 0.0004121095068466889 | 0.0005463772644003981 |
| 656.9040582855359 | 751.6471155430229 | 2.791202129 | 0.05975570157 | 0.0003037909222433386 | 0.00023697376811698332 | 0.0003742692712427649 |
| 751.6471155430229 | 848.6389082672417 | 2.592938223 | 0.04355553715 | 0.00017689842834558918 | 0.00010473454070595133 | 0.0002537049988803713 |
| 848.6389082672417 | 946.9902224867553 | 2.412196113 | 0.02575071857 | 0.0003369399778036055 | 0.00024428062326246625 | 0.00043508512290278467 |
Temperature Profiles

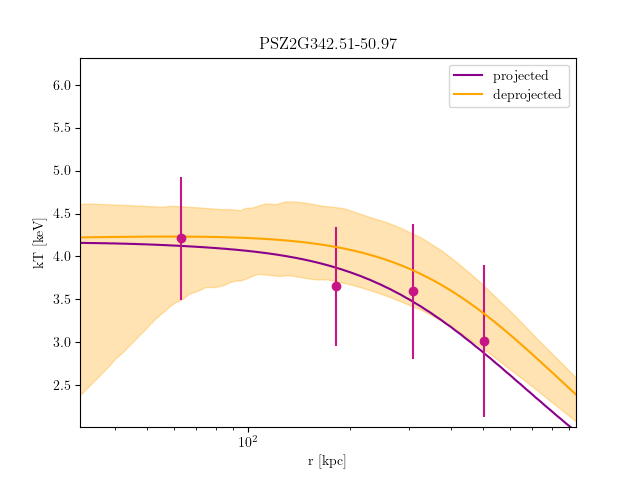

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G342.51-50.97_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 131.36122415224028 | 4.210322272 | 3.780336792 | 4.734471793 | 0.2882194488 | 0.1438780066 | 0.4773600911 | 0.001834811797 | 0.00169611384 | 0.001981149287 |
| 131.36122415224028 | 248.04229299933178 | 3.651211642 | 3.265737868 | 4.142594898 | 0.41026388 | 0.226913697 | 0.6507599318 | 0.001720659396 | 0.001569152263 | 0.001880465448 |
| 248.04229299933178 | 395.0594390278155 | 3.595475711 | 3.021167172 | 4.18806157 | 2.263914906e-09 | 0 | 0.1323901685 | 0.001497063202 | 0.001354333796 | 0.001626427471 |
| 395.0594390278155 | 656.9040582855199 | 3.018998279 | 2.481422633 | 3.902688508 | 2.470232771e-06 | 0 | 0.2405302345 | 0.001597398115 | 0.001328011271 | 0.001818957453 |
