Cluster
PSZ2G346.30-30.35
Emission Measure Profiles

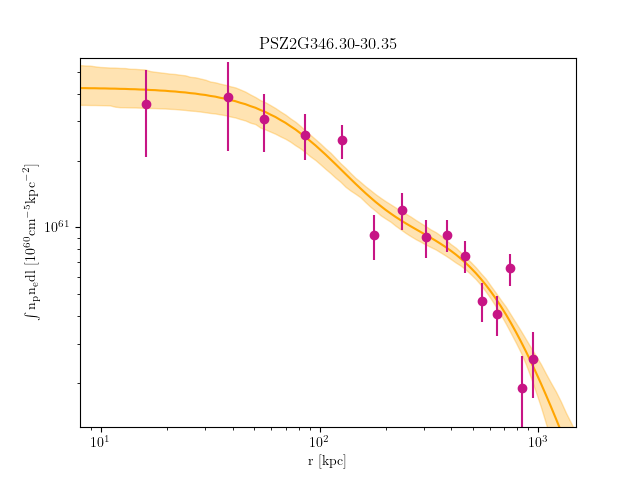

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G346.30-30.35_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 33.28857577507367 | 2.039018048 | 0.1598570917 | 4.6543104370002066e-05 | 2.964347645000132e-05 | 6.7704134340003e-05 |
| 33.28857577507367 | 45.423498235621 | 2.039018048 | 0.1598570917 | 4.3298789090001855e-05 | 2.735937001000117e-05 | 6.376962933000273e-05 |
| 45.423498235621 | 70.45586729498385 | 2.039018048 | 0.1598570917 | 0.00010469598060000713 | 7.78234689300053e-05 | 0.00013592548290000924 |
| 70.45586729498385 | 107.43235754001618 | 2.039018048 | 0.1598570917 | 0.00020162733740001175 | 0.00016138019970000943 | 0.00024669486570001443 |
| 107.43235754001618 | 155.39964355757206 | 2.077867012 | 0.1835831011 | 0.00036330809460001924 | 0.00031123022940001647 | 0.00041977604640002224 |
| 155.39964355757206 | 213.40439993450528 | 2.092332359 | 0.1960780768 | 0.00023093421620000616 | 0.00018444708300000492 | 0.00028215229400000753 |
| 213.40439993450528 | 280.49330125767 | 2.055850211 | 0.1990215309 | 0.0004649806490000239 | 0.00039275273940002017 | 0.0005431005214000279 |
| 280.49330125767 | 355.71302211392003 | 1.984508315 | 0.1941254081 | 0.0005067314780000335 | 0.0004240428703000281 | 0.0005959524625000394 |
| 355.71302211392003 | 438.1102370901094 | 1.889277833 | 0.1901425058 | 0.0007066116981640745 | 0.0006128955630779395 | 0.0008063102407673933 |
| 438.1102370901094 | 526.7316207730923 | 1.779509657 | 0.1835689901 | 0.0007466701143929807 | 0.0006459504385318157 | 0.0008534259319008297 |
| 526.7316207730923 | 620.6238477497224 | 1.663498404 | 0.1746677556 | 0.0005890923933886789 | 0.0004882926532501532 | 0.0006964226733807572 |
| 620.6238477497224 | 718.8335926068536 | 1.54789819 | 0.1714438999 | 0.0006270050233851556 | 0.0005156695063259164 | 0.0007454346523072538 |
| 718.8335926068536 | 820.4075299313403 | 1.437375016 | 0.1699965184 | 0.001195715635578553 | 0.00103515961282637 | 0.0013653221084539244 |
| 820.4075299313403 | 924.3923343100363 | 1.334804761 | 0.166299639 | 0.0004014761286728482 | 0.0002516877046406999 | 0.000564019155470216 |
| 924.3923343100363 | 1029.834680329795 | 1.241467937 | 0.1676727002 | 0.0006144127457989232 | 0.00042840977949748277 | 0.0008154810013956133 |
Temperature Profiles

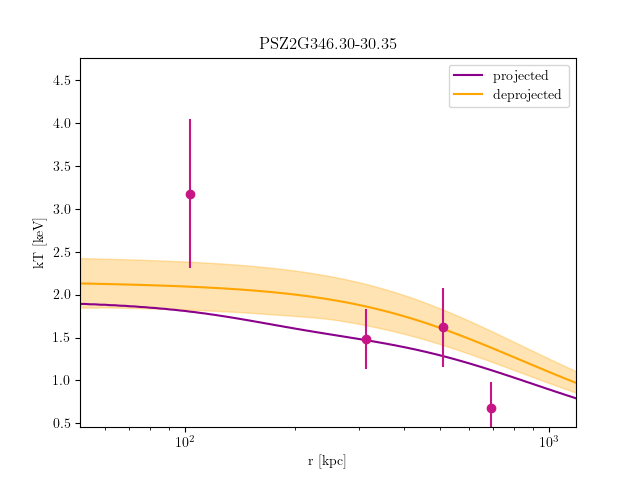

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G346.30-30.35_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 213.40439993450008 | 3.17496708 | 2.541233913 | 4.183569068 | 0.05911195703 | 0 | 0.4878745324 | 0.0008390074946 | 0.0006802060717 | 0.000999970979 |
| 213.40439993450008 | 438.11023709009874 | 1.486080171 | 1.200505026 | 1.61180266 | 3.278190848e-08 | 0 | 0.05593620028 | 0.00251352698 | 0.002081101442 | 0.002825179207 |
| 438.11023709009874 | 620.6238477497072 | 1.620379785 | 1.280674546 | 2.008975295 | 0.1087378918 | 0 | 0.5680282271 | 0.001480838339 | 0.0009503299293 | 0.002162556482 |
| 620.6238477497072 | 820.4075299313201 | 0.6834977297 | 0.5965277207 | 0.7725862897 | 0.207518466 | 0.09523661813 | 0.4410893749 | 0.003806772667 | 0.00226907488 | 0.005706226379 |
