Cluster
PSZ2G346.61+35.06
Emission Measure Profiles

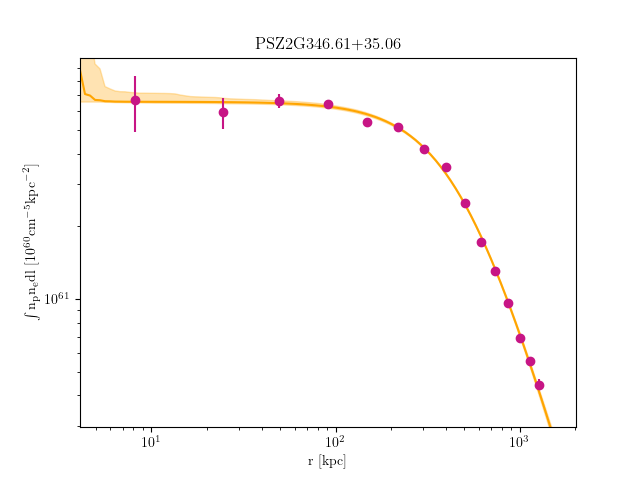

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G346.61+35.06_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 9.296738865688312 | 13.63219018 | 0.1658841359 | 5.856581774000332e-06 | 4.4175368650002506e-06 | 7.480337408000425e-06 |
| 9.296738865688312 | 18.4772336061708 | 13.63219018 | 0.1658841359 | 1.542193793000063e-05 | 1.3249136690000542e-05 | 1.7770105450000725e-05 |
| 18.4772336061708 | 37.4150993600268 | 13.63219018 | 0.1658841359 | 7.134757583000353e-05 | 6.677692545000332e-05 | 7.609685671000379e-05 |
| 37.4150993600268 | 65.38911199337252 | 13.90057004 | 0.1527668407 | 0.00018820066044762055 | 0.00018102289569265633 | 0.0001955453322227999 |
| 65.38911199337252 | 101.67804737232422 | 10.55250923 | 0.1388636405 | 0.000334730405440288 | 0.00032527445753244326 | 0.0003443475513625472 |
| 101.67804737232422 | 145.56068136299788 | 9.55145055 | 0.1299952785 | 0.0005668770519913905 | 0.0005543939876642005 | 0.0005795256885287443 |
| 145.56068136299788 | 196.31578983150996 | 9.459814004 | 0.1235216687 | 0.0007377768848574 | 0.0007234383542695127 | 0.0007522795368313624 |
| 196.31578983150996 | 253.22214864397642 | 8.851292 | 0.1163652607 | 0.0009143174027695966 | 0.000898416167616322 | 0.0009304578627557751 |
| 253.22214864397642 | 315.55853366651354 | 7.778608217 | 0.1078044129 | 0.0009062970440157808 | 0.0008900304150627636 | 0.0009228058776473841 |
| 315.55853366651354 | 382.6037207652377 | 6.450457922 | 0.09941446189 | 0.0008186059586182488 | 0.0008023841324076108 | 0.0008349974188228817 |
| 382.6037207652377 | 453.6364858062648 | 5.222557689 | 0.08998694881 | 0.0007918518568914001 | 0.0007741319011369243 | 0.0008097708110582834 |
| 453.6364858062648 | 527.935604655711 | 4.234549215 | 0.08444985412 | 0.0007194146541640371 | 0.0007001827650131197 | 0.0007388892281848732 |
| 527.935604655711 | 604.7798531796927 | 3.459183369 | 0.08029048112 | 0.0006115693368807101 | 0.0005913513684784524 | 0.0006320737779265005 |
| 604.7798531796927 | 683.4480072443265 | 2.860263672 | 0.07647366349 | 0.0005733810817968192 | 0.00055045732085781 | 0.00059667201532653 |
| 683.4480072443265 | 763.2188427157276 | 2.416002375 | 0.07394534108 | 0.0005216225639308182 | 0.0004949595034218084 | 0.0005487817646493953 |
Temperature Profiles

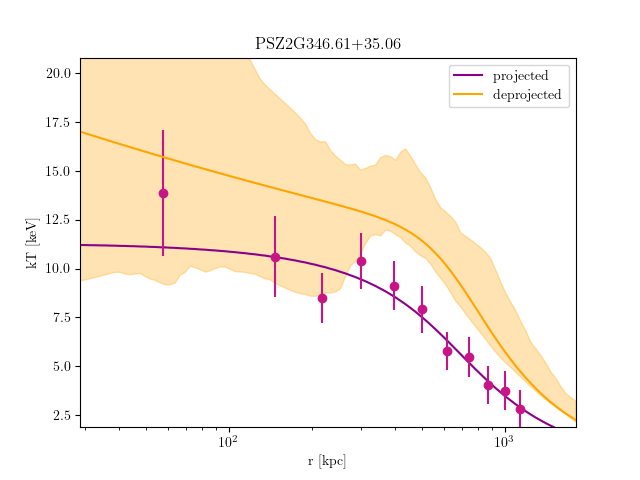

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G346.61+35.06_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 65.38911199337093 | 13.85330495 | 10.73875944 | 16.95712316 | 0.0002279762344 | 0 | 0.3190849213 | 0.0002989373973 | 0.0002764302927 | 0.0003085066995 |
| 65.38911199337093 | 101.67804737232173 | 10.61000494 | 8.908506789 | 12.65755771 | 0.1243385356 | 0 | 0.3686576671 | 0.0003356184846 | 0.0003191760227 | 0.0003509853453 |
| 101.67804737232173 | 145.56068136299433 | 8.498580063 | 7.58750569 | 9.548597098 | 0.2414941603 | 0.1023491327 | 0.3959841595 | 0.0005567598193 | 0.0005369585003 | 0.0005761685435 |
| 145.56068136299433 | 196.31578983150516 | 10.39183725 | 9.396319867 | 11.68626762 | 0.03322089905 | 0 | 0.1793998584 | 0.0007486692402 | 0.0007253337756 | 0.0007671140627 |
| 196.31578983150516 | 253.22214864397023 | 9.127277439 | 8.226018461 | 10.0457402 | 0.0114087569 | 0 | 0.1281631902 | 0.0009311228113 | 0.0009063287298 | 0.0009490559061 |
| 253.22214864397023 | 315.5585336665058 | 7.914328476 | 7.144742193 | 8.845667683 | 0.03208602448 | 0 | 0.1418884477 | 0.0009185649593 | 0.000893265856 | 0.0009403949124 |
| 315.5585336665058 | 382.6037207652284 | 5.779513009 | 5.37574843 | 6.31511783 | 0.2410624994 | 0.1321367121 | 0.3610321032 | 0.0007988100137 | 0.000770965396 | 0.0008260175624 |
| 382.6037207652284 | 453.63648580625375 | 5.462455864 | 4.971249236 | 6.08290105 | 0.03667880782 | 0 | 0.1511641925 | 0.0007947472601 | 0.0007645060778 | 0.0008223752047 |
| 453.63648580625375 | 527.9356046556982 | 4.06293824 | 3.661159265 | 4.590624826 | 2.258557621e-05 | 0 | 0.1054919554 | 0.0007412701186 | 0.0007026383603 | 0.0007671182613 |
| 527.9356046556982 | 604.779853179678 | 3.755807558 | 3.338772855 | 4.327206059 | 0.008761735029 | 0 | 0.1648555648 | 0.0006128227209 | 0.0005656444936 | 0.0006435373593 |
| 604.779853179678 | 683.4480072443098 | 2.836984509 | 2.455934746 | 3.251453681 | 0.02221157984 | 0 | 0.1723210848 | 0.0005922285085 | 0.0005326275479 | 0.0006477266301 |
