Cluster
PSZ2G347.17-27.36
Emission Measure Profiles

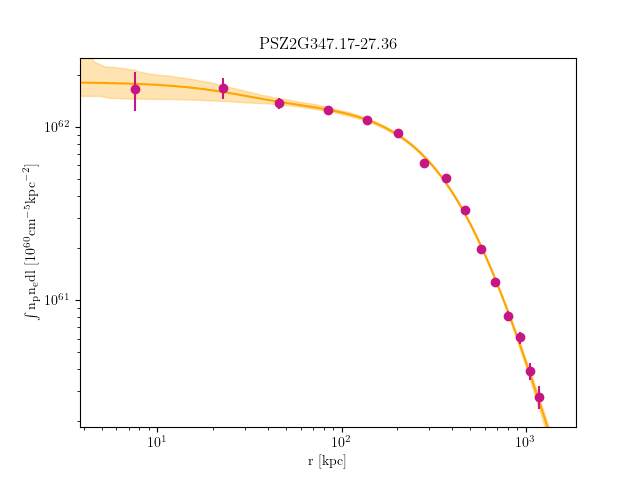

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G347.17-27.36_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 8.2229047616618 | 8.547349176 | 0.4754439652 | 1.084064327000039e-05 | 8.3361158100003e-06 | 1.3735770280000494e-05 |
| 8.2229047616618 | 16.342992354370093 | 8.547349176 | 0.4754439652 | 3.2454178520001636e-05 | 2.8155798290001418e-05 | 3.714191114000187e-05 |
| 16.342992354370093 | 33.09341083259902 | 8.547349176 | 0.4754439652 | 0.00011027123080000557 | 0.00010233367030000517 | 0.000118584007900006 |
| 33.09341083259902 | 57.83624216396988 | 7.379432601 | 0.4154468354 | 0.00027346812780001695 | 0.00026068470140001615 | 0.00028663868310001777 |
| 57.83624216396988 | 89.933568316104 | 7.136798955 | 0.3513634513 | 0.0005077253792000161 | 0.0004890090591000155 | 0.0005268837391000167 |
| 89.933568316104 | 128.74747125662256 | 8.126670202 | 0.2987177878 | 0.0007653214138183995 | 0.0007422574747532626 | 0.0007888233231369414 |
| 128.74747125662256 | 173.64003295314697 | 7.496788349 | 0.2555393545 | 0.0008134957376843366 | 0.000789778422979321 | 0.0008376357840765007 |
| 173.64003295314697 | 223.97333537329845 | 6.156135879 | 0.2223343807 | 0.000986937356806093 | 0.0009603639200992534 | 0.0010139398251261728 |
| 223.97333537329845 | 279.1094604846982 | 5.062493773 | 0.183723339 | 0.0008937390120031117 | 0.000867121891135976 | 0.000920809785750902 |
| 279.1094604846982 | 338.4104902549679 | 4.243859152 | 0.1512958435 | 0.000699709670989343 | 0.0006741161940473431 | 0.000725798817657661 |
| 338.4104902549679 | 401.23850665172836 | 3.582312054 | 0.1238706821 | 0.0005726026880802966 | 0.0005471135736981122 | 0.000598647564015416 |
| 401.23850665172836 | 466.95559164260106 | 3.056924647 | 0.1064668155 | 0.0004509869700318086 | 0.00042580320518714575 | 0.0004767860793192057 |
| 466.95559164260106 | 534.9238271952073 | 2.639278073 | 0.08855940062 | 0.00040265873702878503 | 0.00037294997030929355 | 0.0004332229894484673 |
| 534.9238271952073 | 604.5052952771686 | 2.310475992 | 0.07199591028 | 0.0003012890233140326 | 0.00026908257336075424 | 0.0003345968187801403 |
| 604.5052952771686 | 675.0620778561056 | 2.037909577 | 0.05999523918 | 0.00024271329989680114 | 0.00020631602492663645 | 0.0002805786404074118 |
Temperature Profiles

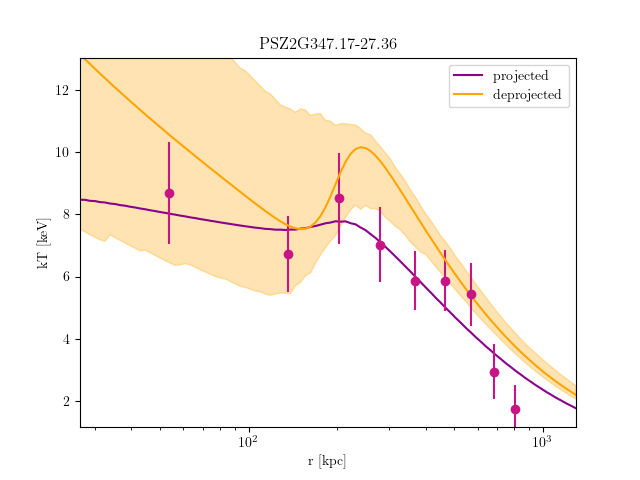

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G347.17-27.36_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 57.83624216396847 | 8.696905983 | 7.420595675 | 10.38649536 | 0.6032001888 | 0.3444842066 | 0.9374876085 | 0.0004552961123 | 0.000425260231 | 0.0004844371841 |
| 57.83624216396847 | 89.93356831610181 | 6.733547297 | 5.846569256 | 7.825668963 | 0.1951820277 | 0.04259574826 | 0.3824054134 | 0.0005287117125 | 0.0004992222634 | 0.0005582150034 |
| 89.93356831610181 | 128.74747125661943 | 8.512601445 | 7.400977337 | 9.969716063 | 0.257060984 | 0.08563304468 | 0.4487970581 | 0.0007694373701 | 0.0007339122401 | 0.0008043436989 |
| 128.74747125661943 | 173.64003295314274 | 7.03159834 | 6.132885672 | 8.061045321 | 0.1929582218 | 0.05177973641 | 0.3527452298 | 0.0008290418633 | 0.0007923327621 | 0.0008652749108 |
| 173.64003295314274 | 223.973335373293 | 5.872307955 | 5.359640243 | 6.618849819 | 0.1349667145 | 0.02720855917 | 0.2591189934 | 0.001014187608 | 0.0009718303373 | 0.001055954773 |
| 223.973335373293 | 279.1094604846914 | 5.872836347 | 5.224271882 | 6.601524285 | 0.1229739265 | 0.003742372864 | 0.263673773 | 0.0008869005913 | 0.0008450040874 | 0.000928960804 |
| 279.1094604846914 | 338.4104902549596 | 5.426753786 | 4.805694411 | 6.22764999 | 0.3897210136 | 0.1952565595 | 0.6227389049 | 0.0006296521383 | 0.0005883991817 | 0.0006709577162 |
| 338.4104902549596 | 401.2385066517186 | 2.942014125 | 2.436856161 | 3.461877698 | 0.1730505106 | 0.002056179909 | 0.4026646352 | 0.0005925103399 | 0.0005209828491 | 0.0006914504699 |
| 401.2385066517186 | 466.9555916425897 | 1.73084814 | 1.48986923 | 2.057749476 | 0.01840779961 | 0 | 0.1100374447 | 0.0006283915837 | 0.0005289929485 | 0.0007262355116 |
