Cluster
PSZ2G348.43-25.50

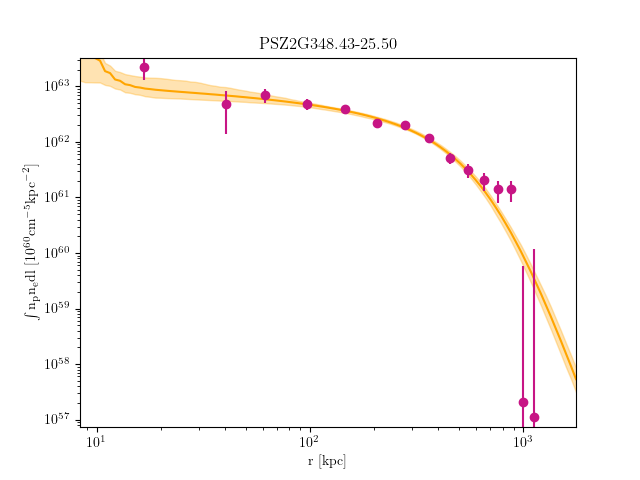

Emission Measure Profiles
Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G348.43-25.50_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 17.33192344072771 | 5.18363603 | 0.3546053622 | 0.00025145780530001885 | 0.00016376073620001227 | 0.0003644799672000274 |
| 17.33192344072771 | 24.57217032274417 | 5.18363603 | 0.3546053622 | 5.470763811000291e-05 | 2.371295438000126e-05 | 0.00010043193420000535 |
| 24.57217032274417 | 39.507620682709856 | 5.18363603 | 0.3546053622 | 0.00025207268610001485 | 0.00019446645590001145 | 0.00031879248010001875 |
| 39.507620682709856 | 61.56947720259342 | 5.30428972 | 0.3694571796 | 0.0004087182070000089 | 0.00034376195150000746 | 0.0004804882849000105 |
| 61.56947720259342 | 90.18894256436357 | 5.590901467 | 0.3676282427 | 0.0006437378126000241 | 0.0005647229324000212 | 0.0007287834284000272 |
| 90.18894256436357 | 124.79721944998886 | 5.651705339 | 0.3605486861 | 0.000614609688700029 | 0.0005339582555000252 | 0.000701517943800033 |
| 124.79721944998886 | 164.82551054143806 | 5.584326498 | 0.3478581985 | 0.0008882418554000474 | 0.0007930911944000423 | 0.0009891459091000527 |
| 164.82551054143806 | 209.70501852067977 | 5.404122149 | 0.3404838455 | 0.0007505022898000367 | 0.0006574243389000322 | 0.0008495001035000416 |
| 209.70501852067977 | 258.8669460696826 | 5.146920923 | 0.3208931284 | 0.0004537148335761984 | 0.00036882869845867347 | 0.0005449362577055191 |
| 258.8669460696826 | 311.74249587041544 | 4.849070882 | 0.3288964415 | 0.00035728402298113325 | 0.00027166728798798135 | 0.0004494599456713078 |
| 311.74249587041544 | 367.76287060484674 | 4.533411698 | 0.3293166815 | 0.0002982895955722165 | 0.00020385066821274772 | 0.0004007750756056799 |
| 367.76287060484674 | 426.35927295494514 | 4.309676158 | 0.3306787845 | 0.00024984240865973155 | 0.00015106064356414325 | 0.0003566723706034696 |
| 426.35927295494514 | 486.96290560267926 | 4.309676158 | 0.3306787845 | 0.000294685999341225 | 0.0001866179416438792 | 0.0004109364941794595 |
| 486.96290560267926 | 549.0049712300183 | 4.309676158 | 0.3306787845 | 5.037882980899798e-08 | 0.0 | 2.801817521314458e-05 |
| 549.0049712300183 | 611.91667251893 | 4.309676158 | 0.3306787845 | 3.056118726438633e-08 | 0.0 | 6.671280420466985e-05 |

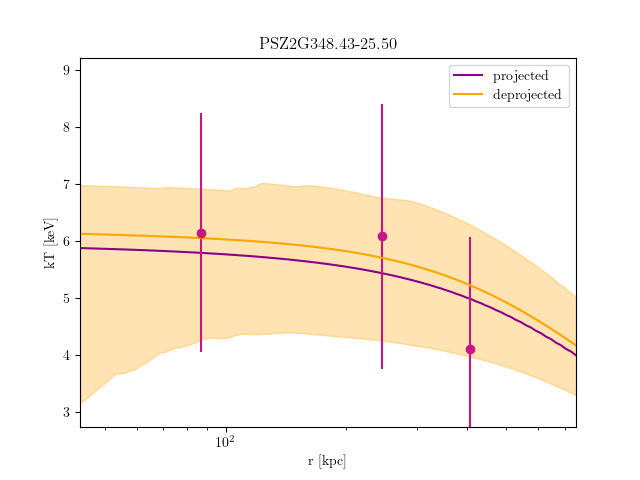

Temperature Profiles
Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G348.43-25.50_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 90.18894256436137 | 6.146400149 | 5.000474059 | 7.958778641 | 0.2779804644 | 0.04318759691 | 0.6100043585 | 0.001561020406 | 0.001314852667 | 0.0018185184 |
| 90.18894256436137 | 164.82551054143403 | 6.079074635 | 4.563664364 | 8.141153385 | 0.1615311202 | 0 | 0.4212708662 | 0.001540429275 | 0.00130141881 | 0.001863835771 |
| 164.82551054143403 | 258.8669460696763 | 4.095552094 | 3.000623559 | 5.628952941 | 0.4361079461 | 0.1268775037 | 0.9970274868 | 0.001330059775 | 0.001098547757 | 0.001638296961 |
