Cluster
PSZ2G352.28-77.66
Emission Measure Profiles

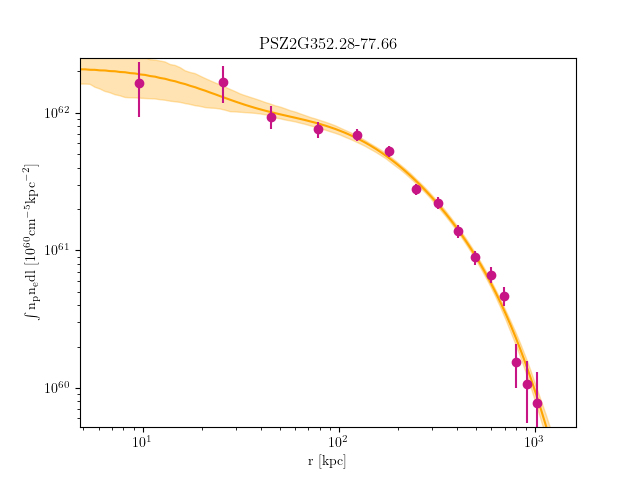

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G352.28-77.66_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 18.759255772868542 | 4.298612496 | 0.2367655753 | 6.697067015000312e-05 | 4.2369836810001975e-05 | 9.933188526000463e-05 |
| 18.759255772868542 | 31.358972964840884 | 4.298612496 | 0.2367655753 | 0.00012253966260000572 | 8.940967892000417e-05 | 0.00016246660900000757 |
| 31.358972964840884 | 57.35013787079489 | 4.298612496 | 0.2367655753 | 0.00025018282700002125 | 0.00020668382480001758 | 0.0002988765275000254 |
| 57.35013787079489 | 95.74291057732263 | 4.298612496 | 0.2367655753 | 0.0005142638006000288 | 0.0004569525059000257 | 0.0005757193215000324 |
| 95.74291057732263 | 145.5474511710162 | 4.390361547 | 0.2345230612 | 0.0009654879645000487 | 0.000890489283800045 | 0.0010441242920000526 |
| 145.5474511710162 | 205.77391973846758 | 4.489754807 | 0.2375102075 | 0.0012799906200000682 | 0.0011948418300000636 | 0.001368589885000073 |
| 205.77391973846758 | 275.432476366269 | 4.438543105 | 0.2390561486 | 0.0010771553242542237 | 0.0009950751776312916 | 0.0011627296971769582 |
| 275.432476366269 | 353.53328114101225 | 4.303275628 | 0.2365824081 | 0.0012638939693507345 | 0.0011673880092503116 | 0.0013643615372389106 |
| 353.53328114101225 | 439.0864941492896 | 4.116508973 | 0.2377980932 | 0.0010840393113865018 | 0.0009878635097977989 | 0.001184389033139494 |
| 439.0864941492896 | 531.1022754776933 | 3.893846004 | 0.2357025486 | 0.0009174724193067324 | 0.0008240315100459701 | 0.001015108581802429 |
| 531.1022754776933 | 628.590785212815 | 3.645479577 | 0.2360699045 | 0.0008693712473076284 | 0.000768095322861586 | 0.0009752896900497835 |
| 628.590785212815 | 730.5621834412469 | 3.393293598 | 0.2378103337 | 0.0007513384781412089 | 0.0006467834574239639 | 0.0008609169231369869 |
| 730.5621834412469 | 836.0266302495813 | 3.157315024 | 0.2391263887 | 0.00029497834140001914 | 0.00019528075786779168 | 0.00040096606119799133 |
| 836.0266302495813 | 943.9942857244105 | 3.157315024 | 0.2391263887 | 0.00023603492668620806 | 0.0001269103697515743 | 0.00035248674569183315 |
| 943.9942857244105 | 1053.4753099523255 | 3.157315024 | 0.2391263887 | 0.00019615318071260912 | 7.000159755330286e-05 | 0.0003311356613784815 |
Temperature Profiles

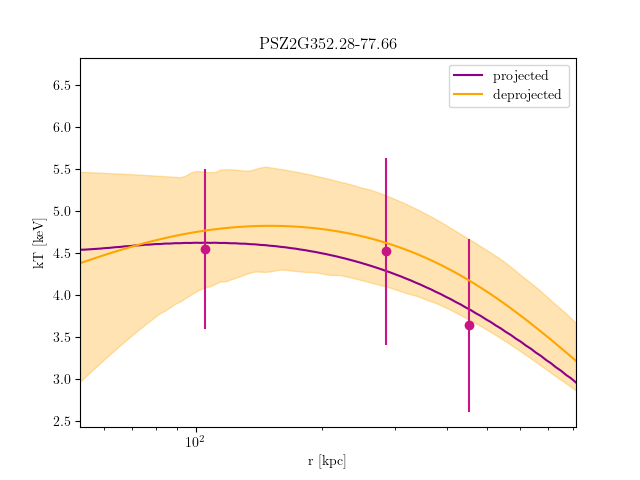

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G352.28-77.66_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 205.77391973846258 | 4.551872948 | 3.994597754 | 5.22067737 | 0.09314389937 | 0 | 0.2465975795 | 0.003229675284 | 0.00299639227 | 0.003484846672 |
| 205.77391973846258 | 353.53328114100367 | 4.520165043 | 3.846640952 | 5.516957371 | 0.5363926057 | 0.2676496763 | 0.8944063281 | 0.002130511594 | 0.001907245094 | 0.002366054776 |
| 353.53328114100367 | 531.1022754776803 | 3.639804689 | 2.958757092 | 4.417686543 | 4.888883314e-13 | 0 | 0.09390279907 | 0.002248029229 | 0.002041890692 | 0.002533621595 |
