Cluster
PSZ2G356.53+28.66
Emission Measure Profiles

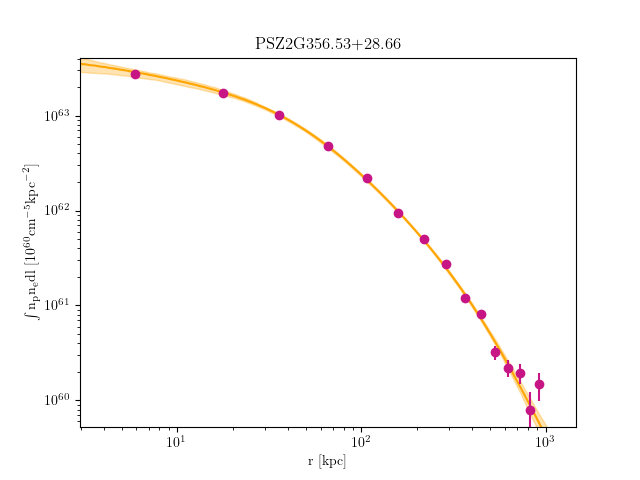

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G356.53+28.66_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 13.435760892409034 | 3.638841094 | 0.406469033 | 0.0005922837465000287 | 0.0005418669859000261 | 0.0006457360257000312 |
| 13.435760892409034 | 26.70352435109677 | 3.638841094 | 0.406469033 | 0.0011166030750000507 | 0.0010471137230000478 | 0.0011890927770000542 |
| 26.70352435109677 | 54.07275992470588 | 4.058154798 | 0.3914301723 | 0.002683147510000239 | 0.0025764789410002292 | 0.0027926991550002484 |
| 54.07275992470588 | 94.50114566005539 | 4.976917181 | 0.3576399024 | 0.003421119432000191 | 0.0033025603190001847 | 0.0035424394250001983 |
| 94.50114566005539 | 146.94635960396442 | 5.767907216 | 0.3268699535 | 0.003340070280000146 | 0.0032154070150001404 | 0.003467820708000152 |
| 146.94635960396442 | 210.36607980325178 | 6.180867672 | 0.3055822549 | 0.002548311483000159 | 0.0024354840310001516 | 0.002664331742000166 |
| 210.36607980325178 | 283.7179843047368 | 6.319417384 | 0.2840094836 | 0.002200956479117825 | 0.002091390852479864 | 0.002313861657907635 |
| 283.7179843047368 | 365.95975115523817 | 6.265223243 | 0.270754503 | 0.00176908370020321 | 0.0016674957450340494 | 0.0018740139268554406 |
| 365.95975115523817 | 456.04905840157505 | 6.03483376 | 0.2577566058 | 0.0010772174098148562 | 0.0009916837225902853 | 0.0011660629652952173 |
| 456.04905840157505 | 552.943584090567 | 5.732780737 | 0.2490291475 | 0.0009520542735918304 | 0.0008659646472701486 | 0.0010415997851683692 |
| 552.943584090567 | 655.6010062690322 | 5.383630985 | 0.2339069972 | 0.0004776373892462649 | 0.00040123899730108085 | 0.0005577358410374973 |
| 655.6010062690322 | 762.9790029837901 | 5.020691157 | 0.2224494833 | 0.00040524301387270475 | 0.0003231588347004375 | 0.0004913854615154846 |
| 762.9790029837901 | 874.0352522816597 | 4.672500851 | 0.213177566 | 0.0004283540242839538 | 0.00033252114241456035 | 0.0005290051640746957 |
| 874.0352522816597 | 987.7274322094605 | 4.341048646 | 0.2041155575 | 0.00019892293307994784 | 9.361928719854979e-05 | 0.0003109847035556508 |
| 987.7274322094605 | 1103.0132208140103 | 4.291691716 | 0.2029829882 | 0.000425661748162791 | 0.0002935965667667796 | 0.0005657279416993835 |
Temperature Profiles

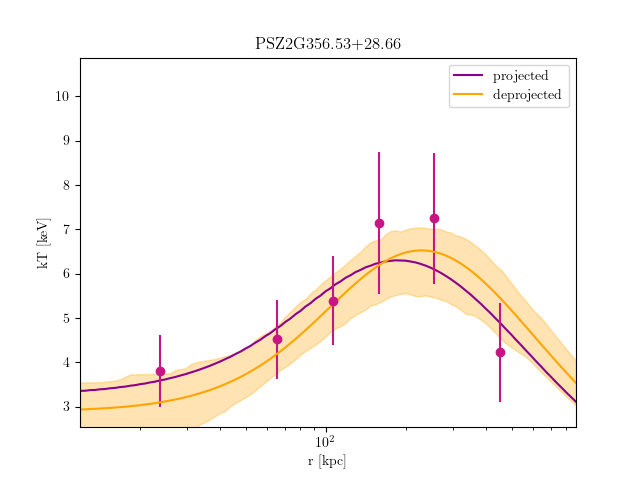

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G356.53+28.66_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 54.07275992470456 | 3.801973711 | 3.536885943 | 4.122216351 | 0.3829244128 | 0.2532604385 | 0.5416720162 | 0.004445633547 | 0.00417347538 | 0.004721451775 |
| 54.07275992470456 | 94.50114566005307 | 4.513252596 | 4.063717559 | 5.04201756 | 0.244432929 | 0.1266983632 | 0.3907572231 | 0.003645929098 | 0.003424465443 | 0.003878640243 |
| 94.50114566005307 | 146.94635960396084 | 5.388879977 | 4.781789774 | 6.10193544 | 0.417048118 | 0.2521246916 | 0.6220546449 | 0.003316626768 | 0.00310155765 | 0.003542192677 |
| 146.94635960396084 | 210.36607980324663 | 7.143688764 | 6.180354023 | 8.997984836 | 0.5513259111 | 0.303367972 | 0.8765531741 | 0.00235444641 | 0.002166823381 | 0.002540130426 |
| 210.36607980324663 | 365.95975115522924 | 7.247197466 | 6.271807933 | 8.831378364 | 0.3182372799 | 0.1337049783 | 0.5485893671 | 0.003829611568 | 0.003584849519 | 0.004077580851 |
| 365.95975115522924 | 655.6010062690162 | 4.222259523 | 3.452401342 | 5.120574123 | 0.04799995863 | 0 | 0.3124718053 | 0.002855899713 | 0.002552533541 | 0.003185459394 |
