Cluster
PSZ2G358.21-87.49
Emission Measure Profiles

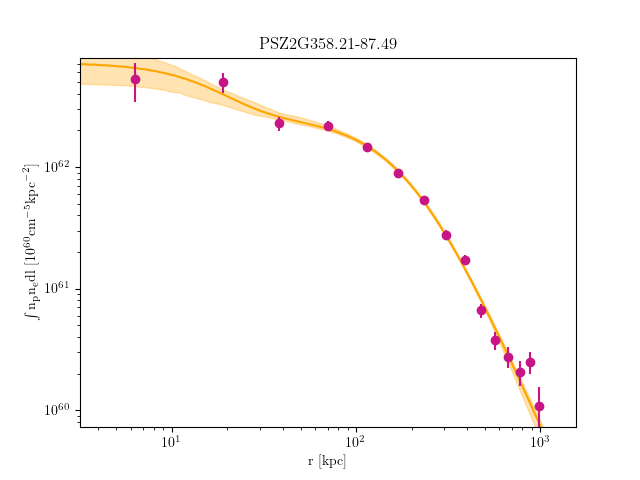

Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G358.21-87.49_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 13.046199858461774 | 3.586763586 | 0.1368862816 | 0.0001131030228000058 | 7.853715458000403e-05 | 0.000156306845800008 |
| 13.046199858461774 | 25.92927325809568 | 3.586763586 | 0.1368862816 | 0.00031450019300001853 | 0.00026012967850001534 | 0.00037591919230002216 |
| 25.92927325809568 | 52.504955880459185 | 3.586763586 | 0.1368862816 | 0.0005986464074000295 | 0.000529580487800026 | 0.0006733007095000331 |
| 52.504955880459185 | 91.76114721059422 | 3.596591552 | 0.1379278071 | 0.001552212656225025 | 0.001446971146844827 | 0.0016622867146536605 |
| 91.76114721059422 | 142.68574673354271 | 3.923107989 | 0.1463720536 | 0.0021910692220729966 | 0.002075319313098636 | 0.0023108400133751397 |
| 142.68574673354271 | 204.26665393434644 | 4.01337385 | 0.1469810917 | 0.0024134456035832153 | 0.0022879954738928405 | 0.0025430692530358017 |
| 204.26665393434644 | 275.49176829804736 | 3.970985084 | 0.1463006833 | 0.0023028409818703914 | 0.0021799388397252283 | 0.0024298142981768072 |
| 275.49176829804736 | 355.34898930968745 | 3.847673727 | 0.1504057521 | 0.001756384149619018 | 0.0016463603158852465 | 0.0018704169159139369 |
| 355.34898930968745 | 442.8262164543084 | 3.671319138 | 0.151373819 | 0.0015143218437131466 | 0.0014086637215703732 | 0.0016240105467532123 |
| 442.8262164543084 | 536.9113492169524 | 3.46252557 | 0.1539740189 | 0.0007680959941442399 | 0.0006822440171716492 | 0.000858304337980917 |
| 536.9113492169524 | 636.5922870826613 | 3.238620502 | 0.1558312842 | 0.0005507028390988475 | 0.00046723837298652353 | 0.0006390983037560183 |
| 636.5922870826613 | 740.8569295364765 | 3.01360837 | 0.1589934991 | 0.0004969075047432139 | 0.00040804526419636433 | 0.0005910717818355121 |
| 740.8569295364765 | 848.6931760634405 | 2.797641182 | 0.1624929941 | 0.0004430123865236887 | 0.00034809091871584077 | 0.0005438896538516394 |
| 848.6931760634405 | 959.0889261485955 | 2.596592764 | 0.1645748286 | 0.0006283243302817372 | 0.000509387274077882 | 0.0007543891410287816 |
| 959.0889261485955 | 1071.0320792769821 | 2.413551167 | 0.1669514165 | 0.0003107802318943792 | 0.00018119338195173094 | 0.0004508085945715091 |
Temperature Profiles

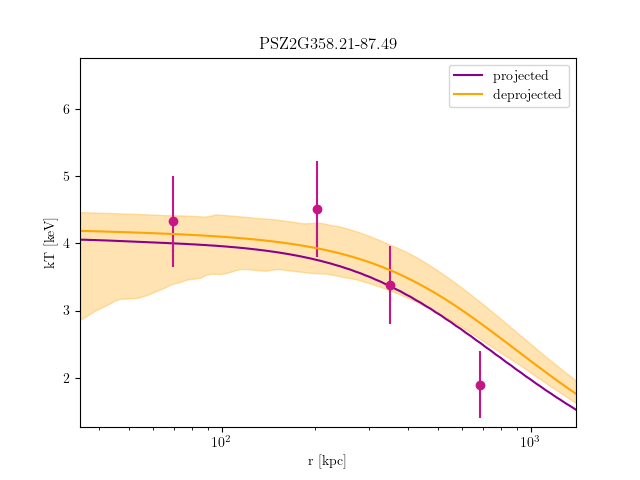

Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G358.21-87.49_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 142.68574673353922 | 4.325997429 | 3.880751663 | 4.905826529 | 0.0636515865 | 0 | 0.1867687107 | 0.004519112165 | 0.004234875373 | 0.004821047273 |
| 142.68574673353922 | 275.4917682980407 | 4.50740437 | 4.008262216 | 5.123673443 | 1.629732322e-15 | 0 | 0.02195527906 | 0.004701834997 | 0.004435391596 | 0.005001824635 |
| 275.4917682980407 | 442.82621645429765 | 3.382304924 | 3.040690297 | 3.795628527 | 0.4966269081 | 0.2673767357 | 0.8000977594 | 0.003000691174 | 0.002673975622 | 0.003344472685 |
| 442.82621645429765 | 959.0889261485722 | 1.900187593 | 1.627672082 | 2.053485632 | 9.727065629e-14 | 0 | 0.03303123191 | 0.004164987243 | 0.003639266954 | 0.004551154983 |
