Cluster
PSZ2G358.98-67.26

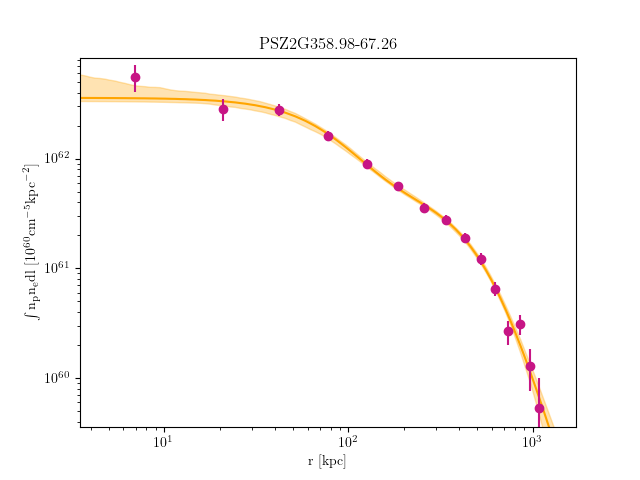

Emission Measure Profiles
Here is the best-fit emission measure profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G358.98-67.26_SB.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | Z | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|
| 0.0 | 9.410138132993774 | 4.009878922 | 0.5124490867 | 5.675276550000338e-05 | 4.279275693000255e-05 | 7.334802485000438e-05 |
| 9.410138132993774 | 18.702614224368528 | 4.009878922 | 0.5124490867 | 8.616975521000305e-05 | 6.858978160000243e-05 | 0.00010638210880000377 |
| 18.702614224368528 | 37.871479270755216 | 4.009878922 | 0.5124490867 | 0.00034729756000001494 | 0.0003105681774000134 | 0.00038669285330001664 |
| 37.871479270755216 | 66.18671182885574 | 4.02087416 | 0.5120266982 | 0.0005461634668000264 | 0.000499175611000024 | 0.0005958362201000288 |
| 66.18671182885574 | 102.91829045537204 | 4.386523522 | 0.5305097819 | 0.0006441099973110364 | 0.0005926446369890316 | 0.0006981861842630569 |
| 102.91829045537204 | 147.33619370700583 | 4.487469295 | 0.5651530099 | 0.0007183789706656716 | 0.0006629167836413545 | 0.0007764216344487755 |
| 147.33619370700583 | 198.71040014045923 | 4.44010808 | 0.6002155907 | 0.0007284271933801524 | 0.0006699390408102416 | 0.0007896192966676117 |
| 198.71040014045923 | 256.3108883124339 | 4.30234233 | 0.6298320059 | 0.0008379182295728899 | 0.0007704725026161407 | 0.0009083915207588684 |
| 256.3108883124339 | 319.4076367796319 | 4.105573352 | 0.6468495435 | 0.000789558469886843 | 0.0007233905495255779 | 0.0008587392848836821 |
| 319.4076367796319 | 387.27062409875515 | 3.872280201 | 0.6641037794 | 0.0006743941279343372 | 0.0006037147917023858 | 0.0007488040919720305 |
| 387.27062409875515 | 459.1698288265054 | 3.622017526 | 0.683242434 | 0.00045859498048325 | 0.0003954888992099878 | 0.0005253338220823509 |
| 459.1698288265054 | 534.3752295195844 | 3.370458429 | 0.7002353636 | 0.00022978216921187847 | 0.00017689929525369676 | 0.00028638523206266986 |
| 534.3752295195844 | 612.1568047346944 | 3.128915714 | 0.7154237795 | 0.00032182673072170314 | 0.00025953725259460377 | 0.000388006648706257 |
| 612.1568047346944 | 691.7845330285375 | 2.904187556 | 0.7290681068 | 0.0001542679539172228 | 9.381680639066138e-05 | 0.00021930205133864283 |
| 691.7845330285375 | 772.5283929578145 | 2.69946513 | 0.7413694126 | 7.263161406140062e-05 | 1.2062101269867118e-05 | 0.00013822551404253457 |

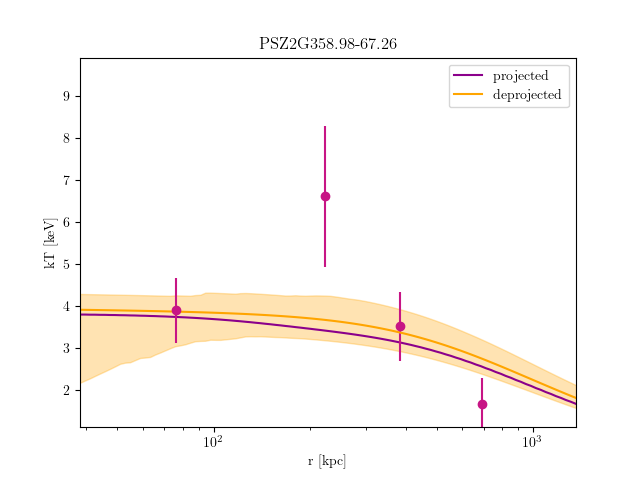

Temperature Profiles
Here is the best-fit temperature profile:
The annular profile information is given in the table below, or it is available in file format here: PSZ2G358.98-67.26_kT.data
| \(r_{\rm inner}\) (pixels) | \(r_{\rm outer}\) (pixels) | kT (keV) | kT\(_{\rm low}\) (keV) | kT\(_{\rm high}\) (keV) | Z | Z\(_{\rm low}\) | Z\(_{\rm high}\) | EM \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm low}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) | EM\(_{\rm high}\) \((\int \mathrm{n}_p \mathrm{n}_e \mathrm{dl}~[10^{60}~\mathrm{cm}^{-5}~\mathrm{kpc}^{-2}])\) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.0 | 102.91829045536953 | 3.896339587 | 3.419238521 | 4.471332341 | 0.2236662722 | 0.05592598103 | 0.4523898993 | 0.001885129746 | 0.001708038184 | 0.002075184207 |
| 102.91829045536953 | 198.71040014045437 | 6.605597229 | 5.225750792 | 8.372861417 | 0.2989438298 | 0.0352611402 | 0.6663820026 | 0.001448480253 | 0.001307403726 | 0.001593797158 |
| 198.71040014045437 | 319.4076367796241 | 3.506736091 | 3.020091813 | 4.236652607 | 8.986514905e-06 | 0 | 0.2095412476 | 0.00210459187 | 0.001866896615 | 0.002313079533 |
| 319.4076367796241 | 612.1568047346794 | 1.660733113 | 1.431606939 | 1.925436649 | 8.456387818e-19 | 0.5 | 0 | 0.003463239488 | 0.002997725029 | 0.004046513525 |
